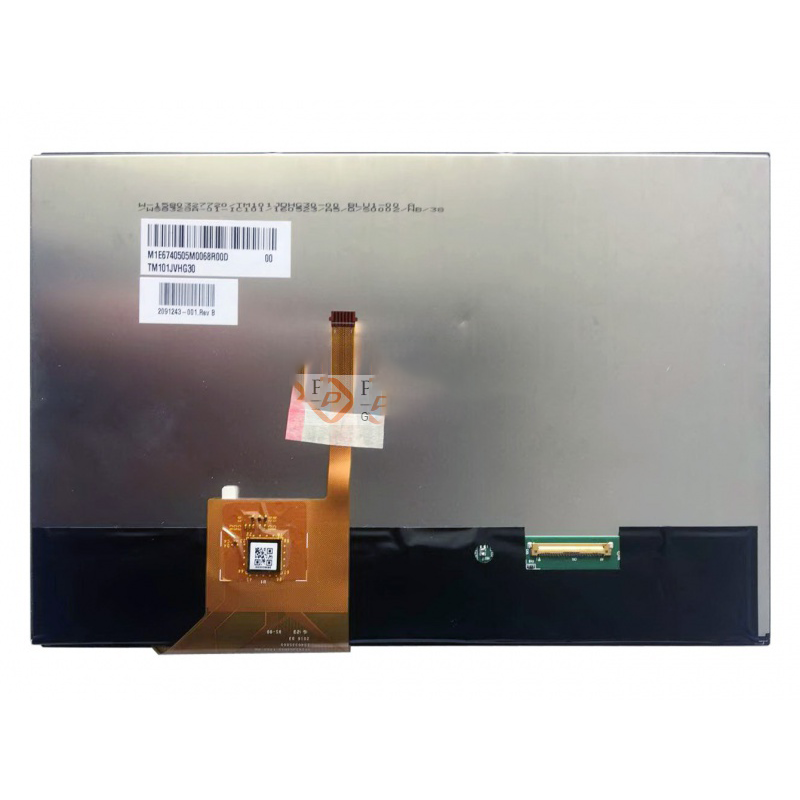

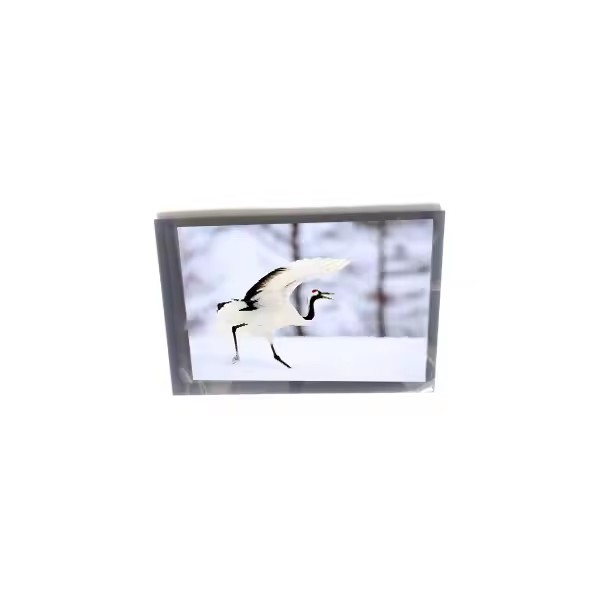

TM101JVHG30-05 TIANMA 10.1inch 1280×800 LCD DISPLAY
Parameter description：
1. Brand：TIANMA
2. Size: 10.1Inches
3. Model：TM101JVHG30-05
4. Panel type:a-Si TFT-LCD, LCM
5. Resolution：1280(RGB)×800, WXGA 149PPI
6. AA zone size:216.96(W)×135.6(H) mm
7. Overall dimensions:233.93(H)×156(V) ×8.68(D) mm
8. Brightness:430 cd/m² (Typ.)
9.Viewing Angle：85/85/85/85 (Typ.)(CR≥10)
10. Contrast ratio:800:1 (Typ.) (TM)
11. Display color:262K/16.7M 50% NTSC
12. Optical mode:SFT, Normally Black, Transmissive
13. Response speed:10/15 (Typ.)(Tr/Td)
14. Signal interface: LVDS (1 ch, 6/8-bit) , 40 pins Connector
15. Light source：WLED [6S5P] , 50K hours , With LED Driver
16. Touch:Without
17. Operating Temp.:Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C
Parameter description：
1. Brand：TIANMA
2. Size: 10.1Inches
3. Model：TM101JVHG30-05
4. Panel type:a-Si TFT-LCD, LCM
5. Resolution：1280(RGB)×800, WXGA 149PPI
6. AA zone size:216.96(W)×135.6(H) mm
7. Overall dimensions:233.93(H)×156(V) ×8.68(D) mm
8. Brightness:430 cd/m² (Typ.)
9.Viewing Angle：85/85/85/85 (Typ.)(CR≥10)
10. Contrast ratio:800:1 (Typ.) (TM)
11. Display color:262K/16.7M 50% NTSC
12. Optical mode:SFT, Normally Black, Transmissive
13. Response speed:10/15 (Typ.)(Tr/Td)
14. Signal interface: LVDS (1 ch, 6/8-bit) , 40 pins Connector
15. Light source：WLED [6S5P] , 50K hours , With LED Driver
16. Touch:Without
17. Operating Temp.:Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C
