TL079QDXP01 New and Original TIANMA 7.9inch lcd display
| Model | TL079QDXP01 | Brand | TIANMA | ||||||
| Panel Size | 7.9inch | Resolution | 1536(RGB)×2048 | ||||||
| Active Area | 119.808(W)×159.744(H) mm | Outline Size | 125.55(W)×170.95(H) mm | ||||||
| Contrast Ratio | 1000:1 (Typ.) (TM) | Brightness | 400 cd/m² (Typ.) | ||||||
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) | Response Time | 25 (Typ.)(Tr+Td) | ||||||
| Panel Type | a-si TFT-LCD , Panel | Touch Screen | Without | ||||||
| Signal Type | MIPI (2 ch, 4 data lanes) , 51 pins , Connector | Power Supply | 1.8/5.4/-5.4V (Typ.)(IOVCC/VSP/VSN) | ||||||
| About it | TL079QDXP01 New and Original TIANMA 7.9inch lcd display | ||||||||
| Shipping Method | Received days | Shipping area | Fit | ||||||
| DHL | 3-6 Days | All over the world | All | ||||||
| FEDEX | 5-7 Days | All over the world | There's no LOGO on the product. | ||||||
| UPS(Official partners) | 2-5 Days | All over the world | There's no LOGO on the product. | ||||||
| TNT | 3-6 Days | All over the world | All | ||||||
| Sweden Post | 20-35 Days | All over the world | Total Weight < 1 KG | ||||||
*The goods will be shipped within 1-3days after you paid.
*The buyer can choose DHL/FEDEX/TNT/EMS,But BRAZIL and RUSSIA Country only can use EMS.
*Buyer will be 100% responsible for any custom duty if there is any.
*The remote area need to pay the more extra USD32.00 fees.
Q2:What will happen if I give an incorrect shipping address?
A:PLEASE be certain of your address before ordering! If a package is returned to us because of an address problem, we will reship the package to you or a corrected recipient address. But you will be charged for the additional shipping fees..
Q3: Can I have refund if I reject my package when it is delivere?
A:If customer reject the package because of customs issue or other issues , we will not be responsible for arranging any refund towards the rejected package as we have fulfilled our obligation to complete and ship the orders to customers.
Q4:How do I exchange items?
A:The best way to arrange for an exchange is to contact our staff who will give you correct instructions pertaining to your particular order. Every exchange scenario can be different and there may be times when we can help you avoid unnecessary costs of sending your items back to us.

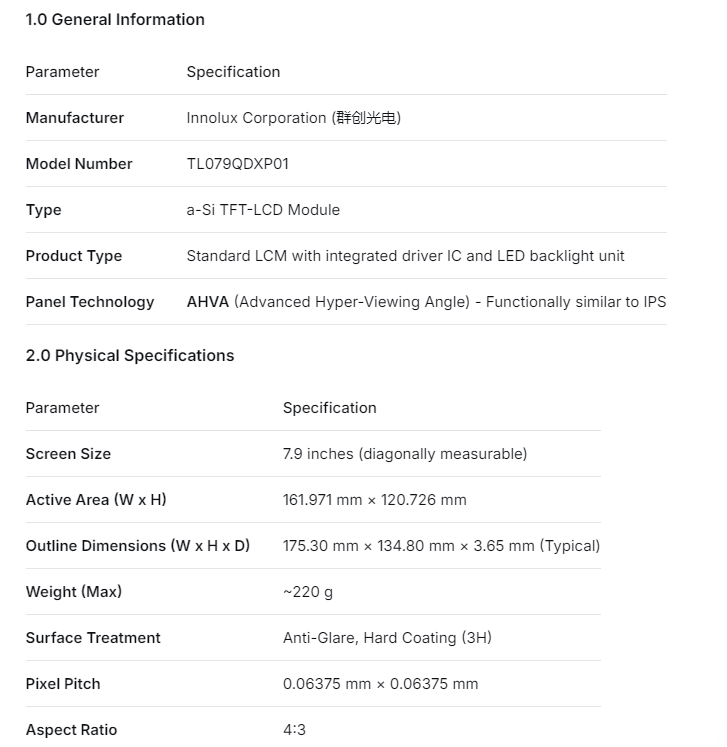

1.0 General Information
| Parameter | Specification |
|---|---|
| Manufacturer | Innolux Corporation (群创光电) |
| Model Number | TL079QDXP01 |
| Type | a-Si TFT-LCD Module |
| Product Type | Standard LCM with integrated driver IC and LED backlight unit |
| Panel Technology | AHVA (Advanced Hyper-Viewing Angle) - Functionally similar to IPS |
2.0 Physical Specifications
| Parameter | Specification |
|---|---|
| Screen Size | 7.9 inches (diagonally measurable) |
| Active Area (W x H) | 161.971 mm × 120.726 mm |
| Outline Dimensions (W x H x D) | 175.30 mm × 134.80 mm × 3.65 mm (Typical) |
| Weight (Max) | ~220 g |
| Surface Treatment | Anti-Glare, Hard Coating (3H) |
| Pixel Pitch | 0.06375 mm × 0.06375 mm |
| Aspect Ratio | 4:3 |

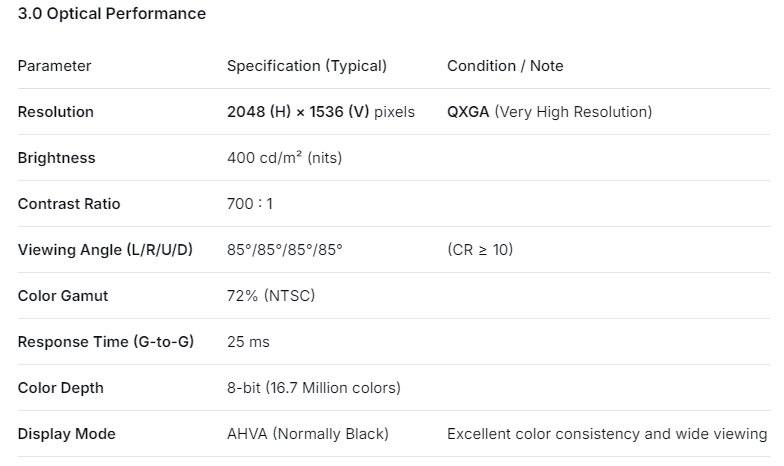

3.0 Optical Performance
| Parameter | Specification (Typical) | Condition / Note |
|---|---|---|
| Resolution | 2048 (H) × 1536 (V) pixels | QXGA (Very High Resolution) |
| Brightness | 400 cd/m² (nits) | |
| Contrast Ratio | 700 : 1 | |
| Viewing Angle (L/R/U/D) | 85°/85°/85°/85° | (CR ≥ 10) |
| Color Gamut | 72% (NTSC) | |
| Response Time (G-to-G) | 25 ms | |
| Color Depth | 8-bit (16.7 Million colors) | |
| Display Mode | AHVA (Normally Black) | Excellent color consistency and wide viewing angles. |

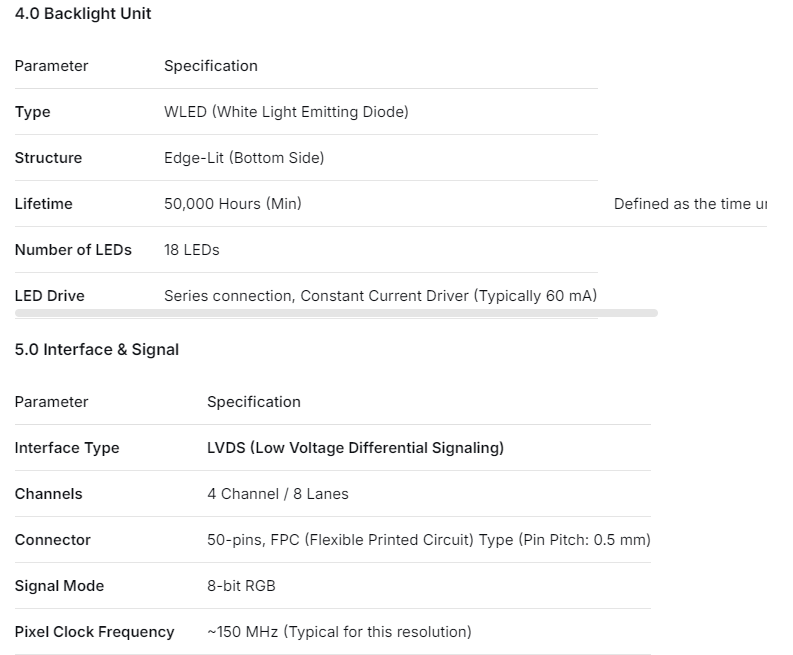

4.0 Backlight Unit
| Parameter | Specification | |
|---|---|---|
| Type | WLED (White Light Emitting Diode) | |
| Structure | Edge-Lit (Bottom Side) | |
| Lifetime | 50,000 Hours (Min) | Defined as the time until brightness decays to 50% of initial value. |
| Number of LEDs | 18 LEDs | |
| LED Drive | Series connection, Constant Current Driver (Typically 60 mA) |
5.0 Interface & Signal
| Parameter | Specification |
|---|---|
| Interface Type | LVDS (Low Voltage Differential Signaling) |
| Channels | 4 Channel / 8 Lanes |
| Connector | 50-pins, FPC (Flexible Printed Circuit) Type (Pin Pitch: 0.5 mm) |
| Signal Mode | 8-bit RGB |
| Pixel Clock Frequency | ~150 MHz (Typical for this resolution) |
6.0 Electrical Characteristics
| Parameter | Specification |
|---|---|
| Supply Voltage (VDD) | 3.3 V (Typical, for logic and source driver) |
| Supply Voltage (VLED) | 21.6 V (Typical for backlight) |
| Power Consumption (Typical) | • Panel: ~1.35 W • Backlight: ~4.32 W (at 60mA, 21.6V) • Total: ~5.67 W |
7.0 Mechanical & Environmental
| Parameter | Specification |
|---|---|
| Mounting Method | Metal frame with through-hole mounting |
| Storage Temperature | -20 °C ~ 60 °C |
| Operating Temperature | -20 °C ~ 70 °C |
| Operating Humidity | 10% ~ 90% (Non-condensing) |
8.0 Key Features & Notes
Extremely High Resolution (QXGA): The 2048x1536 resolution on a 7.9-inch screen results in a very high Pixel Density of ~324 PPI, delivering exceptionally sharp and detailed images.
AHVA/IPS Technology: Provides superior color accuracy, consistency, and wide viewing angles from all directions.
4:3 Aspect Ratio: Ideal for applications that mimic traditional paper documents or tablets, providing more vertical space.
4-Channel LVDS Interface: The high-resolution video signal requires a wide LVDS interface (4 channels) for stable data transmission.
Wide Operating Temperature: Suitable for use in various industrial and commercial environments.
