SM3316ES7 331-7PF01-0AB0 6ES7331-7PF01-0AB0

SM3316ES7 331-7PF01-0AB06ES7331-7PF01-0AB0

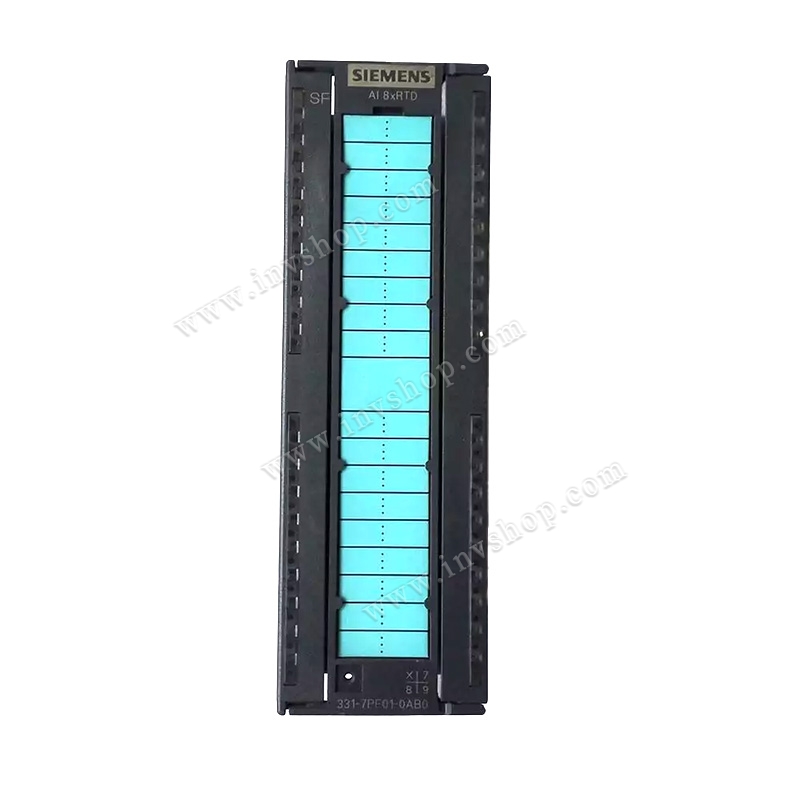

1、6ES7331-7PF01-0AB0 Product picture

2、6ES7331-7PF01-0AB0 Product advantages

(1) High-precision temperature detection:

· Multi-type thermal resistance support: compatible with Pt100, Pt200, Pt1000, Ni100, Ni120 and other thermal resistance types, suitable for different industrial temperature measurement needs.

· High-resolution conversion: 16-bit resolution (including symbol bits) and 24-bit internal resolution (Σ-Δ principle) are used to ensure the accuracy of temperature measurement and meet the requirements of precision control scenarios.

(2) Flexible channel configuration:

· 8-channel independent configuration: 4 groups of channels are provided, each group can set the measurement type and range separately, and it can be adapted to a variety of sensor layouts.

· Multi-wire system compatibility: support two-wire system, three-wire system, and four-wire thermal resistance connection method to adapt to different field wiring conditions.

(3) CReliable industrial design:

· Electrical isolation: The input channel is isolated from the backplane bus through optical coupling, which reduces the risk of electromagnetic interference and improves system stability.

· Wide temperature operation: supports the operating temperature range of -20℃ to +60℃, and is suitable for complex industrial environments.

(4) Efficient system integration:

· Fast signal processing: 50ms sampling cycle to meet the needs of high-frequency data acquisition.

· Modular expansion: Supports S7-300 series bus connection, and can work with other modules to build a large-scale control system.
