Q64AD Melsec Analog Input Module

1、Q64AD Basic features

1 Number of channels:

· The Q64AD module has 4 analog input channels, which can simultaneously collect 4 different analog signals.

2 Input signal type:

· Supports multiple types of analog inputs, common voltage signals (such as -10V to +10V, 0V to 5V, etc.) and current signals (such as 4mA to 20mA).

3 resolution：

· Generally 12 or 16 bits, the high resolution can accurately reflect the subtle changes in the analog signal, which helps to improve the measurement accuracy.

4 Conversion speed:

· The conversion speed of analog to digital is relatively fast, which can meet the needs of real-time control in industrial sites, and can convert the collected analog signals into digital quantities for PLC processing in a timely manner.

5 Isolation method:

· Optocoupler isolation is used to improve the anti-interference ability of the system.

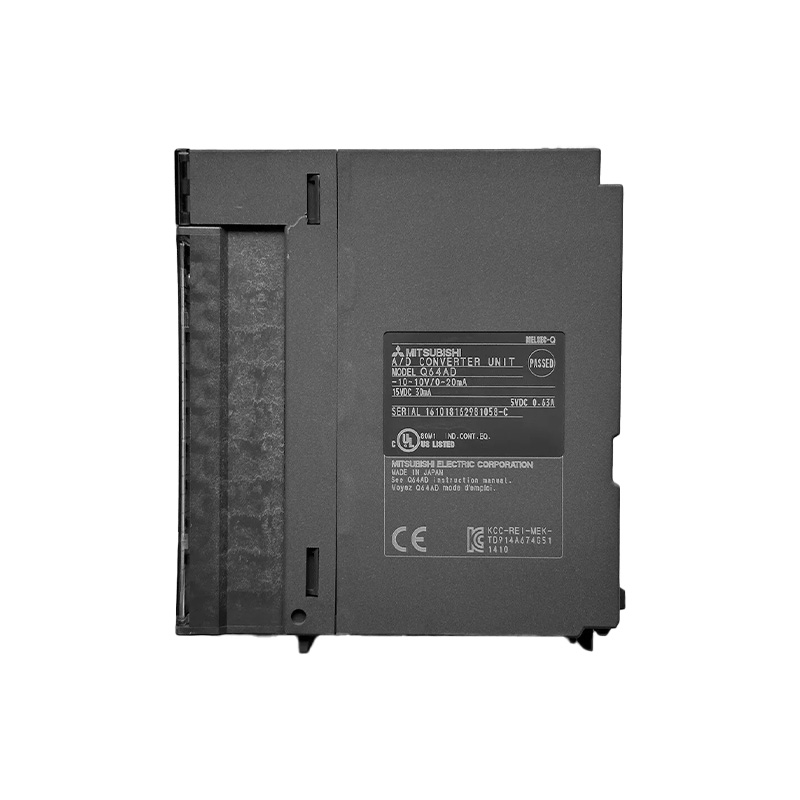

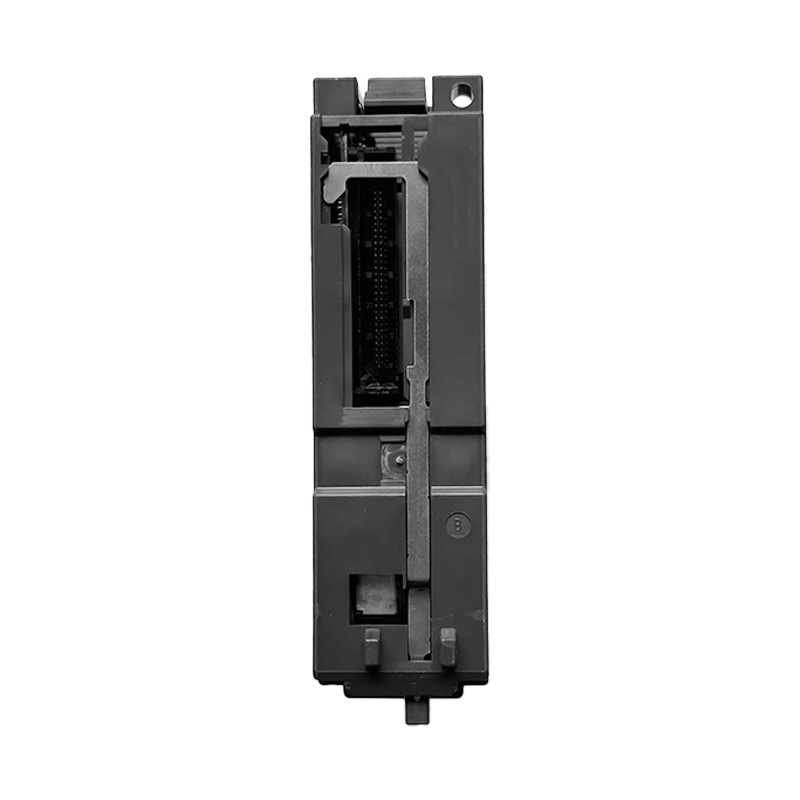

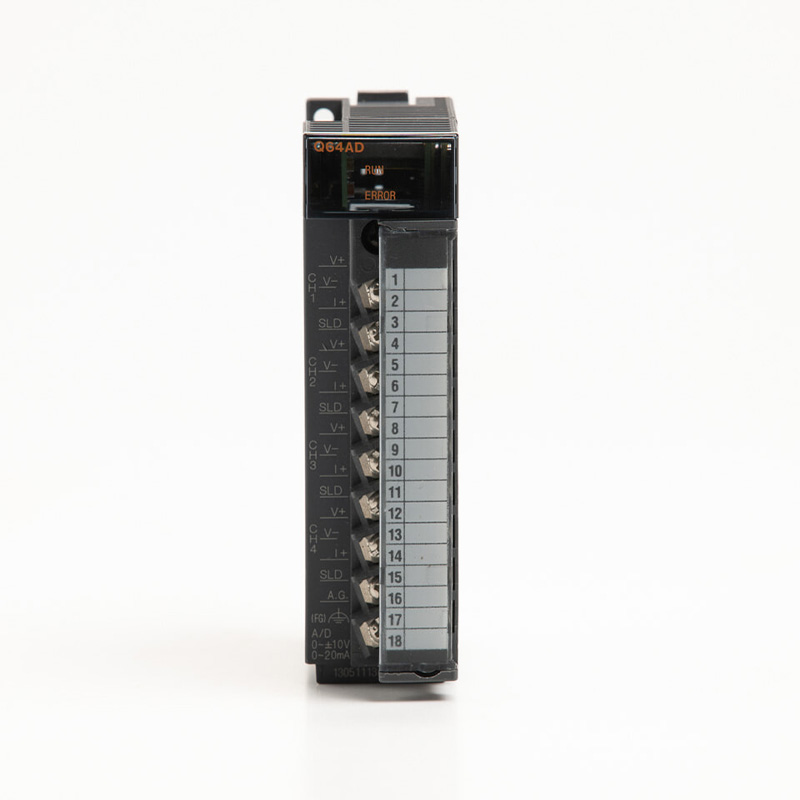

2、Q64AD Product picture
