Name: M200HJJ-L20.pdfM200HJJ-L20 Innolux 19.5 inch 1920*1080 LCD PANEL
Product Overview
Practical testing and customer feedback confirm that M200HJJ-L20 supports long-term stable operation with consistent brightness and color uniformity. Its standard mechanical dimensions and universal mounting holes enable seamless replacement for most 20-inch monitors and industrial panels. Equipped with a matte anti-glare surface (3H hard coating), M200HJJ-L20 effectively reduces ambient light reflection and enhances viewing comfort during prolonged use. Common real-world applications include industrial HMI terminals, office monitors, POS systems, information kiosks and equipment replacement, where M200HJJ-L20 operates reliably with low power consumption.
M200HJJ-L20 adopts TN normally white transmissive display technology, supporting 16.7M colors (8-bit) and 72% NTSC color gamut for natural color reproduction. It offers viewing angles of 85/85/80/80° (L/R/U/D, CR≥10), ensuring acceptable visibility from multiple perspectives. The module integrates a 30-pin LVDS (2-channel, 8-bit) signal interface, fully compatible with mainstream industrial and commercial driver boards. It uses a long-life WLED backlight with a lifespan of 40,000 hours and no built-in driver circuit. The operating temperature ranges from 0°C to 50°C, while storage temperature ranges from -20°C to 60°C, meeting basic industrial environmental requirements. These professional parameters make M200HJJ-L20 a highly reliable choice for daily industrial and commercial applications.
M200HJJ-L20 Product Specifications Table
| Model: | M200HJJ-L20 | Panel Type: | a-Si TFT-LCD, LCM |
| Size: | 19.5" | Power Supply: | 3.3/5.0V (Typ.)(VCC) |
| Pixel Number: | 1920(RGB)×1080, 16:9, FHD | Frame Rate: | 75Hz |
| Active Area: | 434.88(H)×238.68(V) mm | Contrast Ratio: | 3000:1 (Typ.) (TM) |
| Luminance: | 250 cd/m² (Typ.) | Operating Mode: | MVA, Normally Black, Transmissive |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Response Time: | 15/5 (Typ.)(Tr/Td), 25 (Typ.)(G to G) mm |
| Support Color: | 16.7M, 72% NTSC | Light Source: | 4 strings WLED, 30K hrs, Without Driver |
| Interface: | LVDS (2 ch, 8-bit), 30 pins Connector | Operating Temp: | 0 ~ 50 °C |

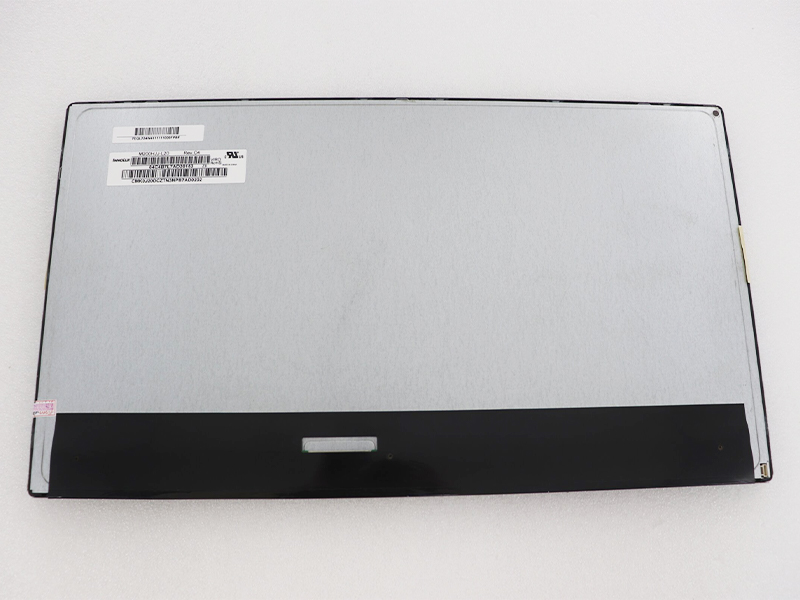

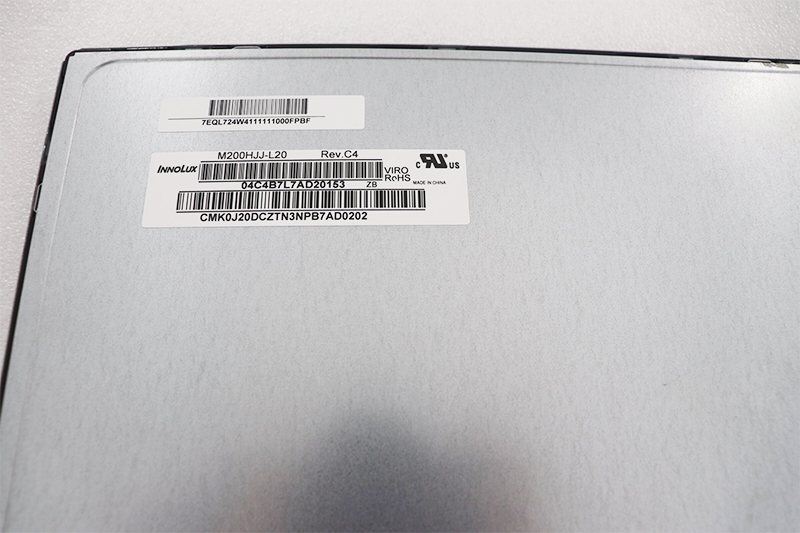

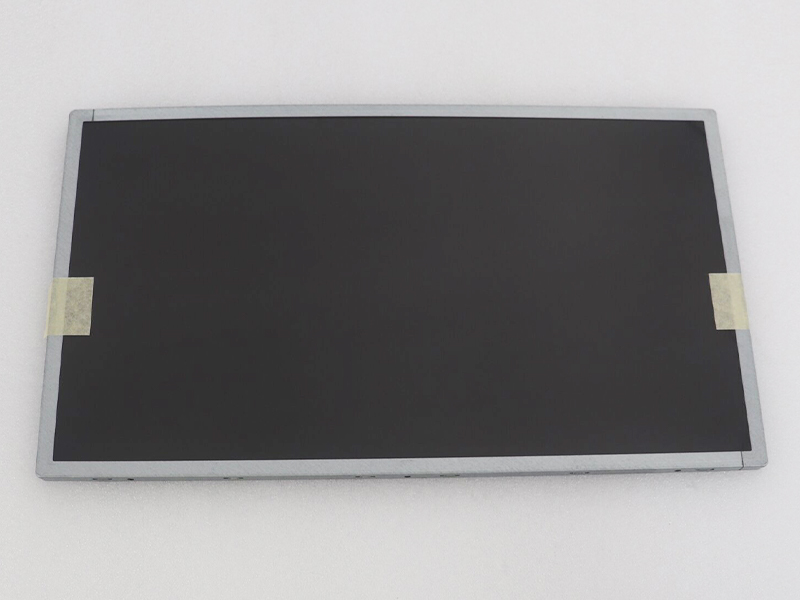

Image Display
FAQ
Q1: Is M200HJJ-L20 compatible with my 20-inch monitor?
A: Yes. M200HJJ-L20 uses standard 1920×1080 FHD timing and a 30-pin LVDS interface, with universal mechanical dimensions that fit most 20-inch desktop monitors and industrial panels.
Q2: Does M200HJJ-L20 include a backlight driver?
A: No. It is equipped with a WLED backlight but no built-in driver; a matching external backlight driver is required for normal operation.
Q3: Can M200HJJ-L20 be used for industrial HMI?
A: Yes. It supports stable long-hour operation and meets basic industrial environmental requirements, suitable for industrial HMI, POS terminals and automation equipment.
Q4: What is the service life of the backlight?
A: The typical lifespan of the WLED backlight is 40,000 hours, supporting long-term continuous use of the equipment.
Q5: How can I obtain the official datasheet?
A: Contact us to receive the complete Innolux official datasheet for M200HJJ-L20, including mechanical drawings, electrical parameters and pin definitions.
Product Applications
M200HJJ-L20 is widely used in:
M200HJJ-L20 Innolux 19.5 inch 1920*1080 LCD PANEL
Product Overview
Practical testing and customer feedback confirm that M200HJJ-L20 supports long-term stable operation with consistent brightness and color uniformity. Its standard mechanical dimensions and universal mounting holes enable seamless replacement for most 20-inch monitors and industrial panels. Equipped with a matte anti-glare surface (3H hard coating), M200HJJ-L20 effectively reduces ambient light reflection and enhances viewing comfort during prolonged use. Common real-world applications include industrial HMI terminals, office monitors, POS systems, information kiosks and equipment replacement, where M200HJJ-L20 operates reliably with low power consumption.
M200HJJ-L20 adopts TN normally white transmissive display technology, supporting 16.7M colors (8-bit) and 72% NTSC color gamut for natural color reproduction. It offers viewing angles of 85/85/80/80° (L/R/U/D, CR≥10), ensuring acceptable visibility from multiple perspectives. The module integrates a 30-pin LVDS (2-channel, 8-bit) signal interface, fully compatible with mainstream industrial and commercial driver boards. It uses a long-life WLED backlight with a lifespan of 40,000 hours and no built-in driver circuit. The operating temperature ranges from 0°C to 50°C, while storage temperature ranges from -20°C to 60°C, meeting basic industrial environmental requirements. These professional parameters make M200HJJ-L20 a highly reliable choice for daily industrial and commercial applications.
M200HJJ-L20 Product Specifications Table
| Model: | M200HJJ-L20 | Panel Type: | a-Si TFT-LCD, LCM |
| Size: | 19.5" | Power Supply: | 3.3/5.0V (Typ.)(VCC) |
| Pixel Number: | 1920(RGB)×1080, 16:9, FHD | Frame Rate: | 75Hz |
| Active Area: | 434.88(H)×238.68(V) mm | Contrast Ratio: | 3000:1 (Typ.) (TM) |
| Luminance: | 250 cd/m² (Typ.) | Operating Mode: | MVA, Normally Black, Transmissive |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Response Time: | 15/5 (Typ.)(Tr/Td), 25 (Typ.)(G to G) mm |
| Support Color: | 16.7M, 72% NTSC | Light Source: | 4 strings WLED, 30K hrs, Without Driver |
| Interface: | LVDS (2 ch, 8-bit), 30 pins Connector | Operating Temp: | 0 ~ 50 °C |
Image Display
FAQ
Q1: Is M200HJJ-L20 compatible with my 20-inch monitor?
A: Yes. M200HJJ-L20 uses standard 1920×1080 FHD timing and a 30-pin LVDS interface, with universal mechanical dimensions that fit most 20-inch desktop monitors and industrial panels.
Q2: Does M200HJJ-L20 include a backlight driver?
A: No. It is equipped with a WLED backlight but no built-in driver; a matching external backlight driver is required for normal operation.
Q3: Can M200HJJ-L20 be used for industrial HMI?
A: Yes. It supports stable long-hour operation and meets basic industrial environmental requirements, suitable for industrial HMI, POS terminals and automation equipment.
Q4: What is the service life of the backlight?
A: The typical lifespan of the WLED backlight is 40,000 hours, supporting long-term continuous use of the equipment.
Q5: How can I obtain the official datasheet?
A: Contact us to receive the complete Innolux official datasheet for M200HJJ-L20, including mechanical drawings, electrical parameters and pin definitions.
Product Applications
M200HJJ-L20 is widely used in:
