OMRON NEW AND ORIGINAL G3PE-215B DC12-24 relay

OMRON NEW AND ORIGINAL G3PE-215B DC12-24 relay

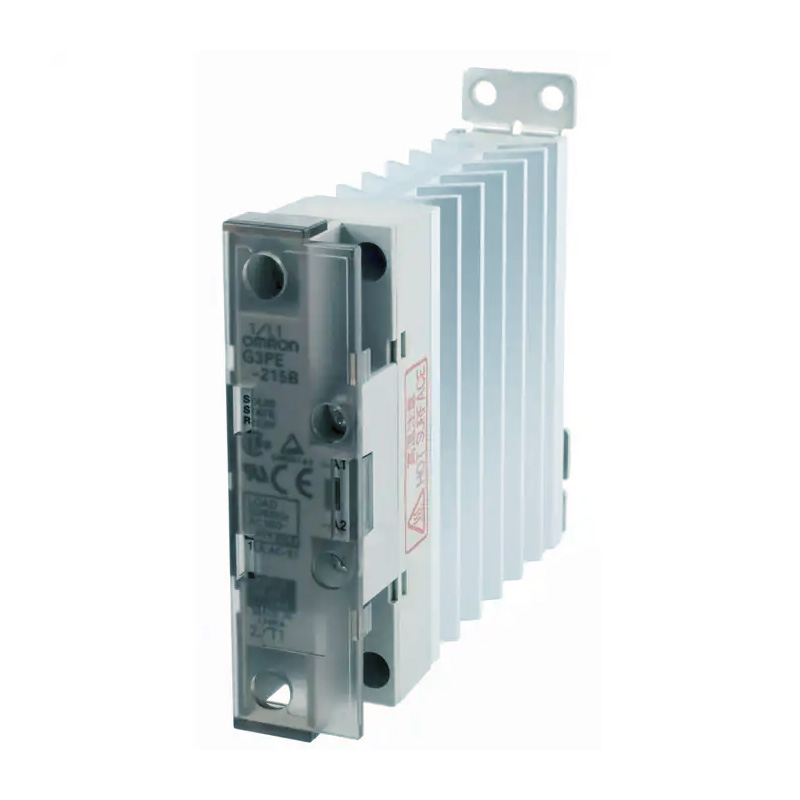

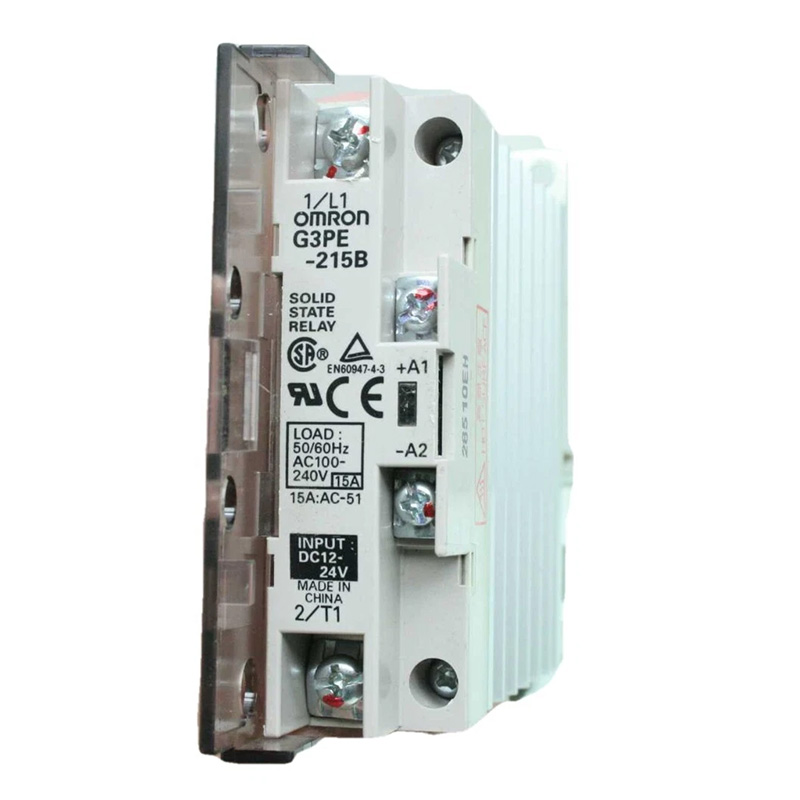

1、G3PE-215B DC12-24 Product picture

2、G3PE-215B DC12-24 Product features

· Input voltage and current: The input voltage range of the solid state relay is DC12~24V, the operating voltage range is DC9.6~30V, the rated input current is below 10mA (at DC24V), the operating voltage is below DC9.6V, and the reset voltage is above DC1V.

· Output load capacity: Its load voltage range is AC75~264V (50/60Hz), and the rated load current can reach 15A at 40℃.The inrush current tolerance is 150A (60Hz, 1 cycle), which is suitable for a variety of resistive load scenarios.

· Installation and structure: The product adopts a small and slender design, supports DIN rail installation and screw installation in two ways, and is easy to integrate into different equipment.At the same time, it is equipped with an action indicator light, which visually displays the working status through the yellow LED.

· Safety and certification: It complies with RoHS standards, has UL508, CSA22.2, EN60947-4-3 and other international safety certifications, and adopts photoelectric three-terminal two-way switch coupler for insulation to ensure electrical isolation performance.

· Environmental adaptability: It can work in the ambient temperature range of -30℃ to +80℃ (no icing, condensation), and the ambient humidity is 45%~85%RH, which meets the temperature and humidity requirements of most industrial scenarios.
