Name: NL6448BC33-71.pdfProduct Introduction

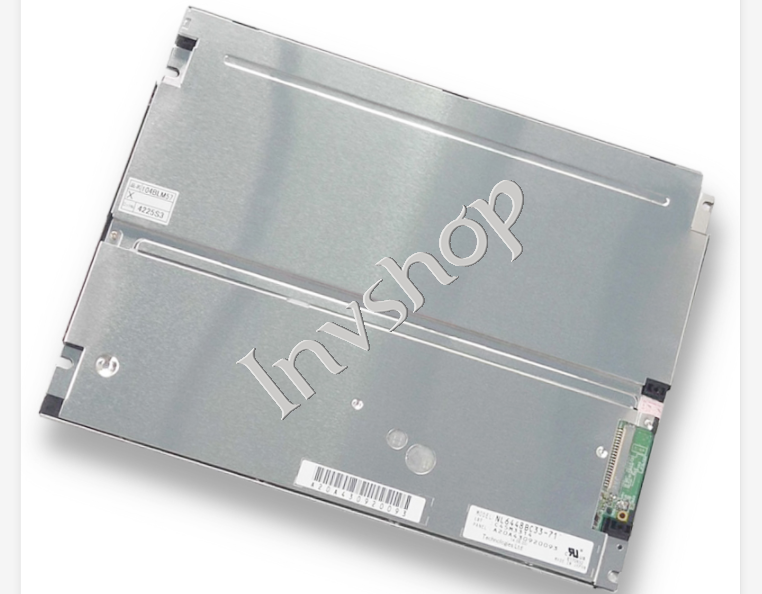

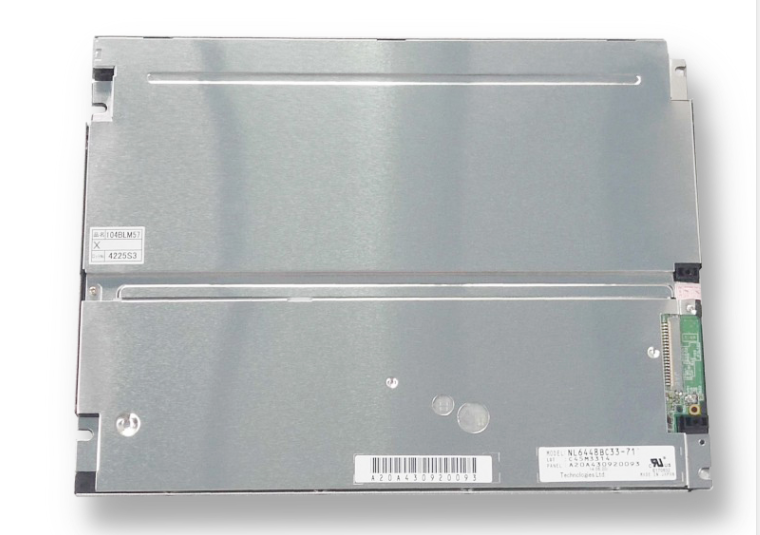

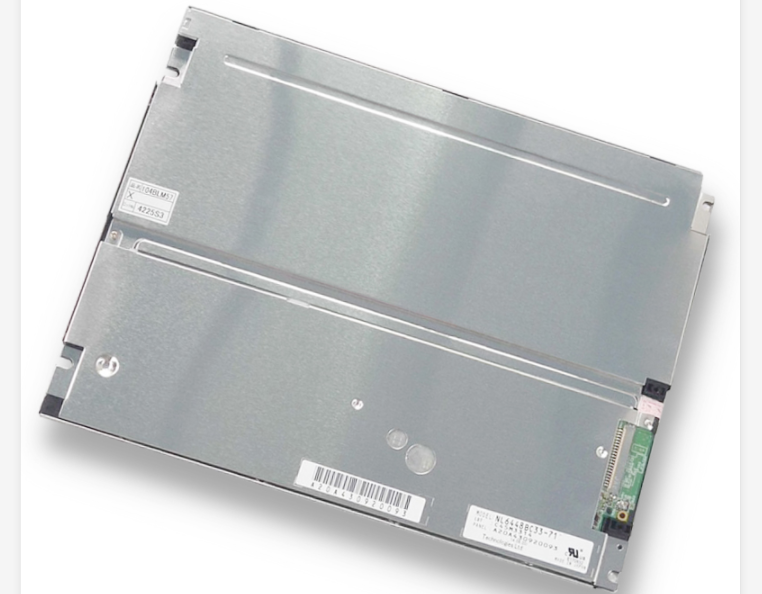

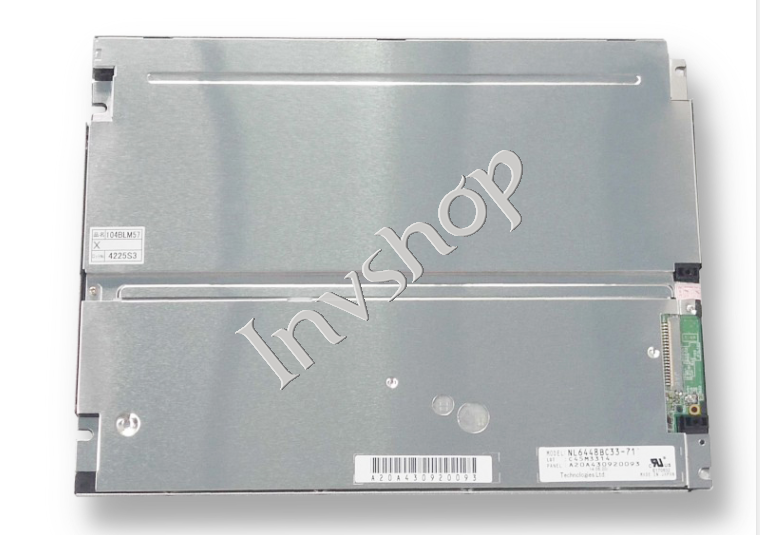

The NL6448BC33-71 is a classic 10.4 inch industrial TFT LCD module launched by NEC. This panel features mainstream 640×480 VGA resolution and 350 cd/m² stable brightness, with soft anti-glare coating to reduce light reflection. Equipped with 20-pin TTL signal interface and standard CCFL backlight, it has outstanding shock resistance, low temperature resistance and long service life, fully adapting to complex industrial working conditions.
View more NEC industrial LCD modules, 10.4" VGA display panels and compatible replacement models such as NL8060BC31-42D and TCG057VGLAAANN-GN20.
Specifications
| Brand | NEC |
| Model | NL6448BC33-71 |
| Diagonal Size | 10.4" |
| Resolution | 640×480 VGA |
| Panel Technology | a-Si TFT TN |
| Brightness | 350 cd/m² (Typ.) |
| Contrast Ratio | 450:1 (Typ.) |
| Viewing Angle | 70°/70°/60°/50° |
| Backlight Type | CCFL |
| Interface | 20 Pin TTL |
| Operating Temperature | -20°C ~ +70°C |
| Storage Temperature | -30°C ~ +80°C |
Key Features
- 10.4 inch classic industrial size widely used in traditional industrial equipment
- 640×480 VGA standard resolution compatible with most industrial control motherboards
- 350 cd/m² moderate brightness suitable for indoor factory environment
- 20-pin TTL universal interface easy replacement and wiring
- Anti-glare screen surface improve visual comfort
- NEC original industrial grade quality stable for long time operation
Installation & Maintenance
Please wear anti-static gloves during installation to avoid static damage. Do not squeeze the screen surface violently. Check the TTL cable connection regularly to ensure signal stability. Avoid working in high humidity and corrosive gas environment.
Applications
Industrial human-machine interface HMI, numerical control machine tools, factory automation equipment, industrial control cabinets, medical testing instruments and old embedded industrial computer systems.
FAQ
1. What is the brand of NL6448BC33-71?
This industrial LCD is original product from NEC.
2. What resolution does this screen support?
Industrial classic VGA resolution 640×480.
3. What kind of interface does it use?
Standard 20 pin TTL industrial dedicated interface.
4. Is it suitable for long term industrial use?
Yes, it has industrial wide temperature and anti-aging design for 24/7 continuous work.
Product Introduction
The NL6448BC33-71 is a classic 10.4 inch industrial TFT LCD module launched by NEC. This panel features mainstream 640×480 VGA resolution and 350 cd/m² stable brightness, with soft anti-glare coating to reduce light reflection. Equipped with 20-pin TTL signal interface and standard CCFL backlight, it has outstanding shock resistance, low temperature resistance and long service life, fully adapting to complex industrial working conditions.
View more NEC industrial LCD modules, 10.4" VGA display panels and compatible replacement models such as NL8060BC31-42D and TCG057VGLAAANN-GN20.
Specifications
| Brand | NEC |
| Model | NL6448BC33-71 |
| Diagonal Size | 10.4" |
| Resolution | 640×480 VGA |
| Panel Technology | a-Si TFT TN |
| Brightness | 350 cd/m² (Typ.) |
| Contrast Ratio | 450:1 (Typ.) |
| Viewing Angle | 70°/70°/60°/50° |
| Backlight Type | CCFL |
| Interface | 20 Pin TTL |
| Operating Temperature | -20°C ~ +70°C |
| Storage Temperature | -30°C ~ +80°C |
Key Features
- 10.4 inch classic industrial size widely used in traditional industrial equipment
- 640×480 VGA standard resolution compatible with most industrial control motherboards
- 350 cd/m² moderate brightness suitable for indoor factory environment
- 20-pin TTL universal interface easy replacement and wiring
- Anti-glare screen surface improve visual comfort
- NEC original industrial grade quality stable for long time operation
Installation & Maintenance
Please wear anti-static gloves during installation to avoid static damage. Do not squeeze the screen surface violently. Check the TTL cable connection regularly to ensure signal stability. Avoid working in high humidity and corrosive gas environment.
Applications
Industrial human-machine interface HMI, numerical control machine tools, factory automation equipment, industrial control cabinets, medical testing instruments and old embedded industrial computer systems.
FAQ
1. What is the brand of NL6448BC33-71?
This industrial LCD is original product from NEC.
2. What resolution does this screen support?
Industrial classic VGA resolution 640×480.
3. What kind of interface does it use?
Standard 20 pin TTL industrial dedicated interface.
4. Is it suitable for long term industrial use?
Yes, it has industrial wide temperature and anti-aging design for 24/7 continuous work.
