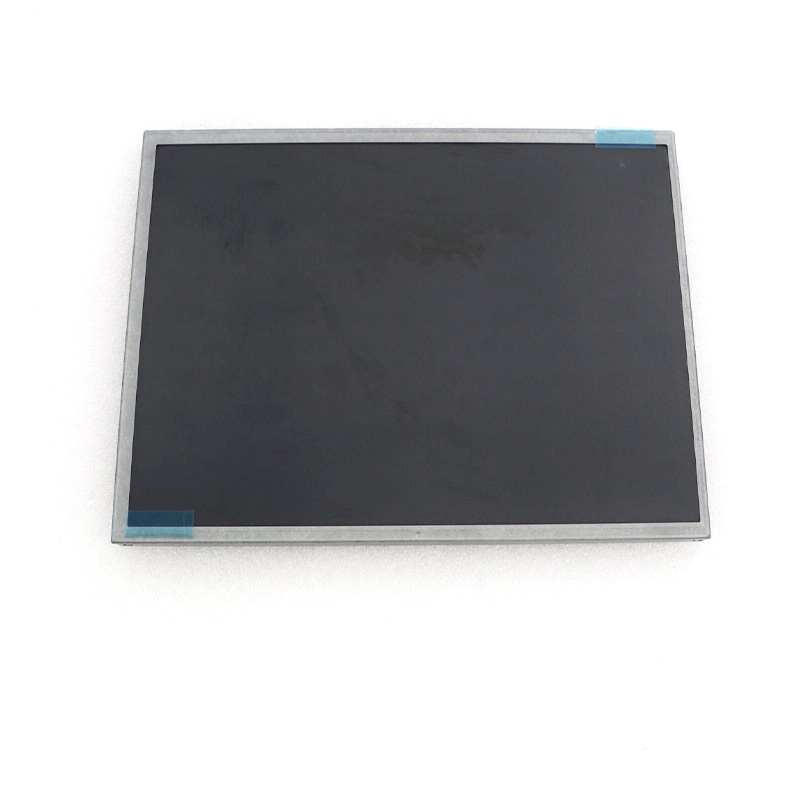

AA121XN01 12.1 inch 1024*768 LCD PANEL A+GRADE

In the intricate world of industrial and specialized display solutions, the pursuit of reliability, clarity, and cost-effectiveness is paramount. At the heart of many legacy systems, medical devices, and rugged industrial equipment lies a critical component: the LCD panel. This article delves deep into the specifics of one such enduring workhorse, the AA121XN01. This 12.1-inch display module, with its 1024x768 (XGA) resolution and coveted A+ Grade classification, represents more than just a screen; it is a testament to balanced performance and proven durability in demanding applications.

We will explore not only its fundamental technical specifications but also the significant implications of its A+ grade rating. Beyond the datasheet, we will examine its ideal application ecosystems, the crucial considerations for integration and compatibility, and the tangible value it offers in a market flooded with alternatives. Finally, we will provide practical guidance for sourcing and maintaining this panel, ensuring you can make an informed decision for your project's long-term viability.

Decoding the AA121XN01: Core Specifications and Legacy

The AA121XN01 is a 12.1-inch diagonal TFT-LCD panel designed for embedded applications. Its native resolution of 1024 x 768 pixels, known as XGA (Extended Graphics Array), was once a mainstream standard and remains perfectly suited for interfaces that prioritize information density over widescreen media. The panel typically employs a high-quality a-Si (amorphous Silicon) TFT process and features an LED backlighting system, offering a balance of brightness, longevity, and power efficiency.

Key performance parameters include a standard brightness range (often around 300-400 nits), a contrast ratio sufficient for clear readability, and a collection of viewing angles that accommodate multiple operators. Its interface is commonly LVDS (Low-Voltage Differential Signaling), a robust and widely adopted standard for internal display connections. This combination of specs positions the AA121XN01 not as a cutting-edge consumer display, but as a stable, predictable, and thoroughly validated component for professional use.

The Significance of A+ Grade: Beyond Pixel-Perfect

In the realm of LCD panels, not all units are created equal. The designation "A+ Grade" is a critical quality distinction. It signifies that the panel has passed stringent factory inspections with zero tolerance for dead pixels (permanently on or off) and a minimal allowance for bright or dark sub-pixel defects. Essentially, an A+ Grade panel guarantees a visually flawless active area under normal operating conditions.

This rating is non-negotiable for medical imaging displays, financial trading terminals, or industrial control systems where a single pixel anomaly could obscure critical data or lead to user error. Choosing an A+ Grade panel like the AA121XN01 is an investment in reliability and user trust. It eliminates the risk associated with lower-grade (A, B, etc.) panels, which may contain a permissible number of pixel defects, and ensures the consistent, high-fidelity visual output required in professional environments.

Ideal Application Ecosystems

The AA121XN01 finds its true calling in environments where robustness, standardization, and longevity trump the latest display trends. A primary domain is medical equipment, such as patient monitoring systems, diagnostic devices, and portable ultrasound machines, where its reliable XGA resolution and flawless display are crucial.

Similarly, in industrial automation, it serves as the interface for PLC (Programmable Logic Controller) panels, factory machine HMI (Human-Machine Interface) terminals, and test/measurement equipment. Its form factor and resolution are also a common fit for legacy avionics displays, marine navigation systems, and specialized point-of-sale or kiosk systems. These applications benefit from the panel's mature supply chain, available driver boards, and known performance characteristics, reducing development risk and time-to-market for maintenance or refurbishment projects.

Integration, Compatibility, and Critical Considerations

Successfully deploying the AA121XN01 requires careful attention to integration parameters. Engineers must verify the mechanical footprint, including mounting hole positions and bezel dimensions, to ensure it fits the existing chassis. Electrically, matching the LVDS interface pinout and voltage requirements (e.g., 3.3V or 5V) with the host controller is essential to avoid damage.

Furthermore, the backlight inverter (if not using an LED driver board) and the control signal timing must be compatible. Sourcing the correct ribbon cable and connector is a small but vital detail. Often, purchasing a complete LCD module kit—which includes the panel, driver board, cables, and sometimes a backlight—simplifies integration dramatically. Understanding these interdependencies is key to a seamless and functional installation.

Value Proposition in a Modern Market

In an era of 4K OLED displays, the AA121XN01's value is not rooted in being the most advanced, but in being the most appropriate. Its value proposition is threefold: Reliability, Total Cost of Ownership (TCO), and Continuity. As a mature product, its failure modes and performance envelope are well-understood, minimizing operational surprises.

For businesses maintaining long-lifecycle equipment, finding a direct, A+ Grade replacement avoids the exorbitant cost and engineering effort of a complete system redesign. The TCO of a proven drop-in module is often far lower than adapting to a modern panel with different aspect ratios, interfaces, and power needs. This panel enables the continued operation of capital-intensive equipment, protecting previous investments and ensuring system uptime.

Sourcing and Longevity Assurance

Procuring a genuine AA121XN01 A+ Grade panel requires diligence. It is strongly advised to work with authorized distributors or highly reputable specialist suppliers in the industrial LCD market. Be wary of prices that seem too good to be true, as they may indicate mis-graded panels, refurbished units sold as new, or outright counterfeits.

Inquire about warranty terms and the supplier's testing procedures. For critical applications, consider purchasing a small life-time buy stock to secure future repair needs, as manufacturers eventually end-of-life (EOL) such components. Establishing a relationship with a trustworthy supplier is perhaps the most important step in guaranteeing the long-term availability and authenticity of this crucial component.

FAQs: AA121XN01 LCD Panel

Conclusion

The AA121XN01 12.1-inch XGA LCD panel, particularly in its A+ Grade incarnation, is a quintessential component for sustaining critical technology systems. Its value lies not in novelty, but in its proven track record of reliability, visual integrity, and seamless integration into established equipment. For engineers, procurement specialists, and maintenance teams, understanding its specifications, quality distinctions, and ideal use cases is key to making cost-effective and reliable decisions.

In a landscape of rapid technological change, this panel serves as a bridge, allowing vital machinery and devices to continue their service life efficiently and safely. Choosing the right component, from the right source, is ultimately an investment in operational continuity and peace of mind.
