NEW 3.5inch 320*240 LCD DISPLAY ET035009DH6
The CPT ET035009DH6 is a 3.5-inch TFT-LCD module featuring QVGA (320x240) resolution, 350 cd/m² brightness, wide viewing angles, and versatile RGB/SPI interfaces.
Price: $70.00 $68.00 / piece
WINNI (HK) ELECTRONIC CO., LIMITED
Invshop168
All Categories
- Industrial LCD display
-
Industrial Products
- DC Servo Drive
- AC Servo Drive
- other
- Heidelberg
- FANUC
- IFM
- Meter
- CCD
- Membrane Keypad
- Film
- YOKOGAWA Module
- Card
- ABB
- MITSUBISHI
- FANUC
- KEYENCE
- BECKHOFF
- Honeywell
- HOLLYSYS
- FUJI servo drives
- HP
- solenoid valve
- thermostat
- Siemens adapter
- color oscilloscope
- Fujitsu connector
- CHELIC
- SMC
- CISCO Module
- INTEL
- Key board
- FAIRCHILD
- Motherboard
- Board
- Bearing
- other
- Control Panel
- Contactor
- Circuit
- OMRON
- Relay
- Controller
- Photoelectric Switch
- Photoelectric Sensor
- Original
- Fan
- Motor Driver
- Limit Switch
- Amplifier
- power supply
- LENZE
- Cable
- Encoder
- Sensor
- Transformer
- Fiber Optic Sensor
- Protection Relay
- Temperature Controller
- Proximity Switch
- Switch Sensor
- Siemens
- Industrial board
- HMI Touch Glass
-
HMI Full Machine Whole unit
- OMRON HMI Touch Panel
- Siemens HMI Touch Panel
- Mitsubishi HMI Touch Panel
- Allen-Bradley automation HMI Touch Panel
- DELTA HMI Touch Panel
- EVIEW DELTA HMI Touch Panel
- KINCO DELTA HMI Touch Panel
- HITECH HMI Touch Panel
- WEINTECK HMI Touch Panel
- TECVIEW HMI Touch Panel
- WEINVIEW HMI Touch Panel
- PRO-FACE HMI Touch Panel
- SIMATIC HMI Touch Panel
- AMPIRE HMI Touch Panel
- HEIDELBERG HMI Touch Panel
- PANASONIC HMI Touch Panel
- PATLITE HMI Touch Panel
- KYOCERA HMI Touch Panel
- KEYENCE HMI Touch Panel
- WEINVIEW HMI Touch Panel
- HITECH HMI Touch Panel
- FUJI HMI Touch Panel
- HAKKO HMI Touch Panel
- SCHNEIDER HMI Touch Panel
- SAMKOON touch panel
- other
- Module
- lcd inverter
- Membrane Keypad Switch
- Winni Touch Screens
- Frequency Inverter
- Servo Motor
- PLC
ET035009DH6 Datasheets Download
Name: ET035009DH6.pdfType
LCD PANEL
Brand
EDT
Model
ET035009DH6

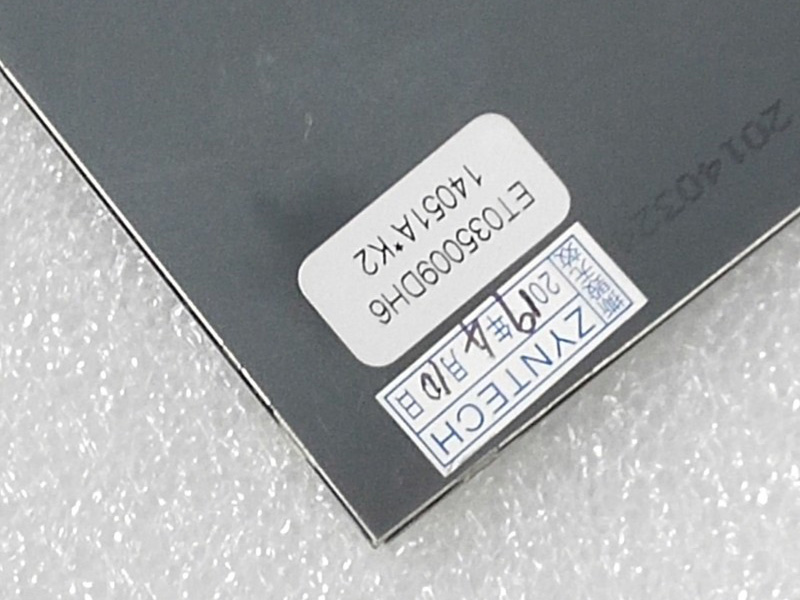

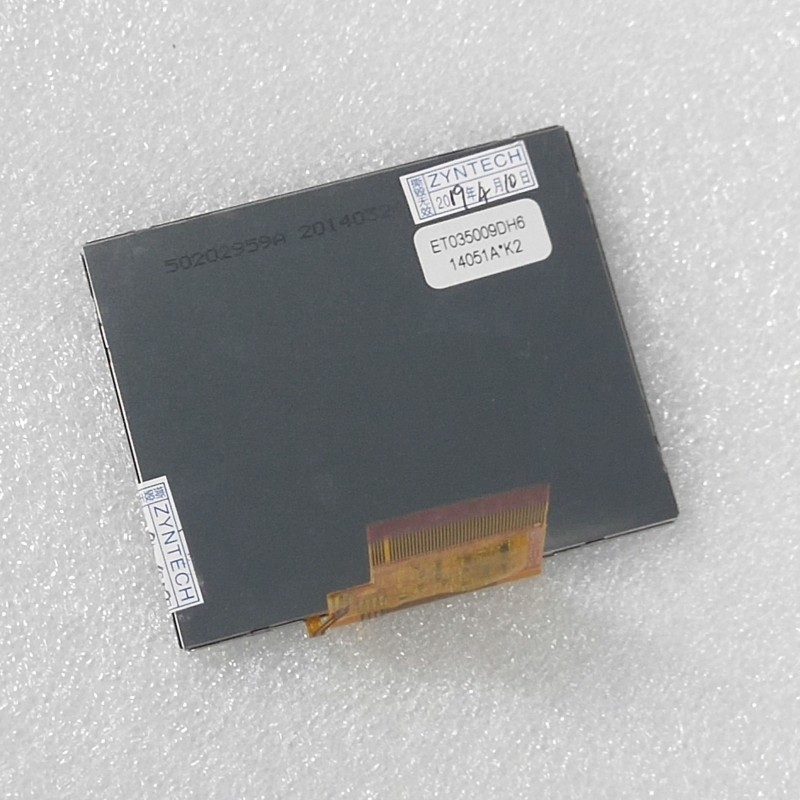

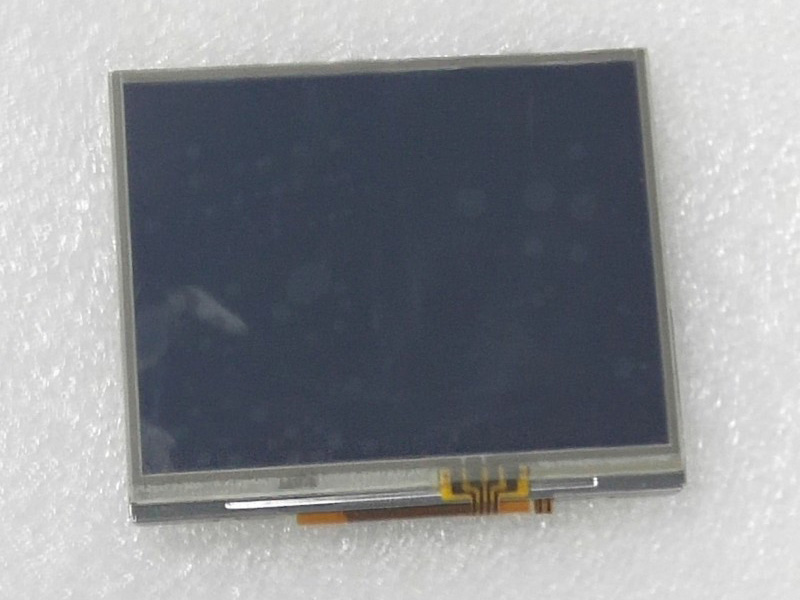

NEW 3.5inch 320*240 LCD DISPLAY ET035009DH6
| Model: | ET035009DH6 | Panel-type: | TFT-LCD, LCM |
| Size: | 3.5 inch | Resolution: | 320(RGB)×240, QVGA 115PPI |
| Display Area: | 70.08(W)×52.56(H) mm | Outline Size: | 76.8(W)×63.8(H) ×4.9(D) mm |
| Brightness: | 350 cd/m² (Typ.) | Contrast Ratio: | 400:1 (Typ.) (TM) |
| Viewing Angle: | 75/75/55/75 (Typ.)(CR≥2) | Display Mode: | TN, Normally White, Transmissive |
| Display Colors: | 6 o'clock | Response Time: | 15/35 (Typ.)(Tr/Td) |
| Signal Interface: | Parallel RGB (1 ch, 8-bit) + SPI , 50 pins FPC | Backlight type: | 6S1P WLED , 43K hours , Without Driver |
| Touch Screen: | 4-wire Resistive Touch | Operating Temp.: | -10 ~ 60 °C |
NEW 3.5inch 320*240 LCD DISPLAY ET035009DH6
| Model: | ET035009DH6 | Panel-type: | TFT-LCD, LCM |
| Size: | 3.5 inch | Resolution: | 320(RGB)×240, QVGA 115PPI |
| Display Area: | 70.08(W)×52.56(H) mm | Outline Size: | 76.8(W)×63.8(H) ×4.9(D) mm |
| Brightness: | 350 cd/m² (Typ.) | Contrast Ratio: | 400:1 (Typ.) (TM) |
| Viewing Angle: | 75/75/55/75 (Typ.)(CR≥2) | Display Mode: | TN, Normally White, Transmissive |
| Display Colors: | 6 o'clock | Response Time: | 15/35 (Typ.)(Tr/Td) |
| Signal Interface: | Parallel RGB (1 ch, 8-bit) + SPI , 50 pins FPC | Backlight type: | 6S1P WLED , 43K hours , Without Driver |
| Touch Screen: | 4-wire Resistive Touch | Operating Temp.: | -10 ~ 60 °C |
Quality Assurance:
Quality is our culture!
We will take each customer's order seriously and responsibly.
Each item will be tested ok by testing tools before shipment .
Warranty of Products:
90days for new products ,60days for secondhand products.
After you receive the parcel , remember to install it on your equipment in time .
If there is any problems in warranty period , pls contact us firstly, we will solve the problems for customer.
Guarantee of delivery:
Time is money!
It will take 1 working day for stock products , 2-3 working days for order products.
If there are special circumstances on delivery time, we will inform customer in time.
Service Guarantee:
We have a professional pre-sales and after-sales team to provide customers with good service.
we trust we will be your trustworthy supplier in china if we have a chance to serve you.
we trust we will be your trustworthy supplier in china if we have a chance to serve you.
Exchange / Return Policy:
We accept exchange or return within 7days if the goods you received has problems.
About refund, We need to check the goods whether is in the same condition we sent after we received the return, if no problems , we will refund .
About refund, We need to check the goods whether is in the same condition we sent after we received the return, if no problems , we will refund .
NEW 3.5inch 320*240 LCD DISPLAY ET035009DH6
| Model: | ET035009DH6 | Panel-type: | TFT-LCD, LCM |
| Size: | 3.5 inch | Resolution: | 320(RGB)×240, QVGA 115PPI |
| Display Area: | 70.08(W)×52.56(H) mm | Outline Size: | 76.8(W)×63.8(H) ×4.9(D) mm |
| Brightness: | 350 cd/m² (Typ.) | Contrast Ratio: | 400:1 (Typ.) (TM) |
| Viewing Angle: | 75/75/55/75 (Typ.)(CR≥2) | Display Mode: | TN, Normally White, Transmissive |
| Display Colors: | 6 o'clock | Response Time: | 15/35 (Typ.)(Tr/Td) |
| Signal Interface: | Parallel RGB (1 ch, 8-bit) + SPI , 50 pins FPC | Backlight type: | 6S1P WLED , 43K hours , Without Driver |
| Touch Screen: | 4-wire Resistive Touch | Operating Temp.: | -10 ~ 60 °C |
Customer's Reviews:
Price:
![]()
![]()
![]()
![]()
![]()
Quality:
![]()
![]()
![]()
![]()
![]()
Ease of use:
![]()
![]()
![]()
![]()
![]()
Delivery speed:
![]()
![]()
![]()
![]()
![]()
OverALL Rating:
![]()
![]()
![]()
![]()
![]()
04/20/2024, By
04/20/2024, By
Great
Price:
![]()
![]()
![]()
![]()
![]()
Quality:
![]()
![]()
![]()
![]()
![]()
Ease of use:
![]()
![]()
![]()
![]()
![]()
Delivery speed:
![]()
![]()
![]()
![]()
![]()
OverALL Rating:
![]()
![]()
![]()
![]()
![]()
04/20/2024, By
04/20/2024, By
Great deal! Would buy from again
Price:
![]()
![]()
![]()
![]()
![]()
Quality:
![]()
![]()
![]()
![]()
![]()
Ease of use:
![]()
![]()
![]()
![]()
![]()
Delivery speed:
![]()
![]()
![]()
![]()
![]()
OverALL Rating:
![]()
![]()
![]()
![]()
![]()
04/20/2024, By
04/20/2024, By
Excellent, many thanks
Price:
![]()
![]()
![]()
![]()
![]()
Quality:
![]()
![]()
![]()
![]()
![]()
Ease of use:
![]()
![]()
![]()
![]()
![]()
Delivery speed:
![]()
![]()
![]()
![]()
![]()
OverALL Rating:
![]()
![]()
![]()
![]()
![]()
04/20/2024, By
04/20/2024, By
NO PROBLEM. GOOD WORK
Price:
![]()
![]()
![]()
![]()
![]()
Quality:
![]()
![]()
![]()
![]()
![]()
Ease of use:
![]()
![]()
![]()
![]()
Delivery speed:
![]()
![]()
![]()
![]()
![]()
OverALL Rating:
![]()
![]()
![]()
![]()
04/20/2024, By
04/20/2024, By
Fast delivery
Price:
![]()
![]()
![]()
![]()
![]()
Quality:
![]()
![]()
![]()
![]()
![]()
Ease of use:
![]()
![]()
![]()
![]()
![]()
Delivery speed:
![]()
![]()
![]()
![]()
![]()
OverALL Rating:
![]()
![]()
![]()
![]()
![]()
04/20/2024, By
04/20/2024, By
Worked Great
Price:
![]()
![]()
![]()
![]()
![]()
Quality:
![]()
![]()
![]()
![]()
![]()
Ease of use:
![]()
![]()
![]()
![]()
![]()
Delivery speed:
![]()
![]()
![]()
![]()
![]()
OverALL Rating:
![]()
![]()
![]()
![]()
![]()
04/20/2024, By
04/20/2024, By
Good quality products
Price:
![]()
![]()
![]()
![]()
![]()
Quality:
![]()
![]()
![]()
![]()
![]()
Ease of use:
![]()
![]()
![]()
![]()
![]()
Delivery speed:
![]()
![]()
![]()
![]()
![]()
OverALL Rating:
![]()
![]()
![]()
![]()
![]()
04/20/2024, By
04/20/2024, By
good
Price:
![]()
![]()
![]()
![]()
![]()
Quality:
![]()
![]()
![]()
![]()
![]()
Ease of use:
![]()
![]()
![]()
![]()
![]()
Delivery speed:
![]()
![]()
![]()
![]()
![]()
OverALL Rating:
![]()
![]()
![]()
![]()
![]()
04/20/2024, By
04/20/2024, By
item as described and packaged well
Price:
![]()
![]()
![]()
![]()
![]()
Quality:
![]()
![]()
![]()
![]()
![]()
Ease of use:
![]()
![]()
![]()
![]()
![]()
Delivery speed:
![]()
![]()
![]()
![]()
OverALL Rating:
![]()
![]()
![]()
![]()
04/20/2024, By
04/20/2024, By
Order received in good condition. Would definitely use this seller again for any future orders.
ET035009DH6 Summary
The ET035009DH6 from Chunghwa Picture Tubes (CPT) is a compact 3.5-inch TFT-LCD display module designed for embedded applications. Its key attributes include a QVGA resolution of 320x240 pixels, a typical brightness of 350 cd/m², and a wide viewing angle of 75/75/75/75, ensuring good readability. The module employs WLED backlight and supports multiple interface types including RGB and SPI for flexible system integration. With an operating temperature range of -10°C to 60°C, it is suitable for various industrial and consumer electronic devices.
