MITSUBISHI PLC FX3U-2HSY-ADP

1、FX3U-2HSY-ADP Product advantages

1 High-speed pulse output：

· It supports independent 2-axis pulse output, and the maximum output frequency of a single axis is 200kHz, which meets the needs of high-precision positioning.

2 Strong extensibility：

· A single FX3U PLC can be connected to up to 2 FX3U-2HSY-ADP to achieve independent 4-axis control, which expands the multi-axis control capabilities of the PLC.

3 Good compatibility：

· Suitable for FX3U series host, it can be directly connected to the expansion interface on the left side of the PLC, without the need for additional function expansion boards.

4 Does not occupy I/O points：

· The output pulse control is completed by the high-speed output command of the PLC. The positioning command is consistent with the built-in pulse output and does not occupy the I/O points of the PLC.

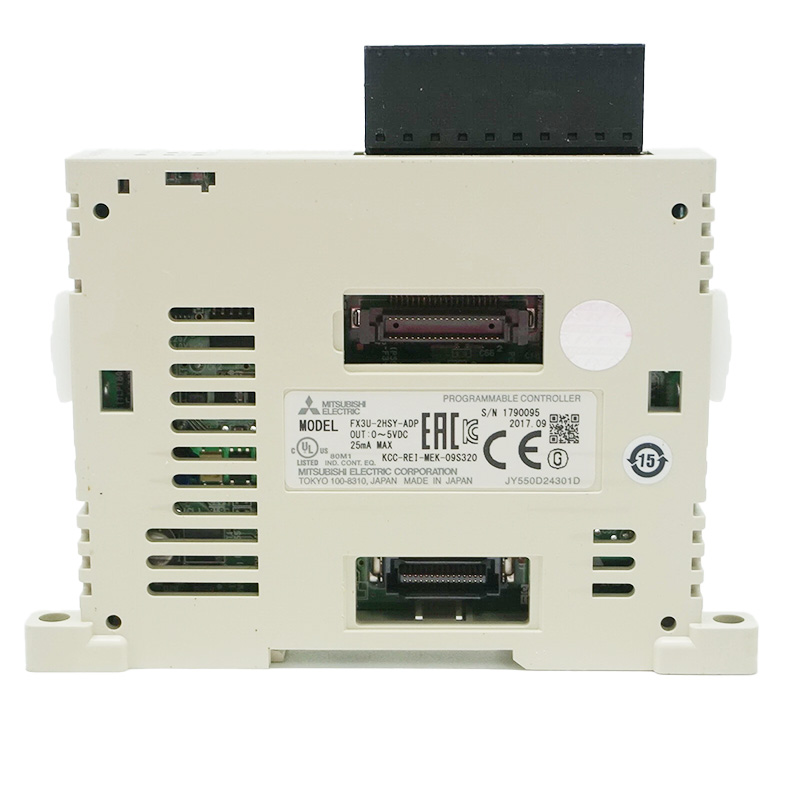

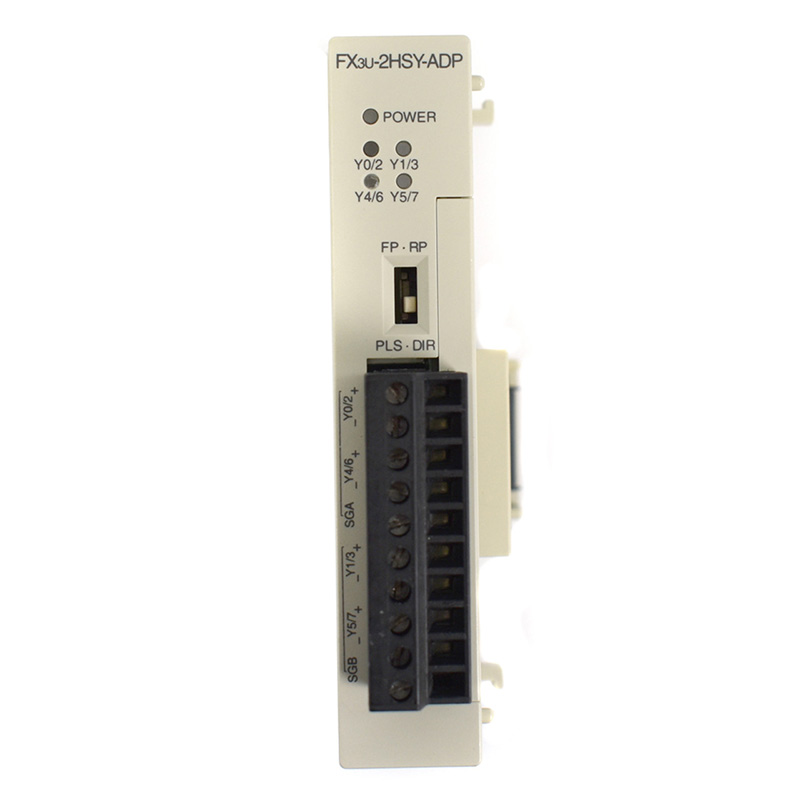

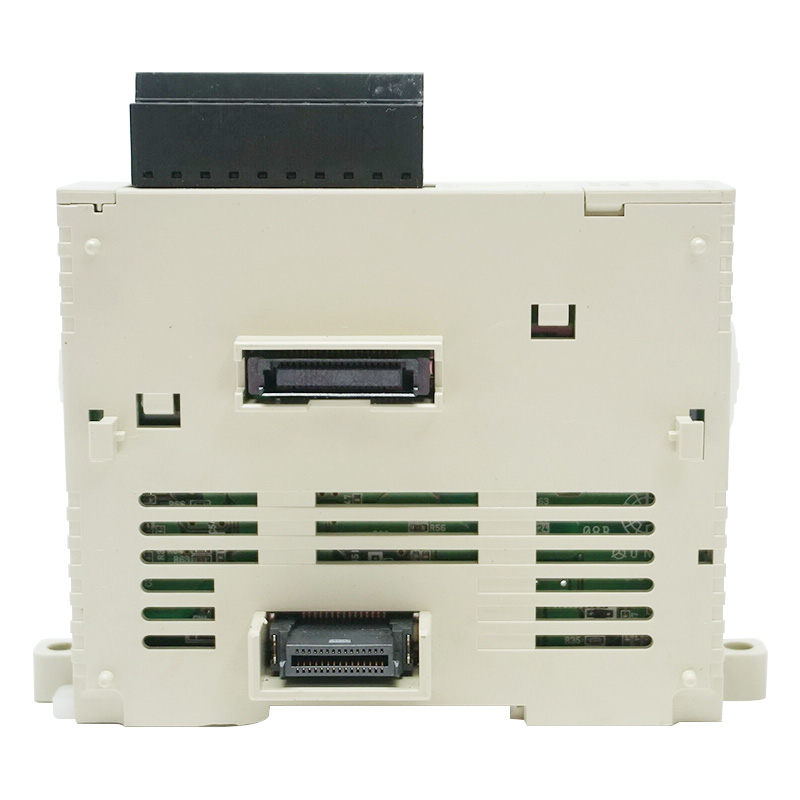

2、FX3U-2HSY-ADP Product picture
