Mitsubishi PLC FX2N-32CCL

1、FX2N-32CCL Technical specifications

1 Station number and number of stations：

· The station number can be set between 1 and 64, and the number of stations can be selected between 1 and 4 stations.

2 Transmission speed：

· It supports various transmission speeds such as 156kbps, 625kbps, 2.5Mbps, 5Mbps, 10Mbps, etc., which can be set by knob switch.

3 Transmission distance：

· The maximum total extension distance (maximum transmission distance) of the cable varies depending on the transmission speed, for example, it can reach 1200m at 156kbps.

4 Input and output points：

· The remote input and output points of each station are 32 points for input and 32 points for output.However, the high 16 points of the last station are occupied by the CC-Link system as the system area.

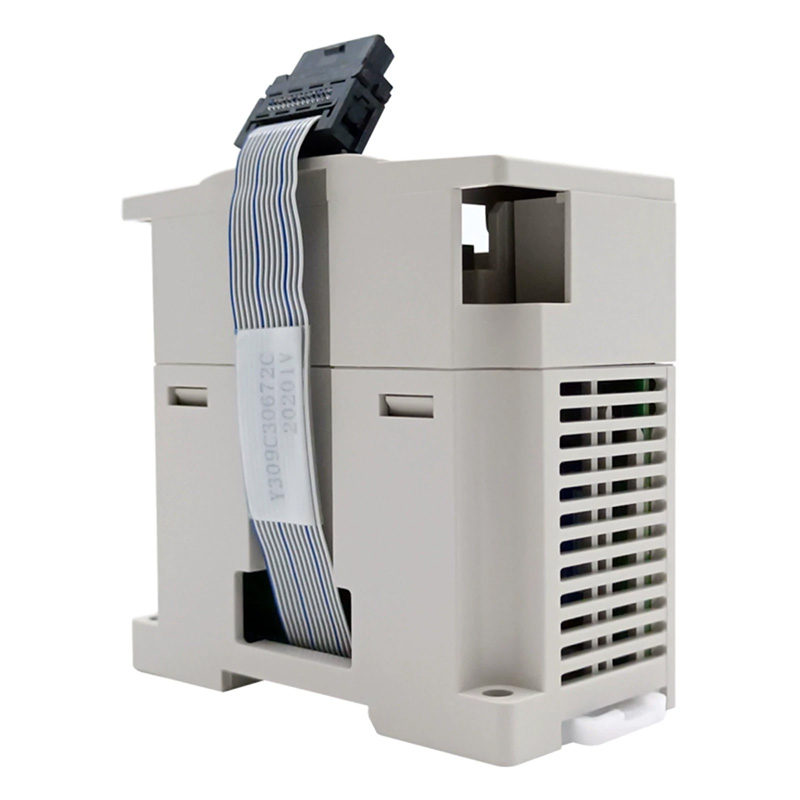

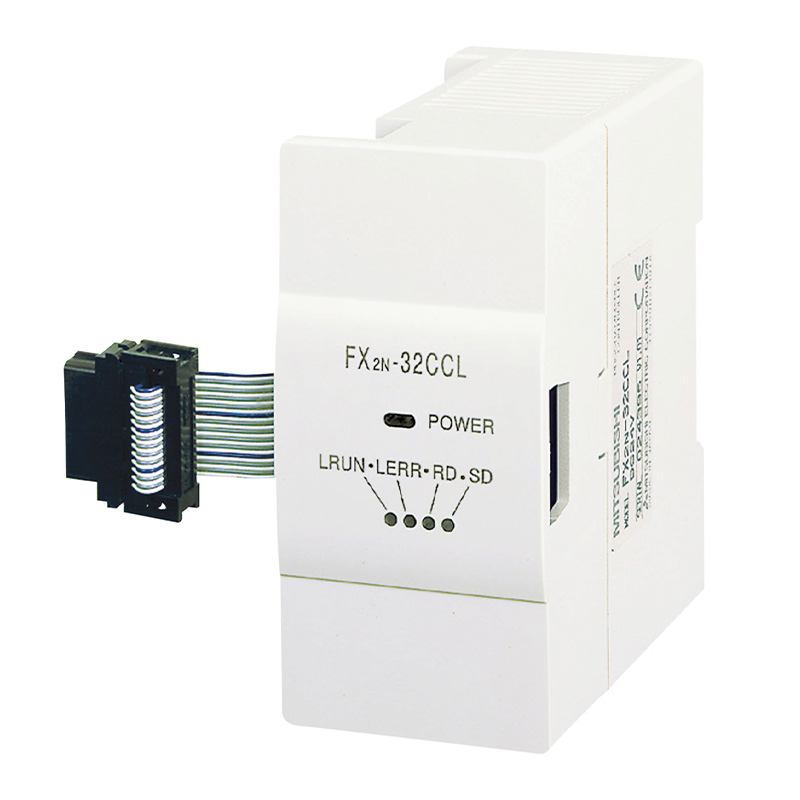

2、FX2N-32CCL Product picture
