MITSUBISHI INVERTER FR-E720-2.2K

1、FR-E720-2.2K Product features

1 Power and specifications：

· The applicable motor capacity is 2.2kW, the output rated capacity is 4.4kVA, the rated output current is 11.0A, and the overload capacity is 150%. The rated current lasts for 60 seconds or 200% of the rated current lasts for 3 seconds.

2 Input power：

· Support single-phase 200~240V, 50Hz/60Hz input power supply, the allowable range of AC voltage is 170~264V, and the allowable range of frequency is ±5%.

3 Control method：

· Using advanced magnetic flux vector control technology, 200% torque output can be achieved at 0.5hz, which is suitable for occasions where high starting torque and low-speed operating stability are required.

4 Functional features：

· Built-in functions: including PID control, flexible PWM output and Modbus-RTU communication protocol, it supports a variety of automation control requirements.

· Expansion capability: Through optional communication cards (such as FR-A7NC, FR-A7NL, etc.), it can support industrial network communications such as CC-Link, LONWORKS, and DeviceNet.

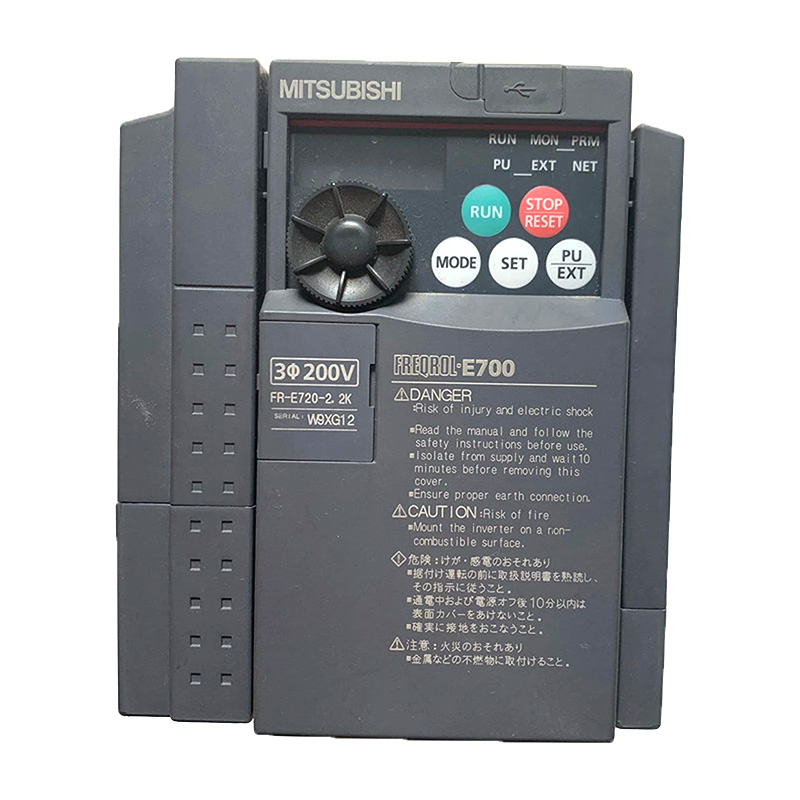

2、FR-E720-2.2K Product picture
