LS052R1SX04 Sharp 5.5inch 1440*2560 LCD DISPLAY

LS052R1SX04 Sharp 5.5inch 1440*2560 LCD DISPLAY

The Sharp LS052R1SX04 is a 5.2-inch Si-OLED display module with a high resolution of 1440×2560, a brightness of 450 nits, and MIPI interface.

Price: ~~¥3599.36~~ ¥3374.40 / piece

Quantity:		Unit(s) MOQ: 1



Add to wish list

Calculate shipping price

WINNI (HK) ELECTRONIC CO., LIMITED

+86 13827441621

Invshop168

+8613827441621

winnihk88@winnihk.com

facebook:invshop@163.com

youtube:invshop-com

linked:Linkedin

Teams:winnihk88@winnihk.com

RM 3, 27/F HO KING COMM CTR NO 2-16 FA YUEN ST MONG KOK KL

Require:*

Product Model*	Target price	Qty *

Message

Your contact info:

Additional info:

Name: *

Mr.

Ms.

1. Quote with shipping freight?

Email : *

YES

Phone:

2. Which carrier do you perfert?

Company:

	Fedex		UPS		DHL
	TNT		other

Country:*

All Categories

Producrts Details

Inventory Information

Seller Guarantees

Feedback

Reveiw

LS052R1SX04 Sharp 5.5inch 1440*2560 LCD DISPLAY

LS052R1SX04 Datasheets Download

Name: LS052R1SX04.pdf

Type

LCD DISPLAY

Brand

Sharp

Model

LS052R1SX04

Resolution

1440(RGB)×2560, Quad-HD 570PPI

Active Area

64.152(W)×114.048(H) mm

Outline(mm)

66.36(H)×120.64(V) ×1.4(D) mm

Luminance

450 cd/m² (Typ.)

Viewing Angle

80/80/80/80 (Max.)(CR≥10)

Color Depth

16.7M 94% NTSC

Signal Type

MIPI (2 ch, 4 data lanes) , 50 pins Connector

Panel Type

CG-Silicon, LCM

Backlight

WLED [8S2P] , W/O Driver

Touchscreen

Without

Parameter description：

1. Brand: SHARP

2. Size: 5.5 inches

3. Model: LS052R1SX04

4. Panel type: CG-Silicon, LCD module

5. Resolution: 1440 (RGB)×2560, Quad-HD, 570PPI

6. AA zone size: 64.152(W)×114.048(H) mm

7. Overall dimensions: 66.36(W)×120.64(H)×1.4(D)mm

8. Brightness: 450cd/m2 (Typ.)

9. Viewing angle: 80/80/80/80 (Max.)(CR≥10)

10. Contrast ratio: 1000:1 (Typ.)(TM)

11. Display color: 16.7M, 94% NTSC

12. Working mode: New Mode2, normally black display, transmissive

13. Response speed: 32 (Typ.)(Tr+Td)

14. Signal interface: MIPI (2 ch, 4 data lanes), 50 pins, terminal

15. Light source type: 8S2P WLED, without driver

16. Touch: none

17. Working environment: work: -20~60°C; storage: -30~70°C

Parameter description：

1. Brand: SHARP

2. Size: 5.5 inches

3. Model: LS052R1SX04

4. Panel type: CG-Silicon, LCD module

5. Resolution: 1440 (RGB)×2560, Quad-HD, 570PPI

6. AA zone size: 64.152(W)×114.048(H) mm

7. Overall dimensions: 66.36(W)×120.64(H)×1.4(D)mm

8. Brightness: 450cd/m2 (Typ.)

9. Viewing angle: 80/80/80/80 (Max.)(CR≥10)

10. Contrast ratio: 1000:1 (Typ.)(TM)

11. Display color: 16.7M, 94% NTSC

12. Working mode: New Mode2, normally black display, transmissive

13. Response speed: 32 (Typ.)(Tr+Td)

14. Signal interface: MIPI (2 ch, 4 data lanes), 50 pins, terminal

15. Light source type: 8S2P WLED, without driver

16. Touch: none

17. Working environment: work: -20~60°C; storage: -30~70°C

Quality: test ok before ship it
RMA Policy: RMA 3 month
Quantity: 50
Sample: Paid Sample
Stock Location: China
Delivery: WorldWide
Lead Time: 3-5 Days
Price Term: T/T, Paypal Western Union, MoneyGram, PayPal, Escrow etc
Remark: NEW
Weight: 0.500Kg

Quality Assurance:

Quality is our culture!

We will take each customer's order seriously and responsibly.

Each item will be tested ok by testing tools before shipment .

Warranty of Products:

90days for new products ,60days for secondhand products.

After you receive the parcel , remember to install it on your equipment in time .

If there is any problems in warranty period , pls contact us firstly, we will solve the problems for customer.

Guarantee of delivery:

Time is money!

It will take 1 working day for stock products , 2-3 working days for order products.

If there are special circumstances on delivery time, we will inform customer in time.

Service Guarantee:

We have a professional pre-sales and after-sales team to provide customers with good service.
we trust we will be your trustworthy supplier in china if we have a chance to serve you.

Exchange / Return Policy:

We accept exchange or return within 7days if the goods you received has problems.
About refund, We need to check the goods whether is in the same condition we sent after we received the return, if no problems , we will refund .

Contact us:

Mobile/Whatsapp: +86 138 2744 1621

Wechat : Invshop168

Skype : candychen88

Email : winnihk88@winnihk.com

invshop@163.com

Quality Assurance:

Quality is our culture!

We will take each customer's order seriously and responsibly.

Each item will be tested ok by testing tools before shipment .

Warranty of Products:

90days for new products ,60days for secondhand products.

After you receive the parcel , remember to install it on your equipment in time .

If there is any problems in warranty period , pls contact us firstly, we will solve the problems for customer.

Guarantee of delivery:

Time is money!

It will take 1 working day for stock products , 2-3 working days for order products.

If there are special circumstances on delivery time, we will inform customer in time.

Service Guarantee:

We have a professional pre-sales and after-sales team to provide customers with good service.
we trust we will be your trustworthy supplier in china if we have a chance to serve you.

Exchange / Return Policy:

Mobile/Whatsapp: +86 138 2744 1621

Wechat : Invshop168

Skype : candychen88

Email : winnihk88@winnihk.com

invshop@163.com

Customer's Reviews:

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/10/2024, By

It seems all right

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/10/2024, By

It's new. I think it's original

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/10/2024, By

ok,can work

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/10/2024, By

nice, It's original and brand new

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/08/2024, By

customer service is very professional

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/08/2024, By

receiving speed is satisfactory

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/08/2024, By

not half bad

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/08/2024, By

Affordable product

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/08/2024, By

customer service reply timely, good attitude

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/08/2024, By

delivery speed is fast

<<3 4 567 8 9...15>>

Previous： LS032B7DD02 Sharp 3.2inch 336*536 LCD DISPLAY

Next：LS084X5LX02 Sharp 8.4" LCD PANEL Car display screen

LS052R1SX04 Summary

The Sharp LS052R1SX04 is a 5.2-inch display module utilizing Si-OLED technology. It delivers sharp Quad-HD+ (1440 × 2560) imagery with a typical brightness of 450 cd/m² and a 1000:1 contrast ratio. The module features a WLED backlight system, a 60Hz refresh rate, and operates via a MIPI interface. Its overall viewing angle is listed as 80/80/80/80 with a "full viewing angle" designation. This model is indicated to be currently in production.

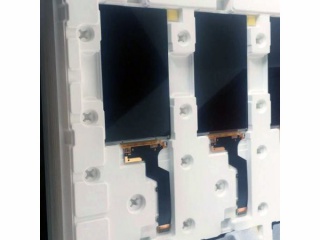

LS052R1SX04 Photos
