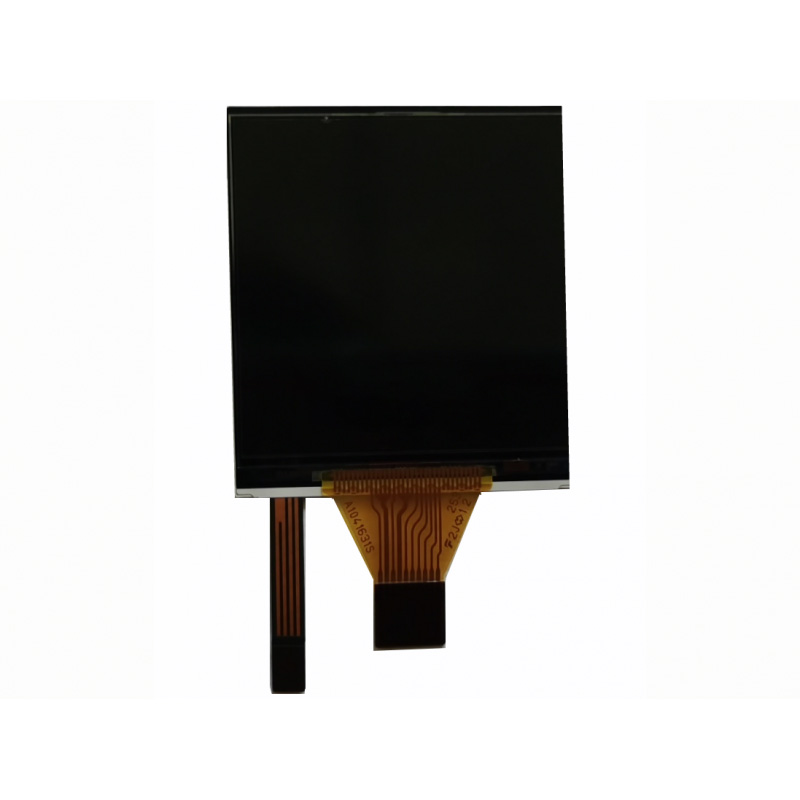

LPM013M126C 1.28 inch 176*176 LCD PANEL
The JDI LPM013M126C is a 1.28-inch square TFT-LCD with 176x176 resolution, SPI interface, and a reflective WLED front light. It's designed for instrumentation and operates from -20 to 70°C.
Price: ¥10123.20 ¥8998.40 / piece
Calculate shipping price
WINNI (HK) ELECTRONIC CO., LIMITED
+86 13827441621
Invshop168
RM 3, 27/F HO KING COMM CTR NO 2-16 FA YUEN ST MONG KOK KL
All Categories
- Industrial LCD display
-
Industrial Products
- DC Servo Drive
- AC Servo Drive
- other
- Heidelberg
- FANUC
- IFM
- Meter
- CCD
- Membrane Keypad
- Film
- YOKOGAWA Module
- Card
- ABB
- MITSUBISHI
- FANUC
- KEYENCE
- BECKHOFF
- Honeywell
- HOLLYSYS
- FUJI servo drives
- HP
- solenoid valve
- thermostat
- Siemens adapter
- color oscilloscope
- Fujitsu connector
- CHELIC
- SMC
- CISCO Module
- INTEL
- Key board
- FAIRCHILD
- Motherboard
- Board
- Bearing
- other
- Control Panel
- Contactor
- Circuit
- OMRON
- Relay
- Controller
- Photoelectric Switch
- Photoelectric Sensor
- Original
- Fan
- Motor Driver
- Limit Switch
- Amplifier
- power supply
- LENZE
- Cable
- Encoder
- Sensor
- Transformer
- Fiber Optic Sensor
- Protection Relay
- Temperature Controller
- Proximity Switch
- Switch Sensor
- Siemens
- Industrial board
- HMI Touch Glass
-
HMI Full Machine Whole unit
- OMRON HMI Touch Panel
- Siemens HMI Touch Panel
- Mitsubishi HMI Touch Panel
- Allen-Bradley automation HMI Touch Panel
- DELTA HMI Touch Panel
- EVIEW DELTA HMI Touch Panel
- KINCO DELTA HMI Touch Panel
- HITECH HMI Touch Panel
- WEINTECK HMI Touch Panel
- TECVIEW HMI Touch Panel
- WEINVIEW HMI Touch Panel
- PRO-FACE HMI Touch Panel
- SIMATIC HMI Touch Panel
- AMPIRE HMI Touch Panel
- HEIDELBERG HMI Touch Panel
- PANASONIC HMI Touch Panel
- PATLITE HMI Touch Panel
- KYOCERA HMI Touch Panel
- KEYENCE HMI Touch Panel
- WEINVIEW HMI Touch Panel
- HITECH HMI Touch Panel
- FUJI HMI Touch Panel
- HAKKO HMI Touch Panel
- SCHNEIDER HMI Touch Panel
- SAMKOON touch panel
- other
- Module
- lcd inverter
- Membrane Keypad Switch
- Winni Touch Screens
- Frequency Inverter
- Servo Motor
- PLC

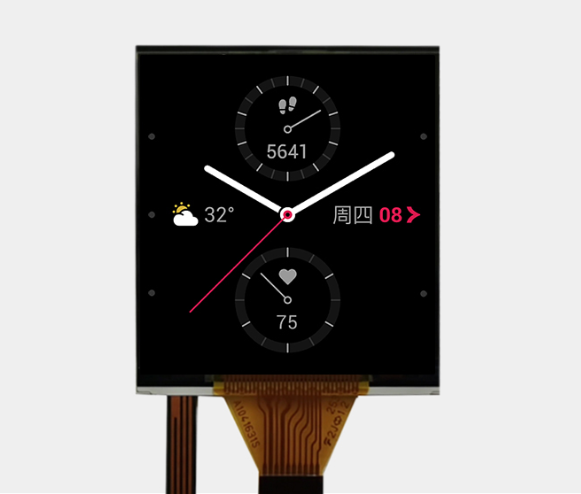

LPM013M126C 1.28 inch 176*176 LCD PANEL
LPM013M126C Datasheets Download
Name: LPM013M126C.pdfType
LCD PANEL
Brand
Model
LPM013M126C
PANEL NEW NL6448BC33-64R NEC LCD PANEL
| Model: | LPM013M126C | Panel-type: | LTPS TFT-LCD |
| Size: | 1.28 inch | Resolution: | 176(RGB)×176 194PPI |
| Display Area: | 23.0208(h)×23.0208(v) mm | Outline Size: | 26.62(h)×29.72(v) ×1.6(d) mm |
| Brightness: | 10 cd/m² (Typ.) | Contrast Ratio: | 30:1 (Typ.) |
| Viewing Angle: | 65/65/65/65 (Typ.)(CR≥2) | Operating Mode : | ECB, Normally Black, Reflective |
| Frequency: | 60Hz | Response Time: | 4/6 (Typ.)(Tr/Td) |
| Signal Interface: | SPI , 10 pins FPC | Backlight type: | 1S2P WLED , Without Driver |
| Touch Screen: | without | Operating Temp.: | -10 ~ 70 °C |
PANEL NEW NL6448BC33-64R NEC LCD PANEL
| Model: | LPM013M126C | Panel-type: | LTPS TFT-LCD |
| Size: | 1.28 inch | Resolution: | 176(RGB)×176 194PPI |
| Display Area: | 23.0208(h)×23.0208(v) mm | Outline Size: | 26.62(h)×29.72(v) ×1.6(d) mm |
| Brightness: | 10 cd/m² (Typ.) | Contrast Ratio: | 30:1 (Typ.) |
| Viewing Angle: | 65/65/65/65 (Typ.)(CR≥2) | Operating Mode : | ECB, Normally Black, Reflective |
| Frequency: | 60Hz | Response Time: | 4/6 (Typ.)(Tr/Td) |
| Signal Interface: | SPI , 10 pins FPC | Backlight type: | 1S2P WLED , Without Driver |
| Touch Screen: | without | Operating Temp.: | -10 ~ 70 °C |
Quality Assurance:
Quality is our culture!
We will take each customer's order seriously and responsibly.
Each item will be tested ok by testing tools before shipment .
Warranty of Products:
90days for new products ,60days for secondhand products.
After you receive the parcel , remember to install it on your equipment in time .
If there is any problems in warranty period , pls contact us firstly, we will solve the problems for customer.
Guarantee of delivery:
Time is money!
It will take 1 working day for stock products , 2-3 working days for order products.
If there are special circumstances on delivery time, we will inform customer in time.
Service Guarantee:
We have a professional pre-sales and after-sales team to provide customers with good service.
we trust we will be your trustworthy supplier in china if we have a chance to serve you.
we trust we will be your trustworthy supplier in china if we have a chance to serve you.
Exchange / Return Policy:
We accept exchange or return within 7days if the goods you received has problems.
About refund, We need to check the goods whether is in the same condition we sent after we received the return, if no problems , we will refund .
About refund, We need to check the goods whether is in the same condition we sent after we received the return, if no problems , we will refund .
PANEL NEW NL6448BC33-64R NEC LCD PANEL
| Model: | LPM013M126C | Panel-type: | LTPS TFT-LCD |
| Size: | 1.28 inch | Resolution: | 176(RGB)×176 194PPI |
| Display Area: | 23.0208(h)×23.0208(v) mm | Outline Size: | 26.62(h)×29.72(v) ×1.6(d) mm |
| Brightness: | 10 cd/m² (Typ.) | Contrast Ratio: | 30:1 (Typ.) |
| Viewing Angle: | 65/65/65/65 (Typ.)(CR≥2) | Operating Mode : | ECB, Normally Black, Reflective |
| Frequency: | 60Hz | Response Time: | 4/6 (Typ.)(Tr/Td) |
| Signal Interface: | SPI , 10 pins FPC | Backlight type: | 1S2P WLED , Without Driver |
| Touch Screen: | without | Operating Temp.: | -10 ~ 70 °C |
Customer's Reviews:
Price:
![]()
![]()
![]()
![]()
![]()
Quality:
![]()
![]()
![]()
![]()
![]()
Ease of use:
![]()
![]()
![]()
![]()
![]()
Delivery speed:
![]()
![]()
![]()
![]()
![]()
OverALL Rating:
![]()
![]()
![]()
![]()
![]()
04/20/2024, By
04/20/2024, By
Great
Price:
![]()
![]()
![]()
![]()
![]()
Quality:
![]()
![]()
![]()
![]()
![]()
Ease of use:
![]()
![]()
![]()
![]()
![]()
Delivery speed:
![]()
![]()
![]()
![]()
![]()
OverALL Rating:
![]()
![]()
![]()
![]()
![]()
04/20/2024, By
04/20/2024, By
Great deal! Would buy from again
Price:
![]()
![]()
![]()
![]()
![]()
Quality:
![]()
![]()
![]()
![]()
![]()
Ease of use:
![]()
![]()
![]()
![]()
![]()
Delivery speed:
![]()
![]()
![]()
![]()
![]()
OverALL Rating:
![]()
![]()
![]()
![]()
![]()
04/20/2024, By
04/20/2024, By
Excellent, many thanks
Price:
![]()
![]()
![]()
![]()
![]()
Quality:
![]()
![]()
![]()
![]()
![]()
Ease of use:
![]()
![]()
![]()
![]()
![]()
Delivery speed:
![]()
![]()
![]()
![]()
![]()
OverALL Rating:
![]()
![]()
![]()
![]()
![]()
04/20/2024, By
04/20/2024, By
NO PROBLEM. GOOD WORK
Price:
![]()
![]()
![]()
![]()
![]()
Quality:
![]()
![]()
![]()
![]()
![]()
Ease of use:
![]()
![]()
![]()
![]()
Delivery speed:
![]()
![]()
![]()
![]()
![]()
OverALL Rating:
![]()
![]()
![]()
![]()
04/20/2024, By
04/20/2024, By
Fast delivery
Price:
![]()
![]()
![]()
![]()
![]()
Quality:
![]()
![]()
![]()
![]()
![]()
Ease of use:
![]()
![]()
![]()
![]()
![]()
Delivery speed:
![]()
![]()
![]()
![]()
![]()
OverALL Rating:
![]()
![]()
![]()
![]()
![]()
04/20/2024, By
04/20/2024, By
Worked Great
Price:
![]()
![]()
![]()
![]()
![]()
Quality:
![]()
![]()
![]()
![]()
![]()
Ease of use:
![]()
![]()
![]()
![]()
![]()
Delivery speed:
![]()
![]()
![]()
![]()
![]()
OverALL Rating:
![]()
![]()
![]()
![]()
![]()
04/20/2024, By
04/20/2024, By
Good quality products
Price:
![]()
![]()
![]()
![]()
![]()
Quality:
![]()
![]()
![]()
![]()
![]()
Ease of use:
![]()
![]()
![]()
![]()
![]()
Delivery speed:
![]()
![]()
![]()
![]()
![]()
OverALL Rating:
![]()
![]()
![]()
![]()
![]()
04/20/2024, By
04/20/2024, By
good
Price:
![]()
![]()
![]()
![]()
![]()
Quality:
![]()
![]()
![]()
![]()
![]()
Ease of use:
![]()
![]()
![]()
![]()
![]()
Delivery speed:
![]()
![]()
![]()
![]()
![]()
OverALL Rating:
![]()
![]()
![]()
![]()
![]()
04/20/2024, By
04/20/2024, By
item as described and packaged well
Price:
![]()
![]()
![]()
![]()
![]()
Quality:
![]()
![]()
![]()
![]()
![]()
Ease of use:
![]()
![]()
![]()
![]()
![]()
Delivery speed:
![]()
![]()
![]()
![]()
OverALL Rating:
![]()
![]()
![]()
![]()
04/20/2024, By
04/20/2024, By
Order received in good condition. Would definitely use this seller again for any future orders.
LPM013M126C Summary
This 1.28-inch LTPS TFT-LCD module features a unique 1:1 aspect ratio and 176x176 resolution. It utilizes a reflective Memory-in-Pixel (MIP) display mode with a white LED front light, enabling low power consumption (typical 15mA backlight current) and outdoor visibility. With an SPI interface, 60Hz refresh rate, and a compact design (26.62x29.72mm), it targets applications like instrumentation and wearable devices. Its optical performance includes 10 cd/m² brightness and covers 32% of sRGB color space.
