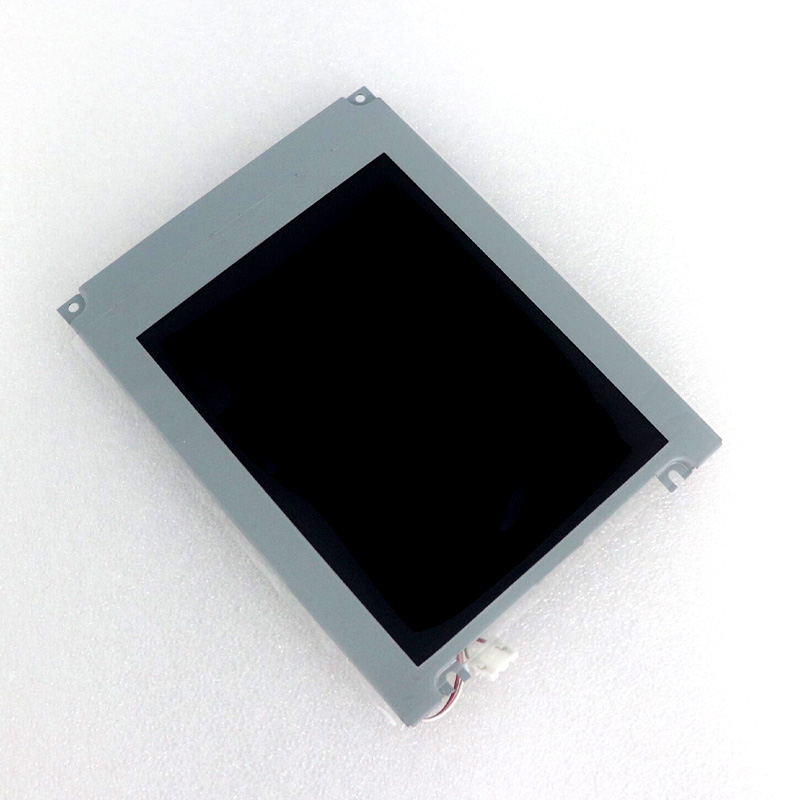

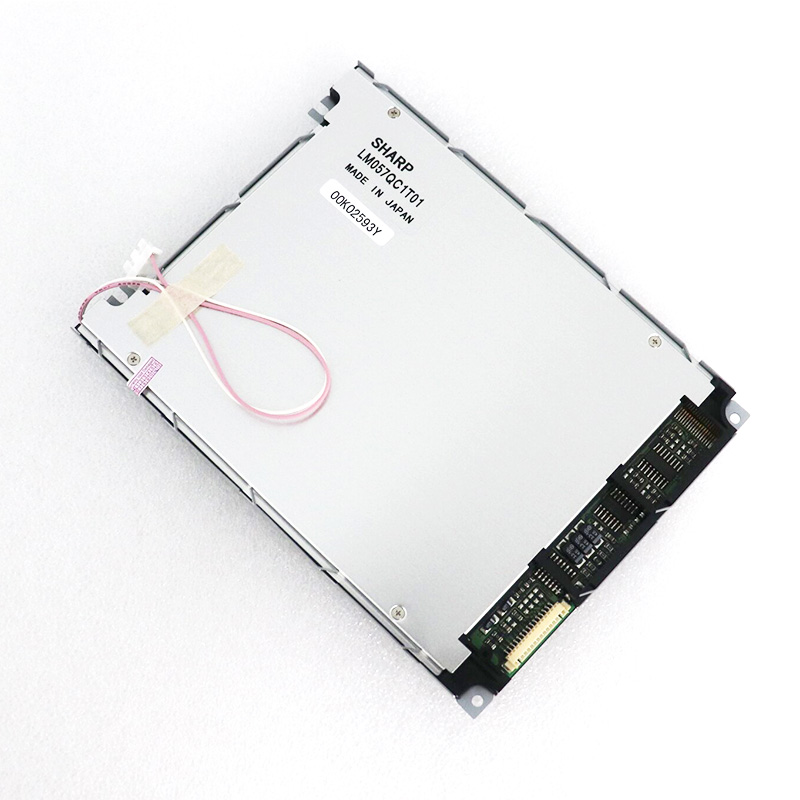

LM057QC1T01 5.7"320*240 FSTN-LCD for SHARP

LM057QC1T01 5.7"320*240 FSTN-LCD for SHARP

The Sharp LM057QC1T01 is a 5.7-inch CSTN color LCD module with QVGA (320x240) resolution, 180 nits brightness, and a CCFL backlight, designed for industrial applications .

Price: ~~$120.00~~ $117.00 / piece

Quantity:		Unit(s) MOQ: 1



Add to wish list

Calculate shipping price

WINNI (HK) ELECTRONIC CO., LIMITED

Invshop168

+8613827441621

winnihk88@winnihk.com

facebook:invshop@163.com

youtube:invshop-com

linked:WINNI (HK) ELECTRONIC CO., LIMITED

Require:*

Product Model*	Target price	Qty *

Message

Your contact info:

Additional info:

Name: *

1. Quote with shipping freight?

Email : *

Phone:

2. Which carrier do you perfert?

Company:

	Fedex		UPS		DHL
	TNT		other

Country:*

All Categories

-81%
OFF

$55.00

$100.00

Products Details

Inventory Information

Seller Guarantees

Feedback

Reveiw

LM057QC1T01 Datasheets Download

Name: LM057QC1T01.pdf

lcd panel

Brand

SHARP

Model

LM057QC1T01

LM057QC1T01 5.7"320*240 FSTN-LCD for SHARP

Model:	LM057QC1T01	Panel-type:	FSTN-LCD, LCM
Size:	5.7 inch	Resolution:	320(RGB)×240 (QVGA)
Display Area:	115.2 × 86.4 (H×V)	Outline Size:	154.6 × 114.8 (H×V×D)
Brightness:	180 cd/m² (Typ.)	Contrast Ratio:	40:1 (Typ.) (TM)
Viewing Angle:	50/50/35/60 (Typ.)(CR≥2)	Display Mode:	STN, Normally Black, Transmissive
Display Colors:	6 o'clock	Response Time:	450/100 (Typ.)(Tr/Td) ms

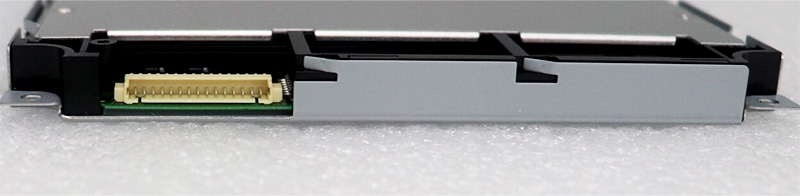

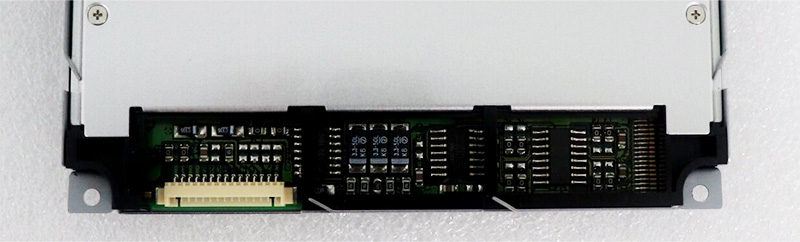

Signal Interface:	Parallel Data (8-bit) , 15 pins Connector	Backlight type:	1 pcs CCFL , 25K hours , No Driver
Touch Screen:	without	Operating Temp.:	-0 ~ 50 °C

6 o'clock

LM057QC1T01 5.7"320*240 FSTN-LCD for SHARP

Model:	LM057QC1T01	Panel-type:	FSTN-LCD, LCM
Size:	5.7 inch	Resolution:	320(RGB)×240 (QVGA)
Display Area:	115.2 × 86.4 (H×V)	Outline Size:	154.6 × 114.8 (H×V×D)
Brightness:	180 cd/m² (Typ.)	Contrast Ratio:	40:1 (Typ.) (TM)
Viewing Angle:	50/50/35/60 (Typ.)(CR≥2)	Display Mode:	STN, Normally Black, Transmissive
Display Colors:	6 o'clock	Response Time:	450/100 (Typ.)(Tr/Td) ms
Signal Interface:	Parallel Data (8-bit) , 15 pins Connector	Backlight type:	1 pcs CCFL , 25K hours , No Driver
Touch Screen:	without	Operating Temp.:	-0 ~ 50 °C

6 o'clock

Quality: test ok before ship it
RMA Policy: RMA 3 month
Quantity: 1
Sample: Paid Sample
Stock Location: China
Delivery: WorldWide
Lead Time: 3-5 Days
Price Term: T/T, Western Union, MoneyGram, PayPal, Escrow etc
Remark: NEW
Weight: 0.500Kg

Quality Assurance:

Quality is our culture!

We will take each customer's order seriously and responsibly.

Each item will be tested ok by testing tools before shipment .

Warranty of Products:

90days for new products ,60days for secondhand products.

After you receive the parcel , remember to install it on your equipment in time .

If there is any problems in warranty period , pls contact us firstly, we will solve the problems for customer.

Guarantee of delivery:

Time is money!

It will take 1 working day for stock products , 2-3 working days for order products.

If there are special circumstances on delivery time, we will inform customer in time.

Service Guarantee:

We have a professional pre-sales and after-sales team to provide customers with good service.
we trust we will be your trustworthy supplier in china if we have a chance to serve you.

Exchange / Return Policy:

We accept exchange or return within 7days if the goods you received has problems.
About refund, We need to check the goods whether is in the same condition we sent after we received the return, if no problems , we will refund .

Contact us:

Mobile/Whatsapp: +86 138 2744 1621

Wechat : Invshop168

Skype : candychen88

Email : winnihk88@winnihk.com

invshop@163.com

LM057QC1T01 5.7"320*240 FSTN-LCD for SHARP

Model:	LM057QC1T01	Panel-type:	FSTN-LCD, LCM
Size:	5.7 inch	Resolution:	320(RGB)×240 (QVGA)
Display Area:	115.2 × 86.4 (H×V)	Outline Size:	154.6 × 114.8 (H×V×D)
Brightness:	180 cd/m² (Typ.)	Contrast Ratio:	40:1 (Typ.) (TM)
Viewing Angle:	50/50/35/60 (Typ.)(CR≥2)	Display Mode:	STN, Normally Black, Transmissive
Display Colors:	6 o'clock	Response Time:	450/100 (Typ.)(Tr/Td) ms
Signal Interface:	Parallel Data (8-bit) , 15 pins Connector	Backlight type:	1 pcs CCFL , 25K hours , No Driver
Touch Screen:	without	Operating Temp.:	-0 ~ 50 °C

6 o'clock

Customer's Reviews:

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

Great

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

Great deal! Would buy from again

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

Excellent, many thanks

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

NO PROBLEM. GOOD WORK

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

Fast delivery

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

Worked Great

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

Good quality products

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

item as described and packaged well

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

Order received in good condition. Would definitely use this seller again for any future orders.

<<12 3 4 5 6 7...15>>

Previous： LM057QC1T08 5.7"320*240 FSTN-LCD for SHARP

Next：LM050QC1T01 5"320*240 FSTN-LCD for SHARP

LM057QC1T01 Summary

This 5.7-inch display module delivers 256-color output with a 40:1 contrast ratio and a wide viewing angle . It operates at 0~50°C and features a parallel signal interface . Notably, this model is not recommended for new designs, indicating its product lifecycle stage . It has been historically used in embedded systems, interfacing with processors like the ARM7TDMI for graphical and character display .
