JULONG Z3N-TB22 Photoelectric switch sensor

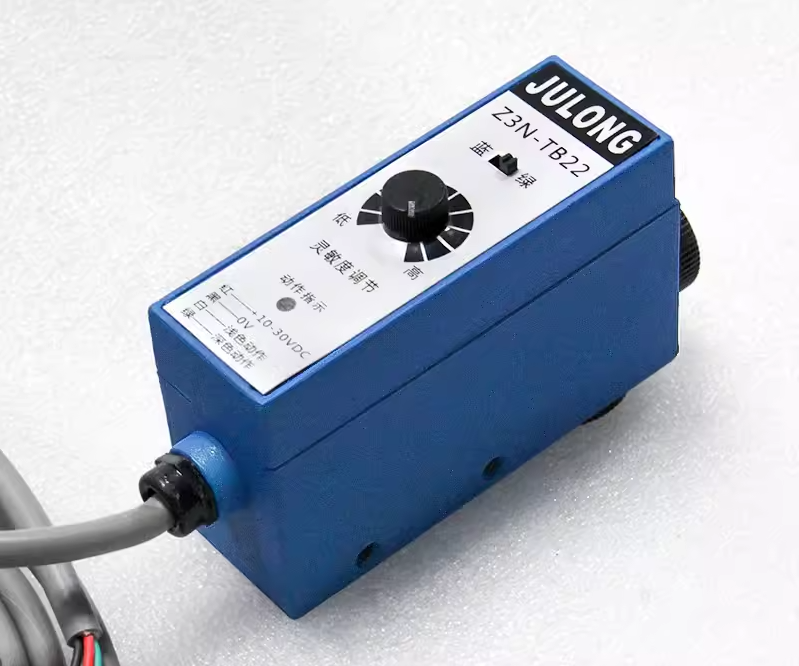

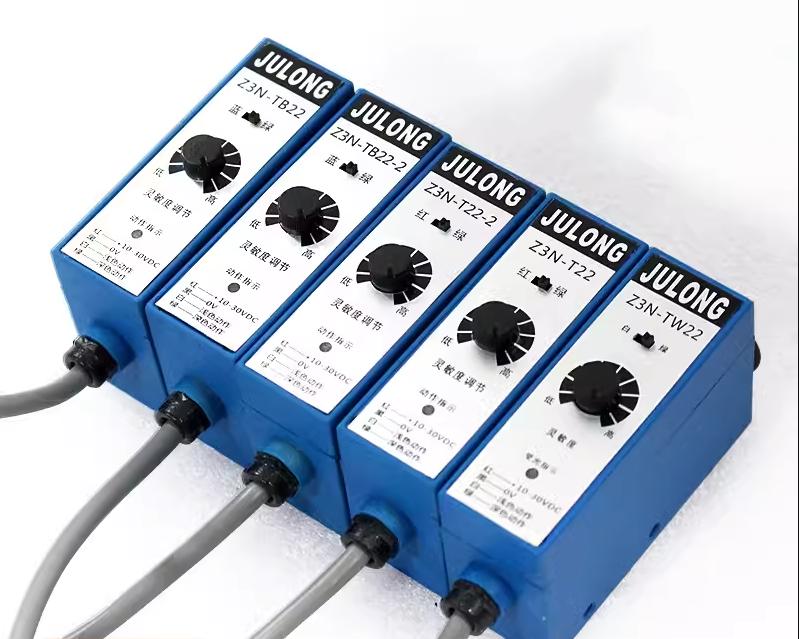

1、Z3N-TB22 Product picture

2、Z3N-TB22 Product advantage

(1) High-precision color mark detection capability:

· Wide grayscale recognition range: 30 grayscale levels from black to white can be identified at a constant scanning distance, which is suitable for scenes with high color contrast requirements.

· Accurate comparison target recognition: for targets such as printing color stripes, high-energy operation is achieved through the principle of photoelectric proximity switching to ensure target readability.

(2) Adapt to complex materials and environments:

· Multi-material compatibility: it can detect paper, plastic, and metal objects with rough, flat, or smooth surfaces to meet the needs of diverse material testing.

· Strong light interference resistance: it can still work stably in the environment of incandescent lamps <3000LX and sunlight 10000LX, and is suitable for outdoor or strong light environments.

(3) Flexible installation and commissioning:

· Flexible installation angle: the light source is perpendicular to the surface of the measured object, with an allowable deviation of ±15°, which is convenient for on-site installation and adjustment.

· The output mode is optional: it supports two output modes, bright and dark, and the sensitivity can be adjusted by a single turn to achieve personalized settings.

(4) High performance and long life:

· Fast response speed: the switching speed is up to 2kHz, and the response time is 0.1-1ms, which meets the real-time detection needs of high-speed production lines.

· Strong load capacity: the maximum load current is 200mA, and the output voltage is high ≤1.5V and low ≤0.2V to ensure stable signal transmission.
