infineon FP75R12KT3 New original MODULE

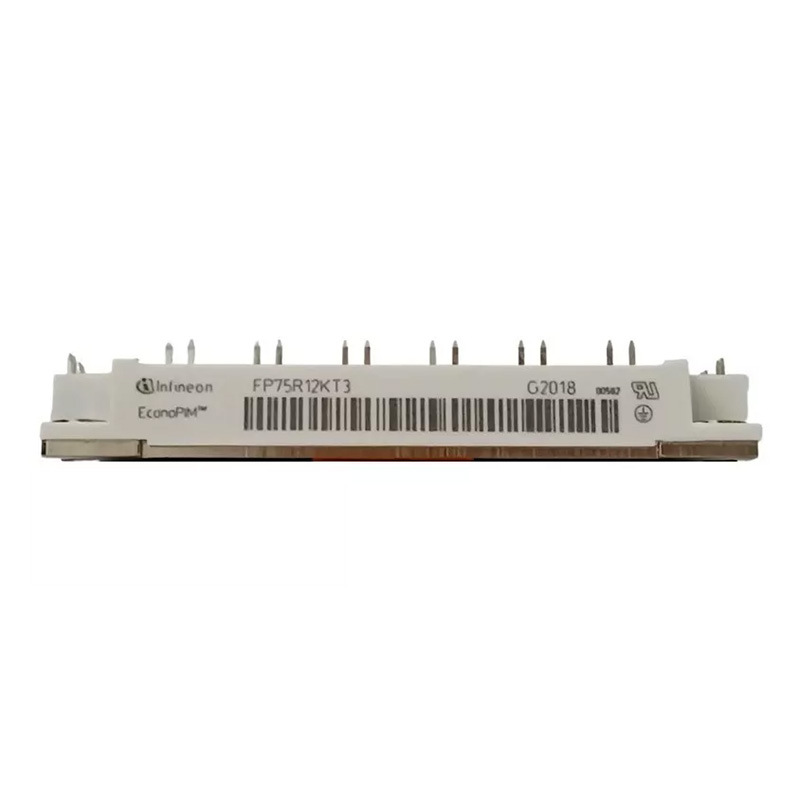

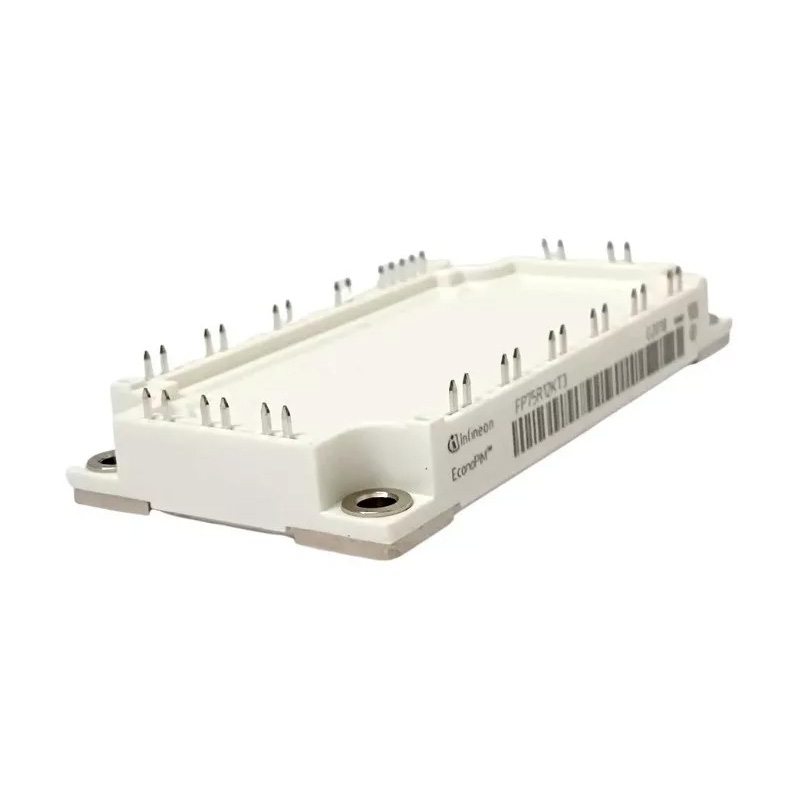

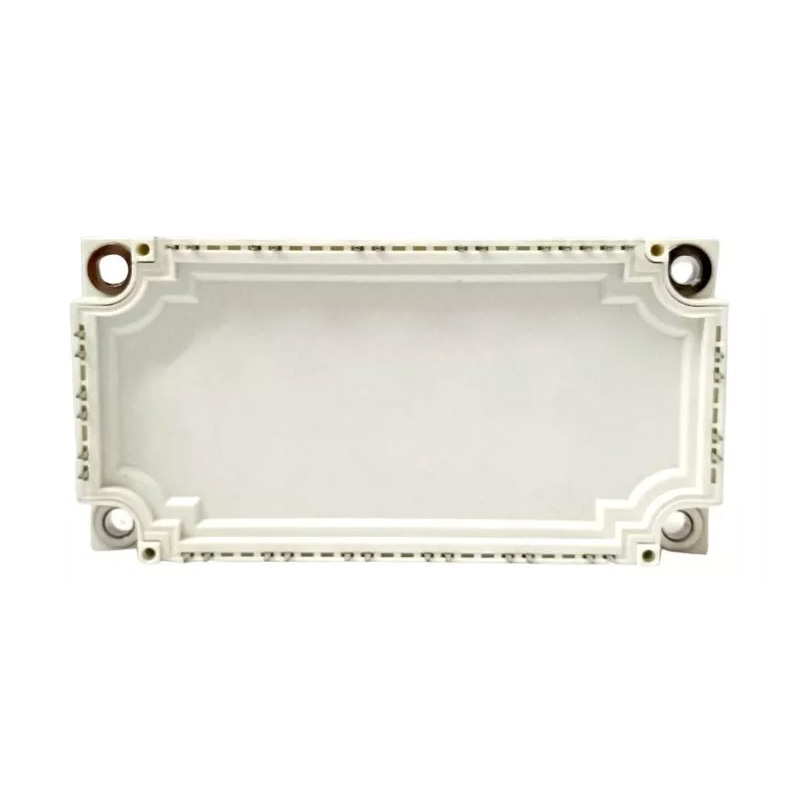

1、FP75R12KT3 Product picture

2、FP75R12KT3 Technische Parameter

· Rated voltage: 1200V

· Rated current: 75A (continuous collector current 105A)

· Saturation voltage drop: 1,7 V (typical value)

· Switching frequency: Supports switching frequencies up to 60kHz

· Operating temperature range: -40°C to +125 °C

· Thermal resistance: The thermal resistance of the junction to the shell is 0.35K/W

· Protection function: integrated rectifier and brake chopper, support overload, overvoltage and short circuit protection

3、BSM50GX120DN2 Product features

· Low switching loss:

TRENCHSTOP™ IGBT3 technology is used to reduce switching loss and improve system efficiency.

· High power density:

optimize the design of the copper substrate, enhance the thermal diffusion capacity, and adapt to high-power applications.

· Compact design:

integrated three-phase input rectifier to reduce system complexity and cost.

· Compatibility:

Comply with RoHS standards and support lead-free welding process.
