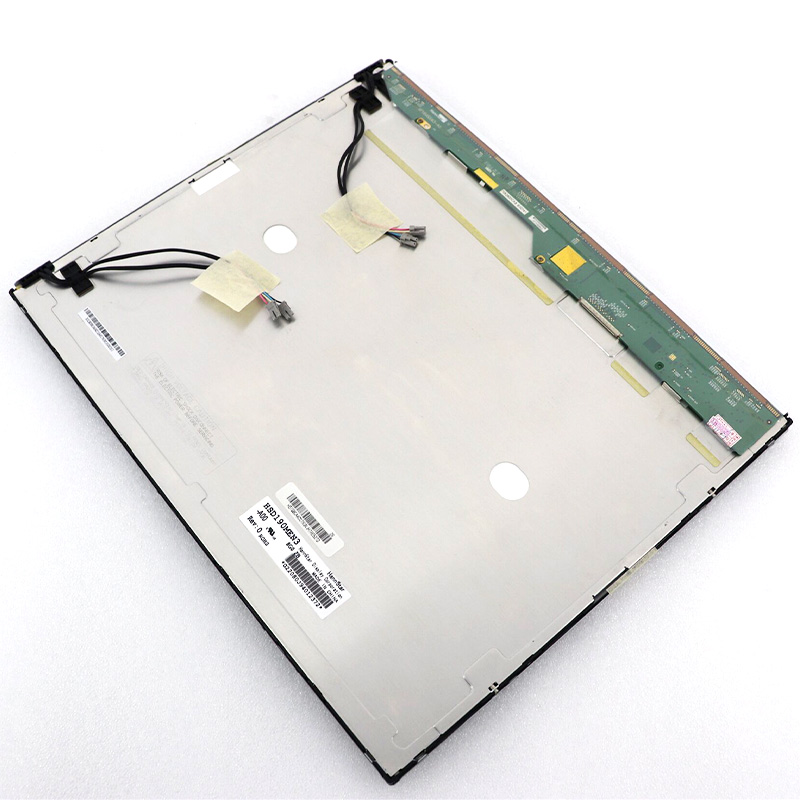

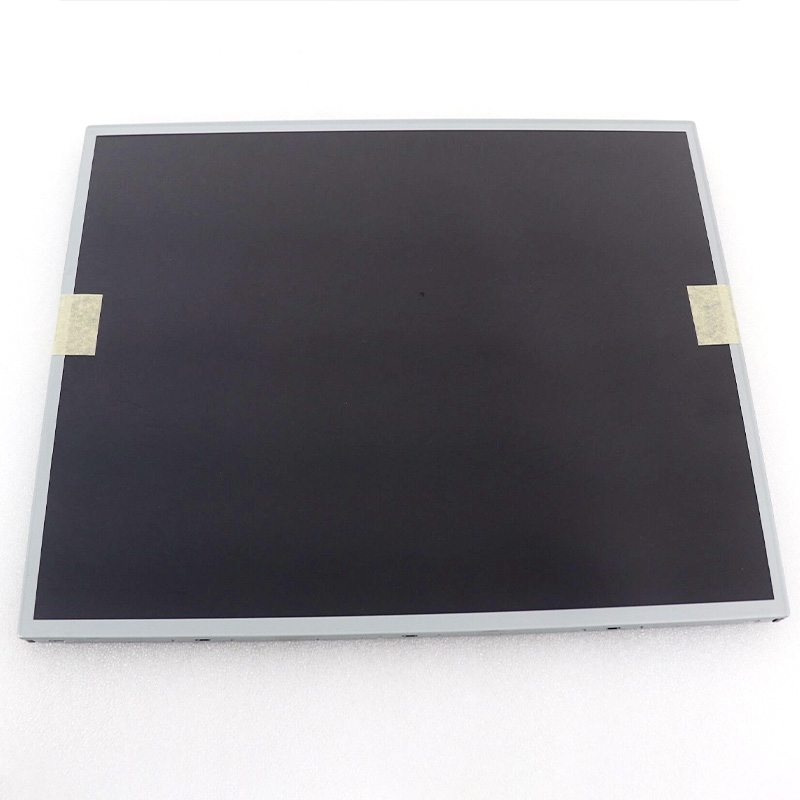

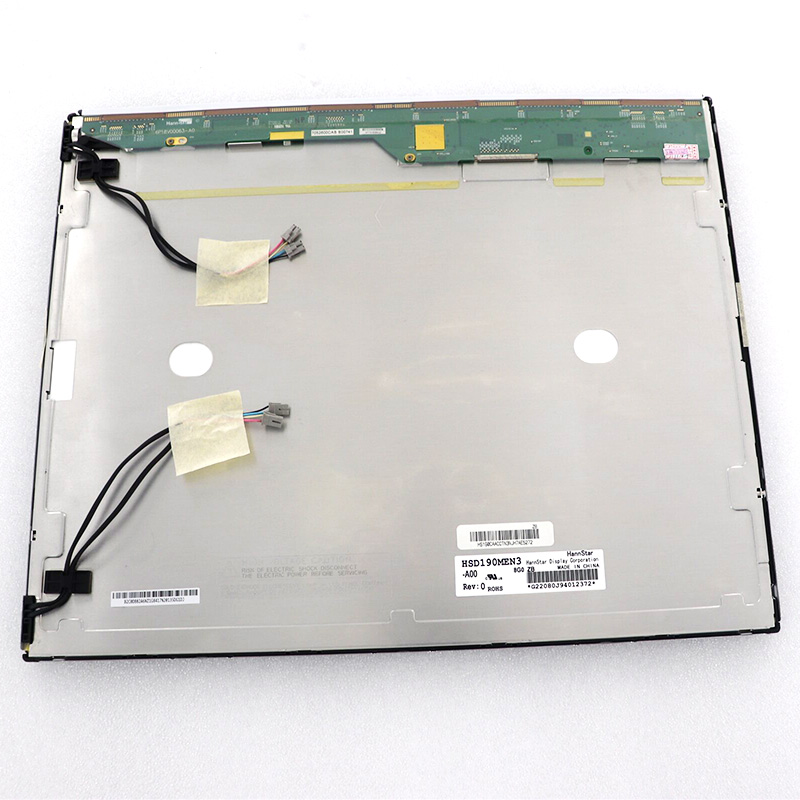

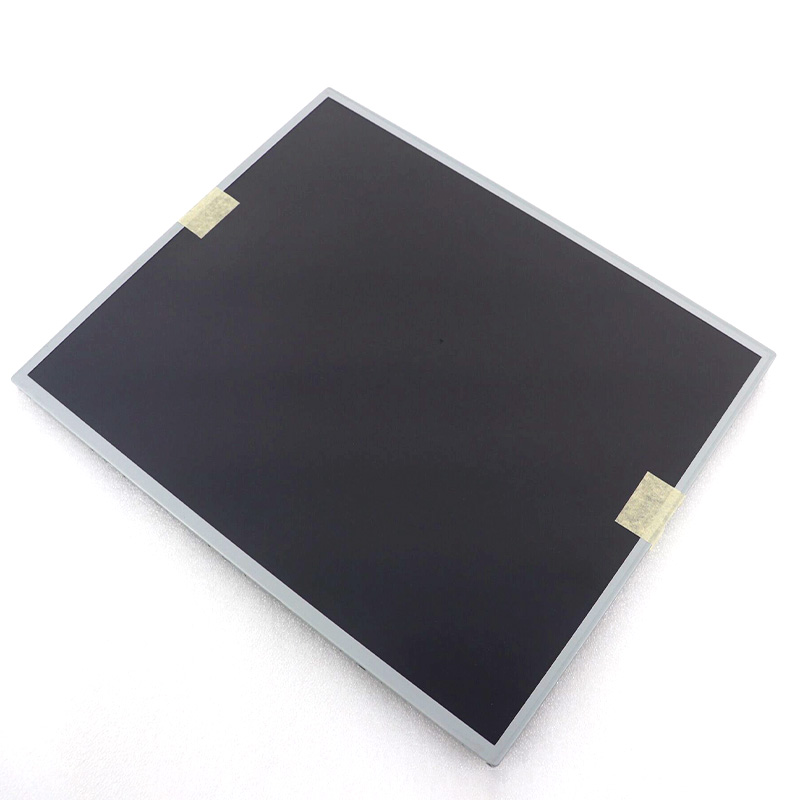

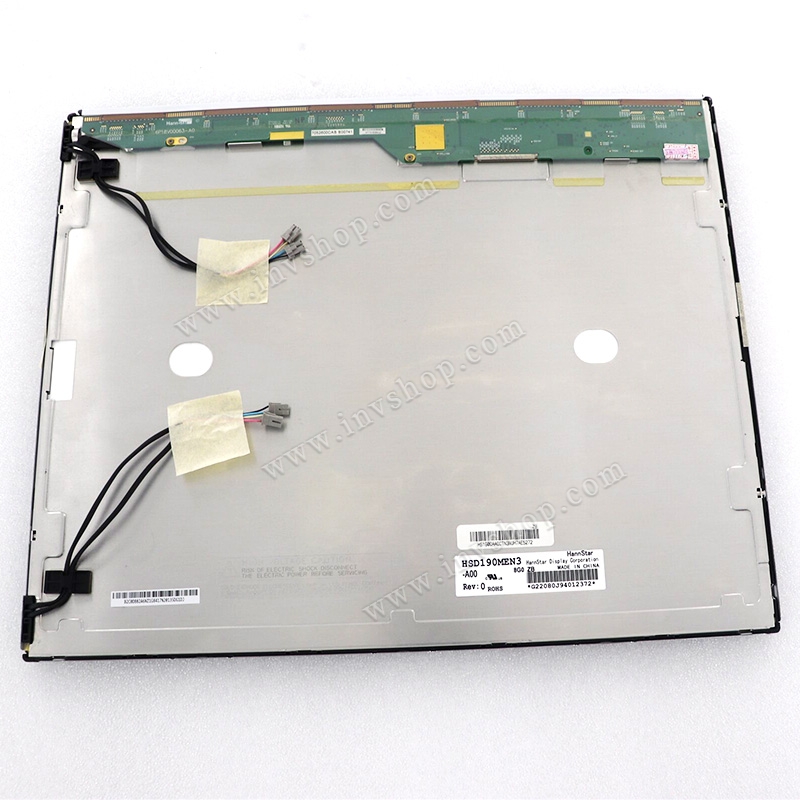

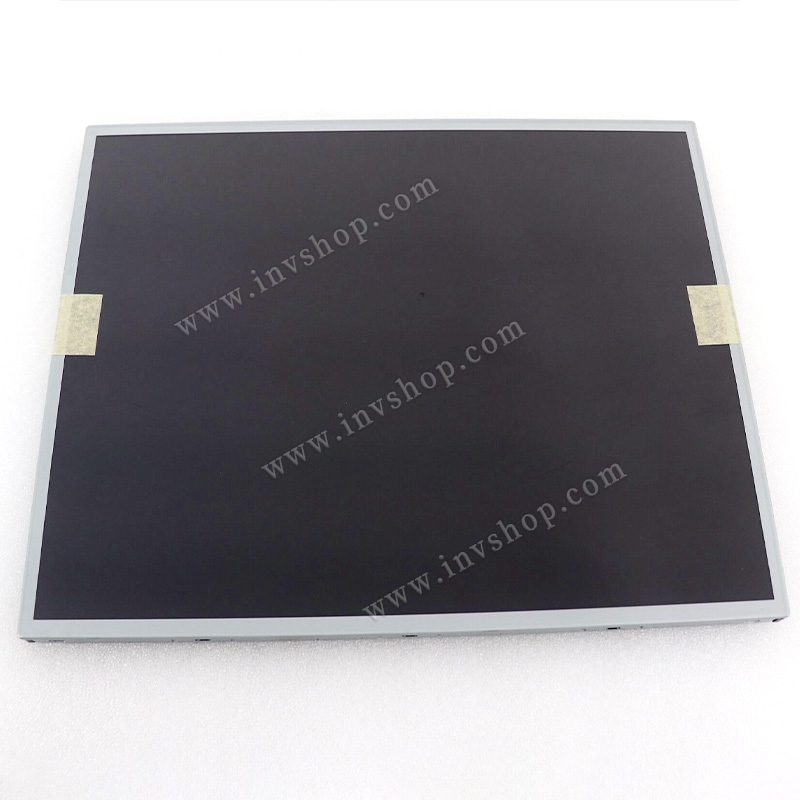

HSD190MEN3 HannStar 19 "TFT-LCD-Bildschirm 1280 * 1024 Anzeige

The HSD190MEN3 is a 19.0-inch a-Si TFT-LCD display module from HannStar, designed for monitor and industrial applications . It delivers an SXGA resolution of 1280x1024 pixels with a 5:4 aspect ratio, utilizing TN (Twisted Nematic) technology in a normally white transmissive mode for consistent performance . The module provides a typical brightness of 300 cd/m² and a contrast ratio of 1000:1, supporting 16.7 million colors . It features fast response times of 1.2/3.8 ms (Tr/Td) and wide viewing angles of 85/85/80/80 degrees . The display uses a CCFL backlight with 4 lamps rated for 40,000 hours and requires an external driver . It employs a 30-pin LVDS (2 ch, 8-bit) interface operating at 5.0V . The panel has an active area of 376.32 x 301.056 mm within an outline of 396 x 324 x 17 mm, featuring a matte, hard-coated surface (3H) for reduced glare . It operates in temperatures from 0°C to 50°C, making it suitable for desktop monitors, AV terminals, and industrial control systems .
