Good Quality for  M.NT68676.2A LCD Controller Board HDMI+DVI+VGA+Audio

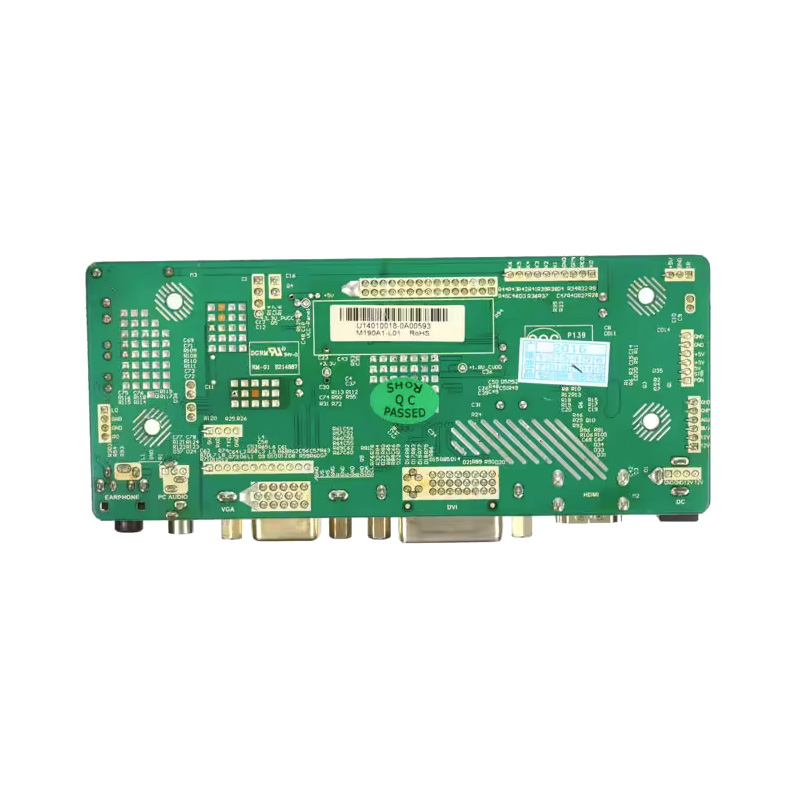

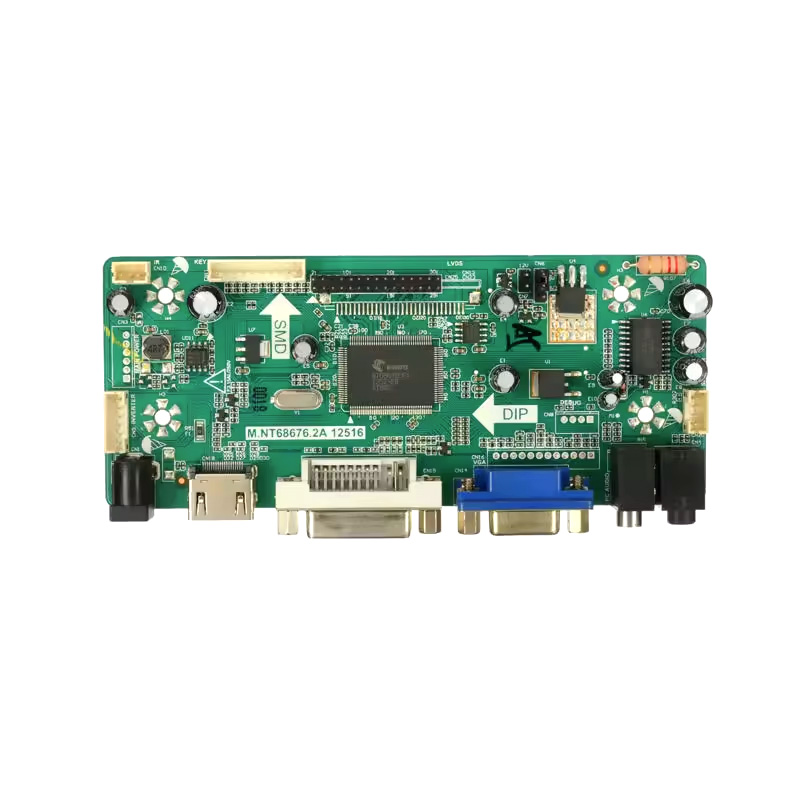

1、M.NT68676.2A Product picture

2、M.NT68676.2A Technical specifications

· OSD languages: simplified Chinese, traditional Chinese, English, French, German, Italian, Spanish, Portuguese, Japanese, Korean (optional)

· Power supply requirements: 12VDC/12V (built-in)/12V, 5V (built-in)/12V, 5V, 5VSB (built-in)

· Panel power supply: 3.3V/5V/12V

· PCB size: 139mm (L)×58mm(W)×17mm(H)

· Button functions: power, menu, volume up/down, adjust/exit

2、6ES7155-6AU01-0CN0 Main features

(1) High resolution support:

· The maximum supported resolution is 2048×1152, compatible with 1920×1080 (FHD) and below resolutions, suitable for IPS screens from 11.6 inches to 17.3 inches.

· Support single/dual LVDS interface (8 bits) to meet the needs of different panels.

(2) Multi-signal input:

· Support VGA, DVI, HDMI video input, and audio input, and can flexibly connect multiple signal sources.

· The audio output power is up to 2×1W (8Ω), the frequency response range is 100Hz~15kHz, and the sound quality is clear.

(3) Dynamic control function:

· Integrate dynamic contrast control, headphone input and digital volume adjustment functions to improve the user experience.

(4) Automatic synchronization and low power consumption:

· Support automatic synchronization with the computer, horizontal/vertical synchronization signals that need to be separated.

· The standby power consumption is less than 0.5W, which meets energy-saving standards.
