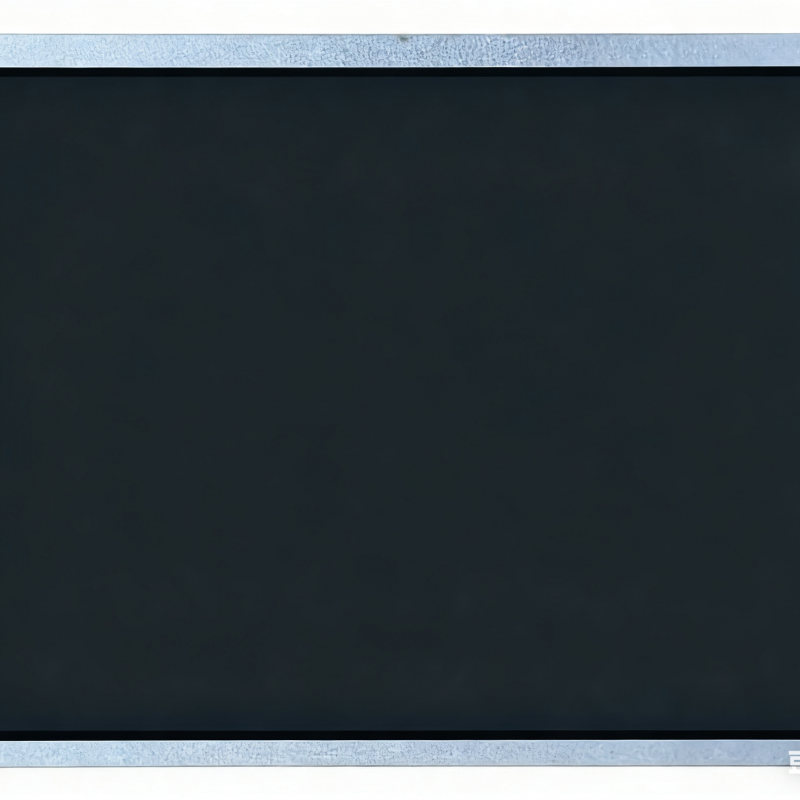

G104X1-L04 C1 neu Für 10,4" Chi Mei 1024 * 768 LCD Display G104X1-L04 Rev.C1
G104X1-L04 Rev.C1 Datasheets Download
Name: G104X1-L04 Rev.C1.pdfTyp
LCD Screen Display Panel
Marke
Original
Modell
G104X1-L04 Rev.C1
neu Für 10,4" Chi Mei 1024 * 768 LCD Display G104X1-L04 Rev.C1
Zustand: Neu
Garantie: 90 tage
| Brand | Innolux |
| Model | G104X1-L04 |
| Panel-type | a-Si TFT-LCD, LCM |
| Size | 10.4" |
| Resolution | 1024(RGB)×768 [XGA] |
| Aspect Ratio | 4:3 (H:V) |
| Dot Pitch(mm) |
0.0685×0.2055 (H×V)mm |
| Pixel Pitch(mm) | 0.2055×0.2055 (H×V)mm |
| Display Area |
210.4(H) × 157.8(V)mm |
| Bezel Opening |
215.4(H) × 161.8(V)mm |
| Outline Size |
225.5(H) × 176.3(V)mm |
| Surface | Landscape type |
| Display Mode | Super MVA, Normally Black, Transmissive |
| Brightness | 500 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Response Time | 14/11 (Typ.)(Tr/Td) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
| Best View on | Symmetry |
| Display Colors | 262K/16.2M 55% NTSC |
| Frequency | - |
| Lamp Type | WLED , 50K hours , With LED Driver |
| Signal Interface | 30 pins LVDS (1 ch, 6/8-bit) , Connector |
| Touch Screen | WITHOUT |
| Input Voltage | 3.3V (Typ.) |
| Operating Temp | -30~ 80 °C |
| Storage | -30 ~ 80 °C |
neu Für 10,4" Chi Mei 1024 * 768 LCD Display G104X1-L04 Rev.C1
Zustand: Neu
Garantie: 90 tage
| Brand | Innolux |
| Model | G104X1-L04 |
| Panel-type | a-Si TFT-LCD, LCM |
| Size | 10.4" |
| Resolution | 1024(RGB)×768 [XGA] |
| Aspect Ratio | 4:3 (H:V) |
| Dot Pitch(mm) |
0.0685×0.2055 (H×V)mm |
| Pixel Pitch(mm) | 0.2055×0.2055 (H×V)mm |
| Display Area |
210.4(H) × 157.8(V)mm |
| Bezel Opening |
215.4(H) × 161.8(V)mm |
| Outline Size |
225.5(H) × 176.3(V)mm |
| Surface | Landscape type |
| Display Mode | Super MVA, Normally Black, Transmissive |
| Brightness | 500 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Response Time | 14/11 (Typ.)(Tr/Td) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
| Best View on | Symmetry |
| Display Colors | 262K/16.2M 55% NTSC |
| Frequency | - |
| Lamp Type | WLED , 50K hours , With LED Driver |
| Signal Interface | 30 pins LVDS (1 ch, 6/8-bit) , Connector |
| Touch Screen | WITHOUT |
| Input Voltage | 3.3V (Typ.) |
| Operating Temp | -30~ 80 °C |
| Storage | -30 ~ 80 °C |
Die kunden.:
Der Preis:
![]()
![]()
![]()
![]()
![]()
Qualität:
![]()
![]()
![]()
![]()
![]()
Leicht:
![]()
![]()
![]()
![]()
![]()
BEI der Geschwindigkeit:
![]()
![]()
![]()
![]()
![]()
Allgemeine BEWERTUNG:
![]()
![]()
![]()
![]()
![]()
08/03/2016, By Budi Farianto
08/03/2016, By Budi Farianto
The goods is great
Der Preis:
![]()
![]()
![]()
![]()
![]()
Qualität:
![]()
![]()
![]()
![]()
![]()
Leicht:
![]()
![]()
![]()
![]()
![]()
BEI der Geschwindigkeit:
![]()
![]()
![]()
![]()
![]()
Allgemeine BEWERTUNG:
![]()
![]()
![]()
![]()
![]()
08/03/2016, By Budi Farianto
08/03/2016, By Budi Farianto
The goods is good
Der Preis:
![]()
![]()
![]()
![]()
![]()
Qualität:
![]()
![]()
![]()
![]()
![]()
Leicht:
![]()
![]()
![]()
![]()
![]()
BEI der Geschwindigkeit:
![]()
![]()
![]()
![]()
![]()
Allgemeine BEWERTUNG:
![]()
![]()
![]()
![]()
![]()
08/03/2016, By Budi Farianto
08/03/2016, By Budi Farianto
The goods is good
Der Preis:
![]()
![]()
![]()
![]()
![]()
Qualität:
![]()
![]()
![]()
![]()
![]()
Leicht:
![]()
![]()
![]()
![]()
![]()
BEI der Geschwindigkeit:
![]()
![]()
![]()
![]()
![]()
Allgemeine BEWERTUNG:
![]()
![]()
![]()
![]()
![]()
08/03/2016, By Budi Farianto
08/03/2016, By Budi Farianto
The goods is good
Der Preis:
![]()
![]()
![]()
![]()
![]()
Qualität:
![]()
![]()
![]()
![]()
![]()
Leicht:
![]()
![]()
![]()
![]()
![]()
BEI der Geschwindigkeit:
![]()
![]()
![]()
![]()
![]()
Allgemeine BEWERTUNG:
![]()
![]()
![]()
![]()
![]()
08/03/2016, By Budi Farianto
08/03/2016, By Budi Farianto
The goods is great
Der Preis:
![]()
![]()
![]()
![]()
![]()
Qualität:
![]()
![]()
![]()
![]()
![]()
Leicht:
![]()
![]()
![]()
![]()
![]()
BEI der Geschwindigkeit:
![]()
![]()
![]()
![]()
![]()
Allgemeine BEWERTUNG:
![]()
![]()
![]()
![]()
![]()
08/03/2016, By Budi Farianto
08/03/2016, By Budi Farianto
The goods is great
Der Preis:
![]()
![]()
![]()
![]()
![]()
Qualität:
![]()
![]()
![]()
![]()
![]()
Leicht:
![]()
![]()
![]()
![]()
![]()
BEI der Geschwindigkeit:
![]()
![]()
![]()
![]()
![]()
Allgemeine BEWERTUNG:
![]()
![]()
![]()
![]()
![]()
08/03/2016, By Budi Farianto
08/03/2016, By Budi Farianto
The goods is great
Der Preis:
![]()
![]()
![]()
![]()
![]()
Qualität:
![]()
![]()
![]()
![]()
![]()
Leicht:
![]()
![]()
![]()
![]()
![]()
BEI der Geschwindigkeit:
![]()
![]()
![]()
![]()
![]()
Allgemeine BEWERTUNG:
![]()
![]()
![]()
![]()
![]()
08/03/2016, By Budi Farianto
08/03/2016, By Budi Farianto
The goods is great
Der Preis:
![]()
![]()
![]()
![]()
![]()
Qualität:
![]()
![]()
![]()
![]()
![]()
Leicht:
![]()
![]()
![]()
![]()
![]()
BEI der Geschwindigkeit:
![]()
![]()
![]()
![]()
![]()
Allgemeine BEWERTUNG:
![]()
![]()
![]()
![]()
![]()
08/03/2016, By Budi Farianto
08/03/2016, By Budi Farianto
The good is good
Der Preis:
![]()
![]()
![]()
![]()
![]()
Qualität:
![]()
![]()
![]()
![]()
![]()
Leicht:
![]()
![]()
![]()
![]()
![]()
BEI der Geschwindigkeit:
![]()
![]()
![]()
![]()
![]()
Allgemeine BEWERTUNG:
![]()
![]()
![]()
![]()
![]()
08/03/2016, By Budi Farianto
08/03/2016, By Budi Farianto
The goods is good
G104X1-L04 Rev.C1 Zusammenfassung
The G104X1-L04 is a 10.4-inch industrial TFT-LCD module by Innolux (formerly Chimei) with XGA resolution (1024×768) . It features a Super MVA display for wide viewing angles (88/88/88/88) , a high brightness of 500 cd/m² , and a contrast ratio of 1000:1 . Its robust construction supports a wide operating temperature of -30 ~ 70 °C and uses an LVDS (1 ch, 6/8-bit) interface with a 3.3V power supply , making it suited for demanding industrial applications . The panel employs a WLED backlight with a 50,000-hour lifespan .
