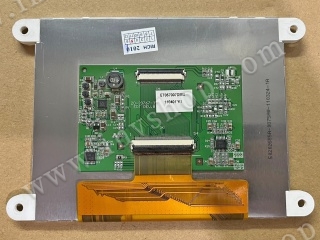

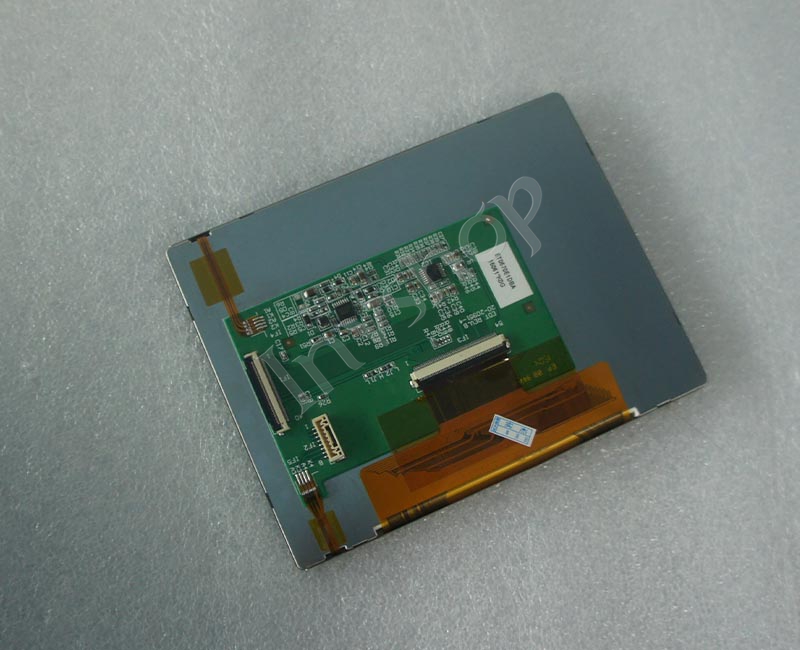

ET057010DHU 5.7-Zoll-Industrie-LCD-Display
The EDT ET057010DHU is a 5.7-inch industrial TFT-LCD module with 640x480 VGA resolution, 400 cd/m² brightness, and a 4-wire resistive touch screen.
Der Preis: €131.28 €127.66 / Mitglied
WINNI (HK) ELECTRONIC CO., LIMITED
+86-13827441621
Produkte Klassifizierung
- Industrie-LCD-Display
-
Industrial Products
- DC Servo Drive
- AC Servo Drive
- other
- Heidelberg
- FANUC
- IFM
- Meter
- CCD
- Membrane Keypad
- Film
- YOKOGAWA
- Card
- ABB
- MITSUBISHI
- FANUC
- KEYENCE
- BECKHOFF
- Honeywell
- HOLLYSYS
- FUJI servo drives
- HP
- solenoid valve
- thermostat
- Siemens adapter
- color oscilloscope
- Fujitsu connector
- CHELIC
- SMC
- CISCO
- INTEL
- Key board
- FAIRCHILD
- Der Aufsichtsrat
- Board
- Bearing
- other
- Control Panel
- Contactor
- Circuit
- Omron
- Relais.
- Der controller
- Optoelektronische schalter
- Optoelektronische sensoren
- Original
- Fan
- Motortreiber
- Endschalter
- Verstärker
- power supply
- LENZE
- Cable
- Encoder
- Sensor
- Transformator
- Fiber Optic Sensor
- Schutzrelais
- Temperaturregler
- Näherungsschalter
- Switch Sensor
- Siemens
- PCB
- HMI Touch-Glas
-
HMI-Vollautomat Ganze Einheit
- OMRON HMI Touch Panel
- Siemens HMI Touch Panel
- Mitsubishi HMI Touch Panel
- Allen-Bradley Automatisierung HMI Touch
- DELTA HMI Touch Panel
- EVIEW DELTA HMI Touch Panel
- KINCO DELTA HMI Touch Panel
- HITECH HMI Touch Panel
- WEINTECK HMI Touch Panel
- TECVIEW HMI Touch Panel
- WEINVIEW HMI Touch Panel
- PRO-FACE HMI Touch Panel
- SIMATIC HMI Touch Panel
- AMPIRE HMI Touch Panel
- HEIDELBERG HMI Touch Panel
- PANASONIC HMI Touch Panel
- PATLITE HMI Touch Panel
- KYOCERA HMI Touch Panel
- KEYENCE HMI Touch Panel
- WEINVIEW HMI Touch Panel
- HITECH HMI Touch Panel
- FUJI HMI Touch Panel
- HAKKO HMI Touch Panel
- SCHNEIDER HMI Touch Panel
- SAMKOON touch panel
- andere
- Module
- LCD Wechselrichter
- Membran Tastenfeld Schalter
- Winni Touch Screens
- Frequenzumrichter
- Servo Motor
- PLC
ET057010DHU Datasheets Download
Name: ET057010DHU.pdfTyp
LCD Panel
Marke
EDT
Modell
ET057010DHU
| Brand | EDT |
| Model | ET057010DHU |
| Panel-type | a-Si TFT-LCD, LCM |
| Size | 5.7" |
| Resolution | 640(RGB)×480 (VGA) |
| Aspect Ratio | 4:3 (H:V) |
| Dot Pitch(mm) |
0.060×0.180 mm (H×V) |
| Pixel Pitch(mm) | 0.180×0.180 mm (H×V) |
| Display Area |
115.2×86.4 mm (H×V) |
| Bezel Opening |
117.2×88.4 mm (H×V) |
| Outline Size |
147.6×100 mm (H×V) |
| Surface | Landscape type |
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 350 cd/m² (Typ.) |
| Contrast Ratio | 400:1 (Typ.) (TM) |
| Response Time | 15/35 (Typ.)(Tr/Td) |
| Viewing Angle | 65/65/55/52 (Typ.)(CR≥10) |
| Best View on | 12 o'clock |
| Display Colors | 16.7M |
| Frequency | - |
| Lamp Type | 9S2P WLED , 40K hours , With LED Driver |
| Signal Interface | Parallel RGB (1 ch, 8-bit) , 40 pins Connector |
| Touch Screen | 4-wire Resistive Touch |
| Input Voltage | 3.3/3.3V (Typ.)(VCC/VDD) |
| Operating Temp | -10 ~ 60 °C |
| Storage | -20 ~ 70 °C |
| Brand | EDT |
| Model | ET057010DHU |
| Panel-type | a-Si TFT-LCD, LCM |
| Size | 5.7" |
| Resolution | 640(RGB)×480 (VGA) |
| Aspect Ratio | 4:3 (H:V) |
| Dot Pitch(mm) |
0.060×0.180 mm (H×V) |
| Pixel Pitch(mm) | 0.180×0.180 mm (H×V) |
| Display Area |
115.2×86.4 mm (H×V) |
| Bezel Opening |
117.2×88.4 mm (H×V) |
| Outline Size |
147.6×100 mm (H×V) |
| Surface | Landscape type |
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 350 cd/m² (Typ.) |
| Contrast Ratio | 400:1 (Typ.) (TM) |
| Response Time | 15/35 (Typ.)(Tr/Td) |
| Viewing Angle | 65/65/55/52 (Typ.)(CR≥10) |
| Best View on | 12 o'clock |
| Display Colors | 16.7M |
| Frequency | - |
| Lamp Type | 9S2P WLED , 40K hours , With LED Driver |
| Signal Interface | Parallel RGB (1 ch, 8-bit) , 40 pins Connector |
| Touch Screen | 4-wire Resistive Touch |
| Input Voltage | 3.3/3.3V (Typ.)(VCC/VDD) |
| Operating Temp | -10 ~ 60 °C |
| Storage | -20 ~ 70 °C |
Die kunden.:
Der Preis:
![]()
![]()
![]()
![]()
![]()
Qualität:
![]()
![]()
![]()
![]()
![]()
Leicht:
![]()
![]()
![]()
![]()
![]()
BEI der Geschwindigkeit:
![]()
![]()
![]()
![]()
![]()
Allgemeine BEWERTUNG:
![]()
![]()
![]()
![]()
![]()
04/20/2024, By
04/20/2024, By
Great
Der Preis:
![]()
![]()
![]()
![]()
![]()
Qualität:
![]()
![]()
![]()
![]()
![]()
Leicht:
![]()
![]()
![]()
![]()
![]()
BEI der Geschwindigkeit:
![]()
![]()
![]()
![]()
![]()
Allgemeine BEWERTUNG:
![]()
![]()
![]()
![]()
![]()
04/20/2024, By
04/20/2024, By
Great deal! Would buy from again
Der Preis:
![]()
![]()
![]()
![]()
![]()
Qualität:
![]()
![]()
![]()
![]()
![]()
Leicht:
![]()
![]()
![]()
![]()
![]()
BEI der Geschwindigkeit:
![]()
![]()
![]()
![]()
![]()
Allgemeine BEWERTUNG:
![]()
![]()
![]()
![]()
![]()
04/20/2024, By
04/20/2024, By
Excellent, many thanks
Der Preis:
![]()
![]()
![]()
![]()
![]()
Qualität:
![]()
![]()
![]()
![]()
![]()
Leicht:
![]()
![]()
![]()
![]()
![]()
BEI der Geschwindigkeit:
![]()
![]()
![]()
![]()
![]()
Allgemeine BEWERTUNG:
![]()
![]()
![]()
![]()
![]()
04/20/2024, By
04/20/2024, By
NO PROBLEM. GOOD WORK
Der Preis:
![]()
![]()
![]()
![]()
![]()
Qualität:
![]()
![]()
![]()
![]()
![]()
Leicht:
![]()
![]()
![]()
![]()
BEI der Geschwindigkeit:
![]()
![]()
![]()
![]()
![]()
Allgemeine BEWERTUNG:
![]()
![]()
![]()
![]()
04/20/2024, By
04/20/2024, By
Fast delivery
Der Preis:
![]()
![]()
![]()
![]()
![]()
Qualität:
![]()
![]()
![]()
![]()
![]()
Leicht:
![]()
![]()
![]()
![]()
![]()
BEI der Geschwindigkeit:
![]()
![]()
![]()
![]()
![]()
Allgemeine BEWERTUNG:
![]()
![]()
![]()
![]()
![]()
04/20/2024, By
04/20/2024, By
Worked Great
Der Preis:
![]()
![]()
![]()
![]()
![]()
Qualität:
![]()
![]()
![]()
![]()
![]()
Leicht:
![]()
![]()
![]()
![]()
![]()
BEI der Geschwindigkeit:
![]()
![]()
![]()
![]()
![]()
Allgemeine BEWERTUNG:
![]()
![]()
![]()
![]()
![]()
04/20/2024, By
04/20/2024, By
Good quality products
Der Preis:
![]()
![]()
![]()
![]()
![]()
Qualität:
![]()
![]()
![]()
![]()
![]()
Leicht:
![]()
![]()
![]()
![]()
![]()
BEI der Geschwindigkeit:
![]()
![]()
![]()
![]()
![]()
Allgemeine BEWERTUNG:
![]()
![]()
![]()
![]()
![]()
04/20/2024, By
04/20/2024, By
good
Der Preis:
![]()
![]()
![]()
![]()
![]()
Qualität:
![]()
![]()
![]()
![]()
![]()
Leicht:
![]()
![]()
![]()
![]()
![]()
BEI der Geschwindigkeit:
![]()
![]()
![]()
![]()
![]()
Allgemeine BEWERTUNG:
![]()
![]()
![]()
![]()
![]()
04/20/2024, By
04/20/2024, By
item as described and packaged well
Der Preis:
![]()
![]()
![]()
![]()
![]()
Qualität:
![]()
![]()
![]()
![]()
![]()
Leicht:
![]()
![]()
![]()
![]()
![]()
BEI der Geschwindigkeit:
![]()
![]()
![]()
![]()
Allgemeine BEWERTUNG:
![]()
![]()
![]()
![]()
04/20/2024, By
04/20/2024, By
Order received in good condition. Would definitely use this seller again for any future orders.
ET057010DHU Zusammenfassung
The EDT ET057010DHU is a 5.7-inch TN TFT-LCD module designed for industrial computing and Human Machine Interface (HMI) applications. Its key specifications include a VGA resolution (640x480), a brightness of 400 cd/m², and a contrast ratio of 350:1. It supports 16.7 million colors and features a 4-wire resistive touch screen. The module operates on a 3.3V supply, uses a 40-pin Parallel RGB interface, and is rated for a wide temperature range of -10°C to 60°C.
