Consumption Low Power 10.1 Chimei LCD Display HJ101NA-02C

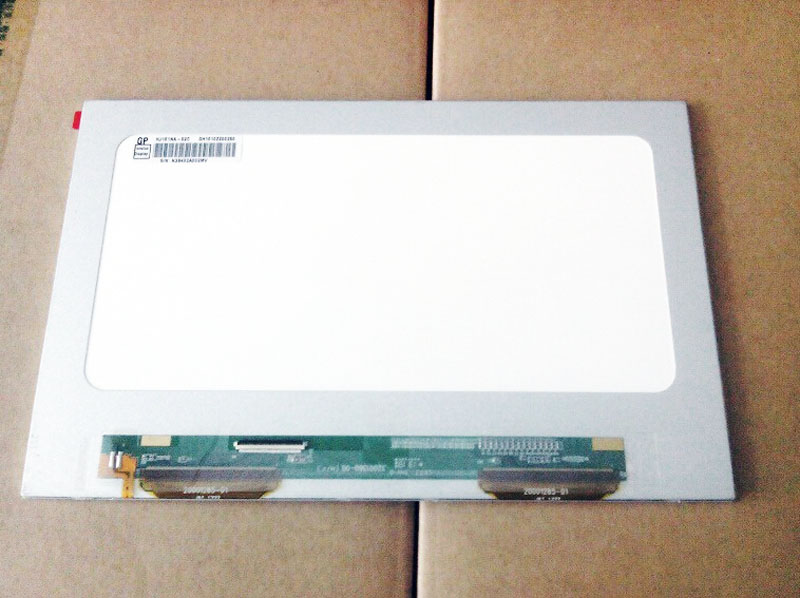

The Innolux HJ101NA-02C is a 10.1-inch a-Si TFT-LCD module with WXGA resolution (1280x800). It features 250 cd/m² brightness, 700:1 contrast ratio, TN technology (75° viewing angles), and an LVDS interface, ideal for tablets .
Price: $28.00 $24.00 / piece
WINNI (HK) ELECTRONIC CO., LIMITED
Invshop168
All Categories
- Industrial LCD display
-
Industrial Products
- DC Servo Drive
- AC Servo Drive
- other
- Heidelberg
- FANUC
- IFM
- Meter
- CCD
- Membrane Keypad
- Film
- YOKOGAWA Module
- Card
- ABB
- MITSUBISHI
- FANUC
- KEYENCE
- BECKHOFF
- Honeywell
- HOLLYSYS
- FUJI servo drives
- HP
- solenoid valve
- thermostat
- Siemens adapter
- color oscilloscope
- Fujitsu connector
- CHELIC
- SMC
- CISCO Module
- INTEL
- Key board
- FAIRCHILD
- Motherboard
- Board
- Bearing
- other
- Control Panel
- Contactor
- Circuit
- OMRON
- Relay
- Controller
- Photoelectric Switch
- Photoelectric Sensor
- Original
- Fan
- Motor Driver
- Limit Switch
- Amplifier
- power supply
- LENZE
- Cable
- Encoder
- Sensor
- Transformer
- Fiber Optic Sensor
- Protection Relay
- Temperature Controller
- Proximity Switch
- Switch Sensor
- Siemens
- Industrial board
- HMI Touch Glass
-
HMI Full Machine Whole unit
- OMRON HMI Touch Panel
- Siemens HMI Touch Panel
- Mitsubishi HMI Touch Panel
- Allen-Bradley automation HMI Touch Panel
- DELTA HMI Touch Panel
- EVIEW DELTA HMI Touch Panel
- KINCO DELTA HMI Touch Panel
- HITECH HMI Touch Panel
- WEINTECK HMI Touch Panel
- TECVIEW HMI Touch Panel
- WEINVIEW HMI Touch Panel
- PRO-FACE HMI Touch Panel
- SIMATIC HMI Touch Panel
- AMPIRE HMI Touch Panel
- HEIDELBERG HMI Touch Panel
- PANASONIC HMI Touch Panel
- PATLITE HMI Touch Panel
- KYOCERA HMI Touch Panel
- KEYENCE HMI Touch Panel
- WEINVIEW HMI Touch Panel
- HITECH HMI Touch Panel
- FUJI HMI Touch Panel
- HAKKO HMI Touch Panel
- SCHNEIDER HMI Touch Panel
- SAMKOON touch panel
- other
- Module
- lcd inverter
- Membrane Keypad Switch
- Winni Touch Screens
- Frequency Inverter
- Servo Motor
- PLC
HJ101NA-02C Datasheets Download
Name: HJ101NA-02C.pdfType
LCD PANEL
Brand
Innolux
Model
HJ101NA-02C
Detailed Product Description
| Model | HJ101NA-02C | Brand | CHIMEI INNOLUX | ||||||
| Panel Size | 10.1 inch | Panel Type | a-Si TFT-LCD, Panel | ||||||
| Resolution | 1280(RGB)*800, WXGA | Display Mode | TN, Normally White, Transmissive | ||||||
| Active Area | 216.96*135.60 mm | Outline | 229.46*149.1*3.4 mm | ||||||
| Brightness | 250cd/m² (Typ.) | Signal Interface | LVDS (1 ch, 6/8-bit) | ||||||
| Contrast Ratio | 700 : 1 (Typ.) | Input Voltage | 3.3/11.0/20.0/-6.8V (Typ.) | ||||||
| Response Time | 10/15 (Typ.) (Tr/Td) | Lamp Current | 240/260mA (Typ./Max.) | ||||||
| About it | Consumption Low Power 10.1 Chimei LCD Display HJ101NA-02C | ||||||||
Detailed Product Description
| Model | HJ101NA-02C | Brand | CHIMEI INNOLUX | ||||||
| Panel Size | 10.1 inch | Panel Type | a-Si TFT-LCD, Panel | ||||||
| Resolution | 1280(RGB)*800, WXGA | Display Mode | TN, Normally White, Transmissive | ||||||
| Active Area | 216.96*135.60 mm | Outline | 229.46*149.1*3.4 mm | ||||||
| Brightness | 250cd/m² (Typ.) | Signal Interface | LVDS (1 ch, 6/8-bit) | ||||||
| Contrast Ratio | 700 : 1 (Typ.) | Input Voltage | 3.3/11.0/20.0/-6.8V (Typ.) | ||||||
| Response Time | 10/15 (Typ.) (Tr/Td) | Lamp Current | 240/260mA (Typ./Max.) | ||||||
| About it | Consumption Low Power 10.1 Chimei LCD Display HJ101NA-02C | ||||||||
| Return Policy 1.Please contact us within 7 days if you have any question after you receiving the items. 2.The returned items has to be in its original condition and you must provide ue with the shipping tracking number,specific reason for the return,We will issue a return or replacement for your oder after we received the returns. Feedback Your positive 5 stars feedback will be highly appreciated.Thanks for your time. If you are not satisfied with items,please contact us before leaving a negative feedback.We will work with you until you are satisfied. |
Testing
Packaging
Customer's Reviews:
Price:
![]()
![]()
![]()
![]()
![]()
Quality:
![]()
![]()
![]()
![]()
![]()
Ease of use:
![]()
![]()
![]()
![]()
![]()
Delivery speed:
![]()
![]()
![]()
![]()
![]()
OverALL Rating:
![]()
![]()
![]()
![]()
![]()
04/20/2024, By
04/20/2024, By
Great
Price:
![]()
![]()
![]()
![]()
![]()
Quality:
![]()
![]()
![]()
![]()
![]()
Ease of use:
![]()
![]()
![]()
![]()
![]()
Delivery speed:
![]()
![]()
![]()
![]()
![]()
OverALL Rating:
![]()
![]()
![]()
![]()
![]()
04/20/2024, By
04/20/2024, By
Great deal! Would buy from again
Price:
![]()
![]()
![]()
![]()
![]()
Quality:
![]()
![]()
![]()
![]()
![]()
Ease of use:
![]()
![]()
![]()
![]()
![]()
Delivery speed:
![]()
![]()
![]()
![]()
![]()
OverALL Rating:
![]()
![]()
![]()
![]()
![]()
04/20/2024, By
04/20/2024, By
Excellent, many thanks
Price:
![]()
![]()
![]()
![]()
![]()
Quality:
![]()
![]()
![]()
![]()
![]()
Ease of use:
![]()
![]()
![]()
![]()
![]()
Delivery speed:
![]()
![]()
![]()
![]()
![]()
OverALL Rating:
![]()
![]()
![]()
![]()
![]()
04/20/2024, By
04/20/2024, By
NO PROBLEM. GOOD WORK
Price:
![]()
![]()
![]()
![]()
![]()
Quality:
![]()
![]()
![]()
![]()
![]()
Ease of use:
![]()
![]()
![]()
![]()
Delivery speed:
![]()
![]()
![]()
![]()
![]()
OverALL Rating:
![]()
![]()
![]()
![]()
04/20/2024, By
04/20/2024, By
Fast delivery
Price:
![]()
![]()
![]()
![]()
![]()
Quality:
![]()
![]()
![]()
![]()
![]()
Ease of use:
![]()
![]()
![]()
![]()
![]()
Delivery speed:
![]()
![]()
![]()
![]()
![]()
OverALL Rating:
![]()
![]()
![]()
![]()
![]()
04/20/2024, By
04/20/2024, By
Worked Great
Price:
![]()
![]()
![]()
![]()
![]()
Quality:
![]()
![]()
![]()
![]()
![]()
Ease of use:
![]()
![]()
![]()
![]()
![]()
Delivery speed:
![]()
![]()
![]()
![]()
![]()
OverALL Rating:
![]()
![]()
![]()
![]()
![]()
04/20/2024, By
04/20/2024, By
Good quality products
Price:
![]()
![]()
![]()
![]()
![]()
Quality:
![]()
![]()
![]()
![]()
![]()
Ease of use:
![]()
![]()
![]()
![]()
![]()
Delivery speed:
![]()
![]()
![]()
![]()
![]()
OverALL Rating:
![]()
![]()
![]()
![]()
![]()
04/20/2024, By
04/20/2024, By
good
Price:
![]()
![]()
![]()
![]()
![]()
Quality:
![]()
![]()
![]()
![]()
![]()
Ease of use:
![]()
![]()
![]()
![]()
![]()
Delivery speed:
![]()
![]()
![]()
![]()
![]()
OverALL Rating:
![]()
![]()
![]()
![]()
![]()
04/20/2024, By
04/20/2024, By
item as described and packaged well
Price:
![]()
![]()
![]()
![]()
![]()
Quality:
![]()
![]()
![]()
![]()
![]()
Ease of use:
![]()
![]()
![]()
![]()
![]()
Delivery speed:
![]()
![]()
![]()
![]()
OverALL Rating:
![]()
![]()
![]()
![]()
04/20/2024, By
04/20/2024, By
Order received in good condition. Would definitely use this seller again for any future orders.
HJ101NA-02C Summary
The Innolux HJ101NA-02C is a 10.1-inch a-Si TFT-LCD panel utilizing TN technology (normally white, transmissive mode) with a 12 o'clock preferred viewing direction . It delivers WXGA resolution of 1280x800 pixels (149 PPI, 16:10 aspect ratio) with 262K/16.7M colors and 250 cd/m² brightness . The module features 75/75/75/75 viewing angles (CR≥10), 700:1 contrast ratio, 10/15ms response time, and an edge-type WLED backlight (20K hours) without driver . It measures 229.46 x 149.1 x 5.5 mm, weighs 206g, has a glossy surface (Haze 0%), uses an LVDS (1 ch, 6/8-bit) interface with 40 pins, and operates at -20 to 60°C . Typical applications include tablet PCs and portable devices .
