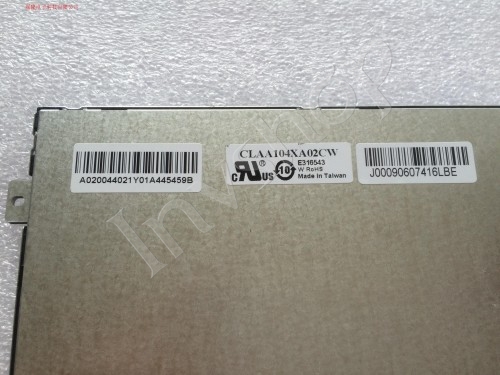

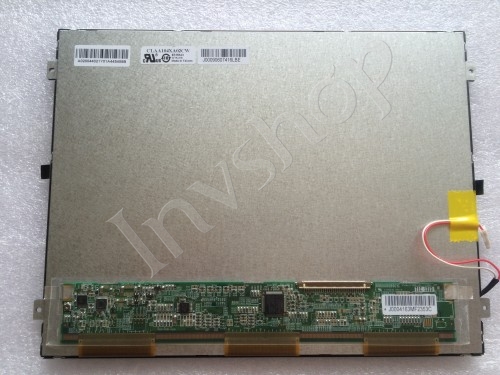

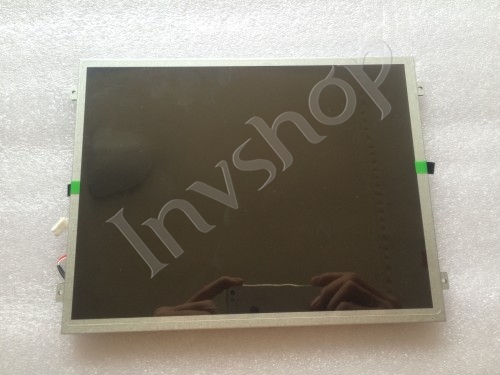

CLAA104XA02CW NEW Chunghwa 10.4"1024*768 LCD
A 10.4-inch industrial TFT-LCD module with XGA resolution (1024x768), 400-nit brightness, WLED backlight, and an LVDS interface, designed for stable operation in demanding environments.
Price: $86.00 $85.00 / piece
WINNI (HK) ELECTRONIC CO., LIMITED
Invshop168
All Categories
- Industrial LCD display
-
Industrial Products
- DC Servo Drive
- AC Servo Drive
- other
- Heidelberg
- FANUC
- IFM
- Meter
- CCD
- Membrane Keypad
- Film
- YOKOGAWA Module
- Card
- ABB
- MITSUBISHI
- FANUC
- KEYENCE
- BECKHOFF
- Honeywell
- HOLLYSYS
- FUJI servo drives
- HP
- solenoid valve
- thermostat
- Siemens adapter
- color oscilloscope
- Fujitsu connector
- CHELIC
- SMC
- CISCO Module
- INTEL
- Key board
- FAIRCHILD
- Motherboard
- Board
- Bearing
- other
- Control Panel
- Contactor
- Circuit
- OMRON
- Relay
- Controller
- Photoelectric Switch
- Photoelectric Sensor
- Original
- Fan
- Motor Driver
- Limit Switch
- Amplifier
- power supply
- LENZE
- Cable
- Encoder
- Sensor
- Transformer
- Fiber Optic Sensor
- Protection Relay
- Temperature Controller
- Proximity Switch
- Switch Sensor
- Siemens
- Industrial board
- HMI Touch Glass
-
HMI Full Machine Whole unit
- OMRON HMI Touch Panel
- Siemens HMI Touch Panel
- Mitsubishi HMI Touch Panel
- Allen-Bradley automation HMI Touch Panel
- DELTA HMI Touch Panel
- EVIEW DELTA HMI Touch Panel
- KINCO DELTA HMI Touch Panel
- HITECH HMI Touch Panel
- WEINTECK HMI Touch Panel
- TECVIEW HMI Touch Panel
- WEINVIEW HMI Touch Panel
- PRO-FACE HMI Touch Panel
- SIMATIC HMI Touch Panel
- AMPIRE HMI Touch Panel
- HEIDELBERG HMI Touch Panel
- PANASONIC HMI Touch Panel
- PATLITE HMI Touch Panel
- KYOCERA HMI Touch Panel
- KEYENCE HMI Touch Panel
- WEINVIEW HMI Touch Panel
- HITECH HMI Touch Panel
- FUJI HMI Touch Panel
- HAKKO HMI Touch Panel
- SCHNEIDER HMI Touch Panel
- SAMKOON touch panel
- other
- Module
- lcd inverter
- Membrane Keypad Switch
- Winni Touch Screens
- Frequency Inverter
- Servo Motor
- PLC
CLAA104XA02CW Datasheets Download
Name: CLAA104XA02CW.pdfType
LCD display panel
Brand
CPT
Model
CLAA104XA02CW
| Model: | CLAA104XA02CW | Panel-type: | TFT-LCD, LCM |
| Size: | 10.4 inch | Resolution: | 1024(RGB)×768 (XGA) 123PPI |
| Display Area: | 211.2 × 158.4 (H×V) | Outline Size: | 236 × 174.3 × 7.4 (H×V×D) |
| Brightness: | 400 cd/m² (Typ.) | Contrast Ratio: | 500:1 (Typ.) (TM) |
| Viewing Angle: | 70/70/60/80 (Typ.)(CR≥10) | Display Mode: | TN, Normally White, Transmissive |
| Display Colors: | Color 47% NTSC | Response Time: | 25 (Typ.)(Tr+Td) ms |
| Signal Interface: | LVDS (1 ch, 6-bit) , Connector 30 pins | Backlight type: | 3S13P WLED , 30K hours , No Driver |
| Touch Screen: | without | Operating Temp.: | -20 ~ 70 °C |
| Model: | CLAA104XA02CW | Panel-type: | TFT-LCD, LCM |
| Size: | 10.4 inch | Resolution: | 1024(RGB)×768 (XGA) 123PPI |
| Display Area: | 211.2 × 158.4 (H×V) | Outline Size: | 236 × 174.3 × 7.4 (H×V×D) |
| Brightness: | 400 cd/m² (Typ.) | Contrast Ratio: | 500:1 (Typ.) (TM) |
| Viewing Angle: | 70/70/60/80 (Typ.)(CR≥10) | Display Mode: | TN, Normally White, Transmissive |
| Display Colors: | Color 47% NTSC | Response Time: | 25 (Typ.)(Tr+Td) ms |
| Signal Interface: | LVDS (1 ch, 6-bit) , Connector 30 pins | Backlight type: | 3S13P WLED , 30K hours , No Driver |
| Touch Screen: | without | Operating Temp.: | -20 ~ 70 °C |
Quality Assurance:
Quality is our culture!
We will take each customer's order seriously and responsibly.
Each item will be tested ok by testing tools before shipment .
Warranty of Products:
90days for new products ,60days for secondhand products.
After you receive the parcel , remember to install it on your equipment in time .
If there is any problems in warranty period , pls contact us firstly, we will solve the problems for customer.
Guarantee of delivery:
Time is money!
It will take 1 working day for stock products , 2-3 working days for order products.
If there are special circumstances on delivery time, we will inform customer in time.
Service Guarantee:
We have a professional pre-sales and after-sales team to provide customers with good service.
we trust we will be your trustworthy supplier in china if we have a chance to serve you.
we trust we will be your trustworthy supplier in china if we have a chance to serve you.
Exchange / Return Policy:
We accept exchange or return within 7days if the goods you received has problems.
About refund, We need to check the goods whether is in the same condition we sent after we received the return, if no problems , we will refund .
About refund, We need to check the goods whether is in the same condition we sent after we received the return, if no problems , we will refund .
| Model: | CLAA104XA02CW | Panel-type: | TFT-LCD, LCM |
| Size: | 10.4 inch | Resolution: | 1024(RGB)×768 (XGA) 123PPI |
| Display Area: | 211.2 × 158.4 (H×V) | Outline Size: | 236 × 174.3 × 7.4 (H×V×D) |
| Brightness: | 400 cd/m² (Typ.) | Contrast Ratio: | 500:1 (Typ.) (TM) |
| Viewing Angle: | 70/70/60/80 (Typ.)(CR≥10) | Display Mode: | TN, Normally White, Transmissive |
| Display Colors: | Color 47% NTSC | Response Time: | 25 (Typ.)(Tr+Td) ms |
| Signal Interface: | LVDS (1 ch, 6-bit) , Connector 30 pins | Backlight type: | 3S13P WLED , 30K hours , No Driver |
| Touch Screen: | without | Operating Temp.: | -20 ~ 70 °C |
Customer's Reviews:
Price:
![]()
![]()
![]()
![]()
![]()
Quality:
![]()
![]()
![]()
![]()
![]()
Ease of use:
![]()
![]()
![]()
![]()
![]()
Delivery speed:
![]()
![]()
![]()
![]()
![]()
OverALL Rating:
![]()
![]()
![]()
![]()
![]()
04/20/2024, By
04/20/2024, By
Great
Price:
![]()
![]()
![]()
![]()
![]()
Quality:
![]()
![]()
![]()
![]()
![]()
Ease of use:
![]()
![]()
![]()
![]()
![]()
Delivery speed:
![]()
![]()
![]()
![]()
![]()
OverALL Rating:
![]()
![]()
![]()
![]()
![]()
04/20/2024, By
04/20/2024, By
Great deal! Would buy from again
Price:
![]()
![]()
![]()
![]()
![]()
Quality:
![]()
![]()
![]()
![]()
![]()
Ease of use:
![]()
![]()
![]()
![]()
![]()
Delivery speed:
![]()
![]()
![]()
![]()
![]()
OverALL Rating:
![]()
![]()
![]()
![]()
![]()
04/20/2024, By
04/20/2024, By
Excellent, many thanks
Price:
![]()
![]()
![]()
![]()
![]()
Quality:
![]()
![]()
![]()
![]()
![]()
Ease of use:
![]()
![]()
![]()
![]()
![]()
Delivery speed:
![]()
![]()
![]()
![]()
![]()
OverALL Rating:
![]()
![]()
![]()
![]()
![]()
04/20/2024, By
04/20/2024, By
NO PROBLEM. GOOD WORK
Price:
![]()
![]()
![]()
![]()
![]()
Quality:
![]()
![]()
![]()
![]()
![]()
Ease of use:
![]()
![]()
![]()
![]()
Delivery speed:
![]()
![]()
![]()
![]()
![]()
OverALL Rating:
![]()
![]()
![]()
![]()
04/20/2024, By
04/20/2024, By
Fast delivery
Price:
![]()
![]()
![]()
![]()
![]()
Quality:
![]()
![]()
![]()
![]()
![]()
Ease of use:
![]()
![]()
![]()
![]()
![]()
Delivery speed:
![]()
![]()
![]()
![]()
![]()
OverALL Rating:
![]()
![]()
![]()
![]()
![]()
04/20/2024, By
04/20/2024, By
Worked Great
Price:
![]()
![]()
![]()
![]()
![]()
Quality:
![]()
![]()
![]()
![]()
![]()
Ease of use:
![]()
![]()
![]()
![]()
![]()
Delivery speed:
![]()
![]()
![]()
![]()
![]()
OverALL Rating:
![]()
![]()
![]()
![]()
![]()
04/20/2024, By
04/20/2024, By
Good quality products
Price:
![]()
![]()
![]()
![]()
![]()
Quality:
![]()
![]()
![]()
![]()
![]()
Ease of use:
![]()
![]()
![]()
![]()
![]()
Delivery speed:
![]()
![]()
![]()
![]()
![]()
OverALL Rating:
![]()
![]()
![]()
![]()
![]()
04/20/2024, By
04/20/2024, By
good
Price:
![]()
![]()
![]()
![]()
![]()
Quality:
![]()
![]()
![]()
![]()
![]()
Ease of use:
![]()
![]()
![]()
![]()
![]()
Delivery speed:
![]()
![]()
![]()
![]()
![]()
OverALL Rating:
![]()
![]()
![]()
![]()
![]()
04/20/2024, By
04/20/2024, By
item as described and packaged well
Price:
![]()
![]()
![]()
![]()
![]()
Quality:
![]()
![]()
![]()
![]()
![]()
Ease of use:
![]()
![]()
![]()
![]()
![]()
Delivery speed:
![]()
![]()
![]()
![]()
OverALL Rating:
![]()
![]()
![]()
![]()
04/20/2024, By
04/20/2024, By
Order received in good condition. Would definitely use this seller again for any future orders.
Previous：
LCD B156XW01 NEW
CLAA104XA02CW Summary
The CLAA104XA02CW is a 10.4-inch industrial TFT-LCD module manufactured by Chunghwa Picture Tubes (CPT). Featuring XGA resolution (1024x768) and a 4:3 aspect ratio, it delivers a brightness of 400 cd/m² and a contrast ratio of 500:1. Its key industrial features include a wide operating temperature range (-20 to 70 °C), a 30,000-hour WLED backlight, and a robust LVDS interface for reliable signal transmission.
