5.7" 320*240 FSTN-LCD for EDT ER057005NC6

5.7" 320*240 FSTN-LCD for EDT ER057005NC6

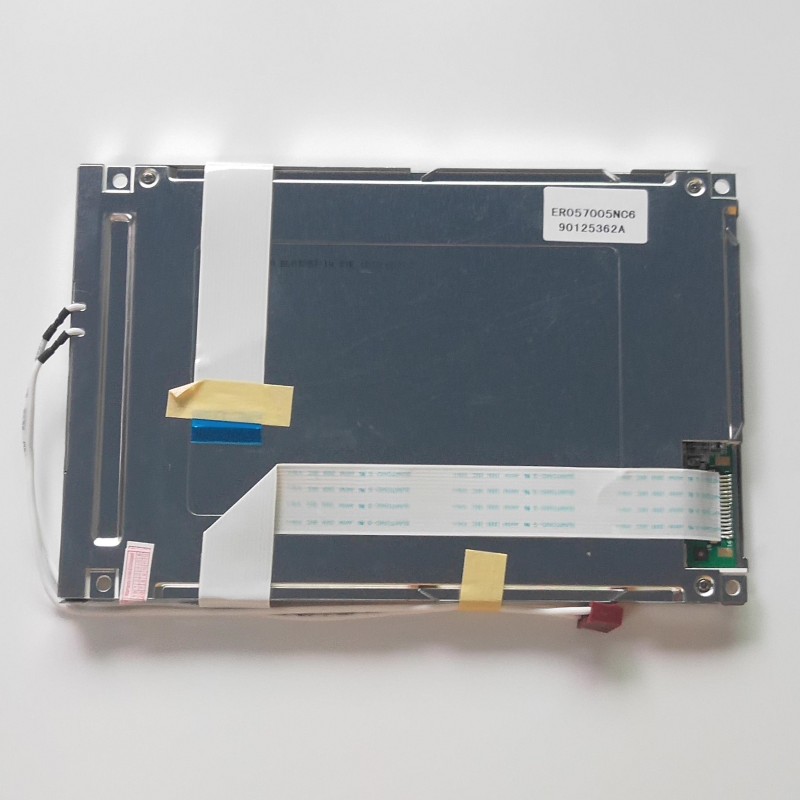

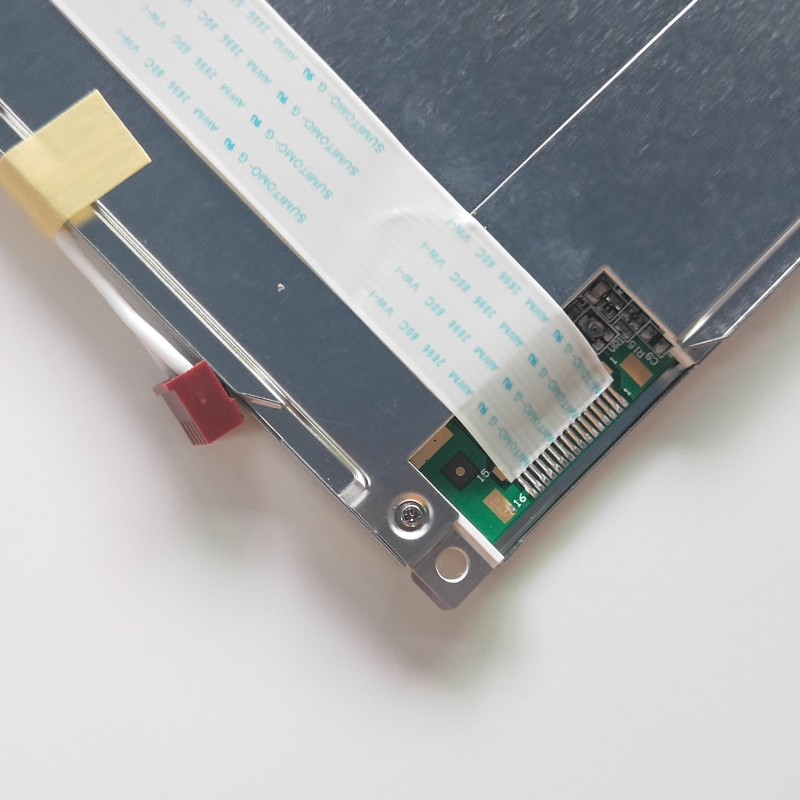

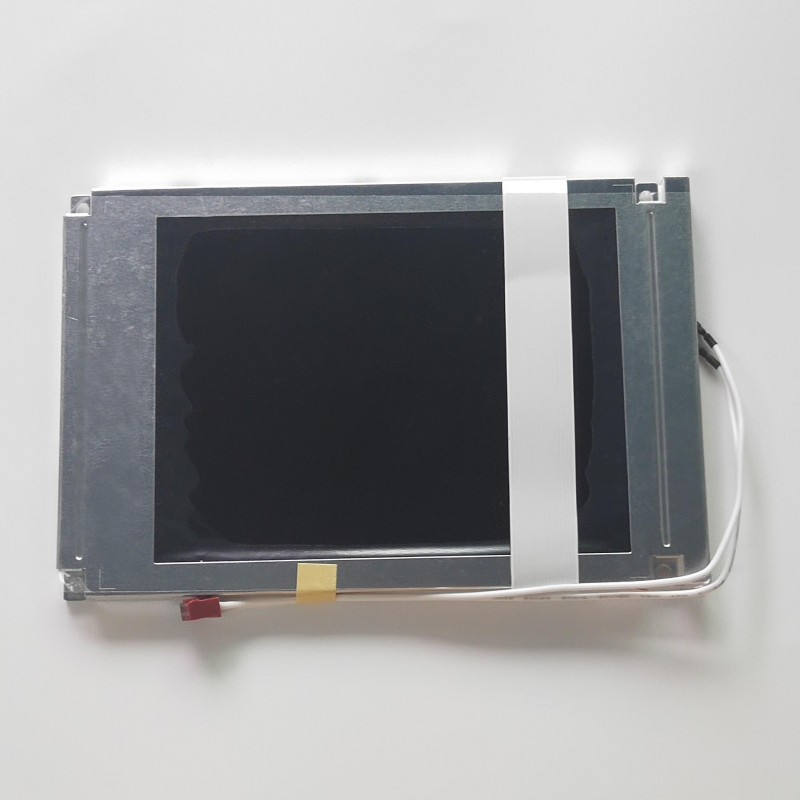

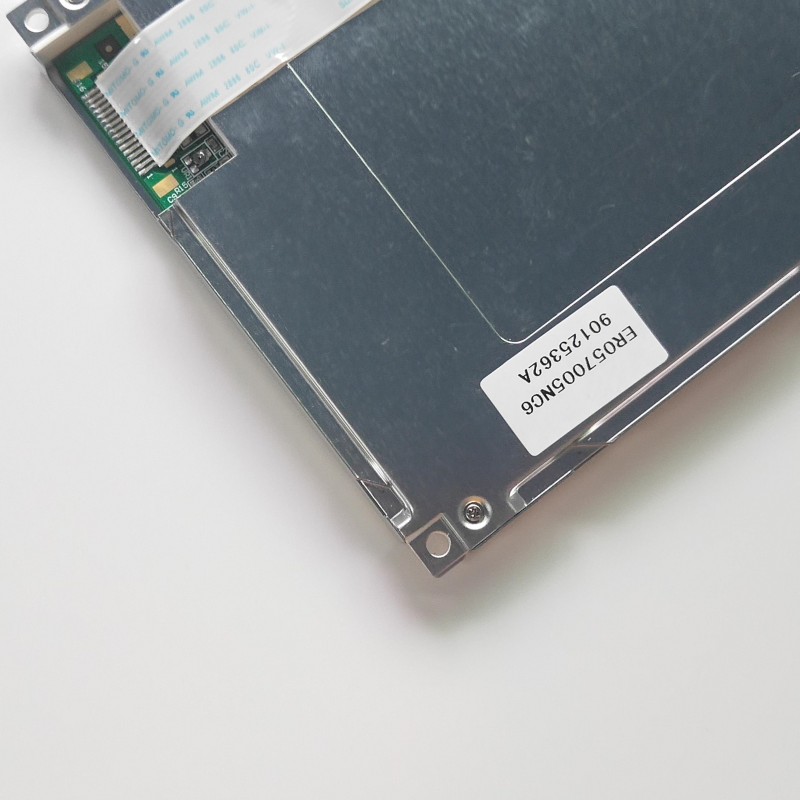

The EDT ER057005NC6 is a 5.7-inch CSTN-LCD industrial display module. It features a QVGA resolution (320x240 pixels) with a 4:3 aspect ratio, a CCFL backlight, and a 16-pin parallel interface, designed for reliable performance in industrial control applications .

Price: ~~$135.00~~ $130.00 / piece

Quantity:		Unit(s) MOQ: 1



Add to wish list

Calculate shipping price

WINNI (HK) ELECTRONIC CO., LIMITED

Invshop168

+8613827441621

winnihk88@winnihk.com

facebook:invshop@163.com

youtube:invshop-com

linked:WINNI (HK) ELECTRONIC CO., LIMITED

Require:*

Product Model*	Target price	Qty *

Message

Your contact info:

Additional info:

Name: *

Mr.

Ms.

1. Quote with shipping freight?

Email : *

YES

Phone:

2. Which carrier do you perfert?

Company:

	Fedex		UPS		DHL
	TNT		other

Country:*

All Categories

-81%
OFF

FF300R06KE3 INFINEON IGBT module

$55.00

$100.00

Products Details

Inventory Information

Seller Guarantees

Feedback

Reveiw

ER057005NC6 Datasheets Download

Name: ER057005NC6.pdf

Type

lcd panel

Brand

EDT

Model

ER057005NC6

Brand	EDT
Model	ER057005NC6
Panel-type	LCM , CSTN-LCD
Size	5.7 "
Resolution	320(RGB)×240 (QVGA)
Aspect Ratio	4:3(H : V)
Dot Pitch(mm)	0.120×0.360 mm (H×V)
Pixel Pitch(mm)	0.360×0.360 mm (H×V)
Display Area	115.2×86.4 mm (H×V)
Bezel Opening	-
Outline Size	118.18×89.38 mm (H×V)
Surface	Landscape type
Display Mode	STN, Normally Black, Transmissive
Brightness	150 cd/m² (Typ.)
Contrast Ratio	50:1 (Typ.) (TM)
Response Time	350/250 (Typ.)(Tr/Td)
Viewing Angle	40/40/20/40 (Typ.)(CR≥2)
Best View on	-
Display Colors	Color
Frequency	-
Lamp Type	CCFL [1 pcs] , 35K hours , W/O Driver
Signal Interface	16 pins Parallel Data (8-bit) , FPC
Touch Screen	Without
Input Voltage	3.3/5.0V (Typ.)(VDD)
Operating Temp	0 ~ 60 °C
Storage Temp	-20 ~ 70 °C

Brand	EDT
Model	ER057005NC6
Panel-type	LCM , CSTN-LCD
Size	5.7 "
Resolution	320(RGB)×240 (QVGA)
Aspect Ratio	4:3(H : V)
Dot Pitch(mm)	0.120×0.360 mm (H×V)
Pixel Pitch(mm)	0.360×0.360 mm (H×V)
Display Area	115.2×86.4 mm (H×V)
Bezel Opening	-
Outline Size	118.18×89.38 mm (H×V)
Surface	Landscape type
Display Mode	STN, Normally Black, Transmissive
Brightness	150 cd/m² (Typ.)
Contrast Ratio	50:1 (Typ.) (TM)
Response Time	350/250 (Typ.)(Tr/Td)
Viewing Angle	40/40/20/40 (Typ.)(CR≥2)
Best View on	-
Display Colors	Color
Frequency	-
Lamp Type	CCFL [1 pcs] , 35K hours , W/O Driver
Signal Interface	16 pins Parallel Data (8-bit) , FPC
Touch Screen	Without
Input Voltage	3.3/5.0V (Typ.)(VDD)
Operating Temp	0 ~ 60 °C
Storage Temp	-20 ~ 70 °C

Quality: test ok before ship it
RMA Policy: RMA 3 month
Quantity: 1
Sample: Paid Sample
Stock Location: China
Delivery: WorldWide
Lead Time: 3-5 Days
Price Term: T/T, Western Union, MoneyGram, PayPal, Escrow etc
Remark: NEW
Weight: 0.500Kg

Quality Assurance:

Quality is our culture!

We will take each customer's order seriously and responsibly.

Each item will be tested ok by testing tools before shipment .

Warranty of Products:

90days for new products ,60days for secondhand products.

After you receive the parcel , remember to install it on your equipment in time .

If there is any problems in warranty period , pls contact us firstly, we will solve the problems for customer.

Guarantee of delivery:

Time is money!

It will take 1 working day for stock products , 2-3 working days for order products.

If there are special circumstances on delivery time, we will inform customer in time.

Service Guarantee:

We have a professional pre-sales and after-sales team to provide customers with good service.
we trust we will be your trustworthy supplier in china if we have a chance to serve you.

Exchange / Return Policy:

We accept exchange or return within 7days if the goods you received has problems.
About refund, We need to check the goods whether is in the same condition we sent after we received the return, if no problems , we will refund .

5.7" 320*240 CSTN-LCD Display for EDT ER057005NC6

Brand	EDT
Model	ER057005NC6
Panel-type	LCM , CSTN-LCD
Size	5.7 "
Resolution	320(RGB)×240 (QVGA)
Aspect Ratio	4:3(H : V)
Dot Pitch(mm)	0.120×0.360 mm (H×V)
Pixel Pitch(mm)	0.360×0.360 mm (H×V)
Display Area	115.2×86.4 mm (H×V)
Bezel Opening	-
Outline Size	118.18×89.38 mm (H×V)
Surface	Landscape type
Display Mode	STN, Normally Black, Transmissive
Brightness	150 cd/m² (Typ.)
Contrast Ratio	50:1 (Typ.) (TM)
Response Time	350/250 (Typ.)(Tr/Td)
Viewing Angle	40/40/20/40 (Typ.)(CR≥2)
Best View on	-
Display Colors	Color
Frequency	-
Lamp Type	CCFL [1 pcs] , 35K hours , W/O Driver
Signal Interface	16 pins Parallel Data (8-bit) , FPC
Touch Screen	Without
Input Voltage	3.3/5.0V (Typ.)(VDD)
Operating Temp	0 ~ 60 °C
Storage Temp	-20 ~ 70 °C

Customer's Reviews:

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

Great

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

Great deal! Would buy from again

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

Excellent, many thanks

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

NO PROBLEM. GOOD WORK

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

Fast delivery

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

Worked Great

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

Good quality products

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

good

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

item as described and packaged well

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

Order received in good condition. Would definitely use this seller again for any future orders.

<<12 3 4 5 6 7...15>>

Previous： EW50367NCW 5.7 inch 320*240 FSTN-LCD FOR EDT

Next： None

ER057005NC6 Summary

The ER057005NC6 is a 5.7" CSTN-LCD module by EDT, designed for industrial HMIs and control panels. It offers QVGA resolution (320x240), 150 cd/m² brightness, and a 50:1 contrast ratio . The display utilizes a durable CCFL backlight with a 35k-hour lifespan and a straightforward 8-bit parallel interface, ensuring reliable operation within a 0 to 60°C range .
