3RG6233-3JS00-PF Sensor Module highly protective Quality product Quality supplier

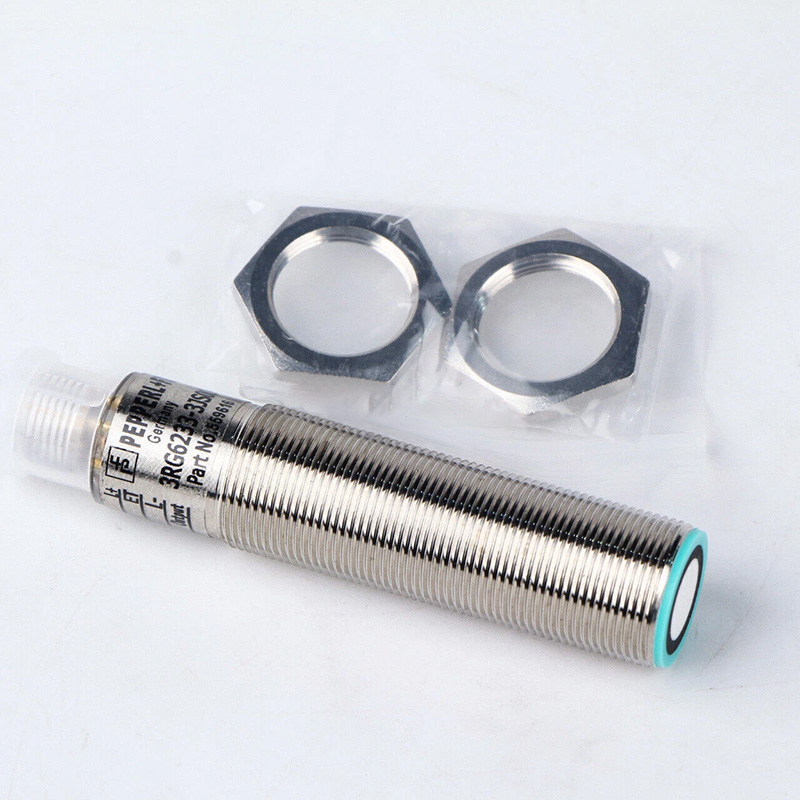

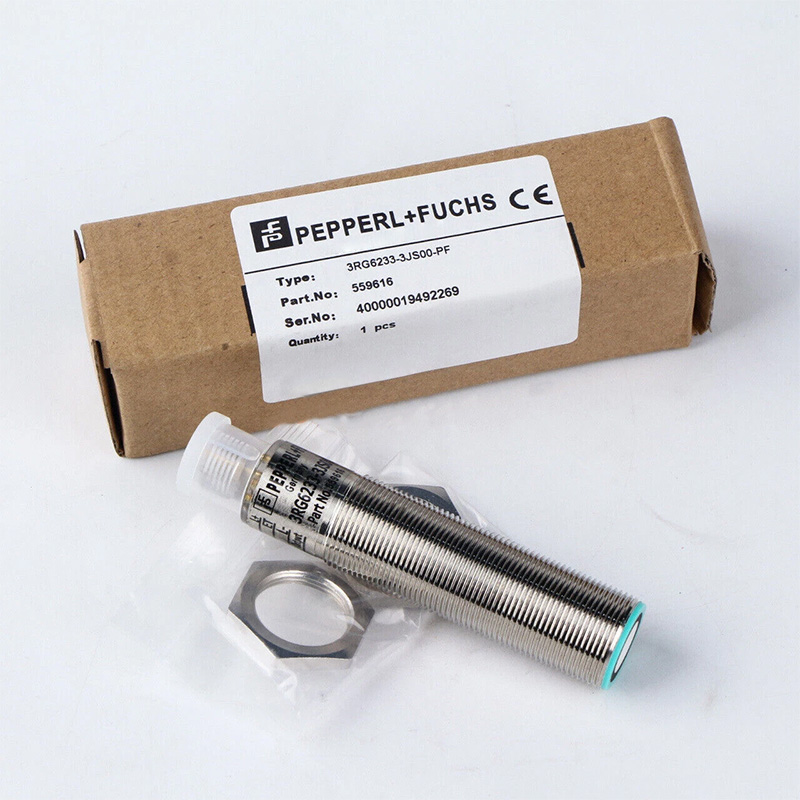

1、3RG6233-3JS00-PF Product picture

2、3RG6233-3JS00-PF Core advantage

· High-precision measurement:

The resolution is up to 0.1mm, and the millimeter-level accuracy can be achieved in the range of 150mm to 1000mm. It is suitable for scenarios such as precision positioning and sorting of tiny parts.

· Anti-interference design:

Support the TEACH-IN function, and the width of the sound cone can be adjusted to shield background interference and avoid false triggering; temperature compensation technology can correct the error of the speed of sound with temperature, ensuring stable measurement over a wide temperature range of -25℃ to +70℃.

· Flexible output mode:

It provides dual-mode outputs of analog (0-10V DC) and switching (NPN/PNP), which are suitable for PLC, DCS and other control systems to meet the continuous distance value or threshold trigger requirements.

· Strong environmental adaptability:

IP67 protection level is dustproof and waterproof, the M12 4-pin connector supports fast plug-in and unplugging, and the wide voltage range of 10-30V DC is compatible with most industrial power supplies, and it is suitable for harsh environments such as humidity and dust.

· Industrial-grade reliability:

The sturdy shell is designed with anti-aging materials, anti-vibration and shock resistance, long-term stable operation, reduced maintenance costs, and guaranteed equipment reliability.
